7-38
E
– +
ELEC
STARTING SYSTEM
STARTER RELAY
1. Inspect:
• Brown lead terminal
• Black lead terminal
Loose
→
Tighten.
2. Check:
• Starter relay
Faulty
→
Replace.

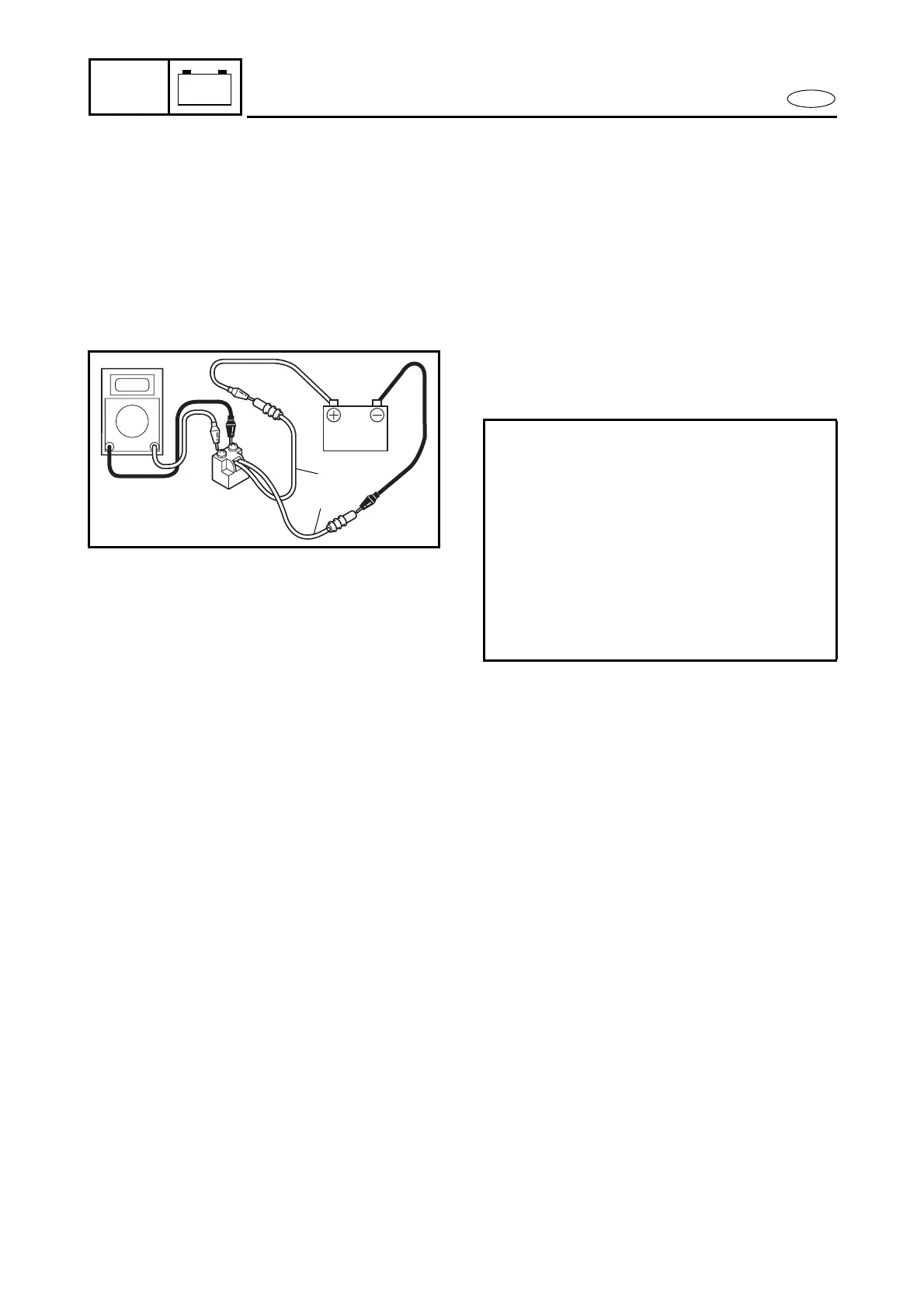

Checking steps:
• Connect the tester leads between the
starter relay terminals as shown.
• Connect the brown lead terminal to the
positive battery terminal.
• Connect the black lead terminal to the
negative battery terminal.
• Check that there is continuity between
the starter relay terminals.
• Check that there is no continuity after the
brown or black lead is removed.
Br
B
REMOTE CONTROL UNIT
(DELUXE MODEL ONLY)
Refer to “REMOTE CONTROL SYS-
TEM (DELUXE MODEL ONLY)”.
THROTTLE POSITION SENSOR
Refer to “IGNITION SYSTEM”.
ACCELERATOR POSITION SENSOR
Refer to “IGNITION SYSTEM”.
