11. Install the engine oil drain bolts, engine oil
tank drain bolt, oil cooler drain bolts and
their new gaskets, and then tighten the
bolts to the specified torques.
12. Add 1.50 L (1.59 US qt, 1.32 Imp.qt) of
the recommended engine oil to the en-
gine oil filler hole on the cylinder head.
13. Add 2.05 L (2.17 US qt, 1.8 Imp.qt) of the
recommended engine oil to the oil tank.
14. Check the O-rings for damage, and re-
place them if necessary.
15. Install and tighten the engine oil tank filler
cap and the cylinder head cap.
16. Start the engine, warm it up for several
minutes.

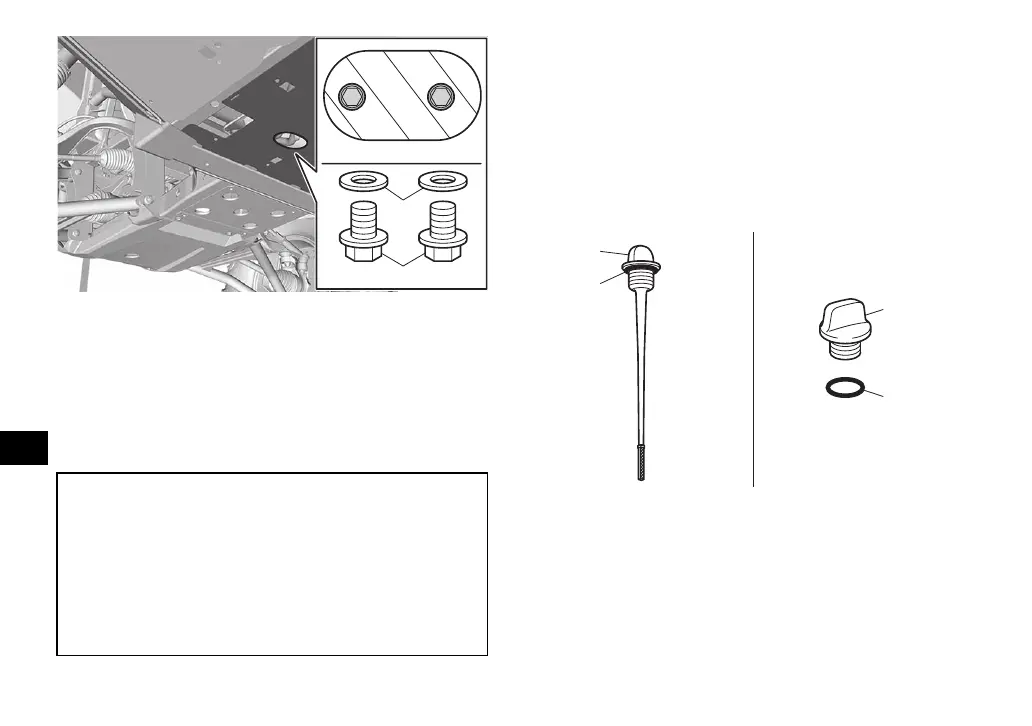

1. Oil cooler drain bolt
2. Gasket
Tightening torques:
Engine oil drain bolt:
20 N·m (2.0 kgf·m, 15 lb·ft)
Engine oil tank drain bolt:
9 N·m (0.9 kgf·m, 6.6 lb·ft)
Oil cooler drain bolt:
10 N·m (1.0 kgf·m, 7.4 lb·ft)
1. Engine oil tank filler cap
2. O-ring
3. Cylinder head cap
