CRANKSHAFT AND BALANCER SHAFT
5-76
• Crankshaft journal lower bearings
(into the lower crankcase)
• Crankshaft
TIP

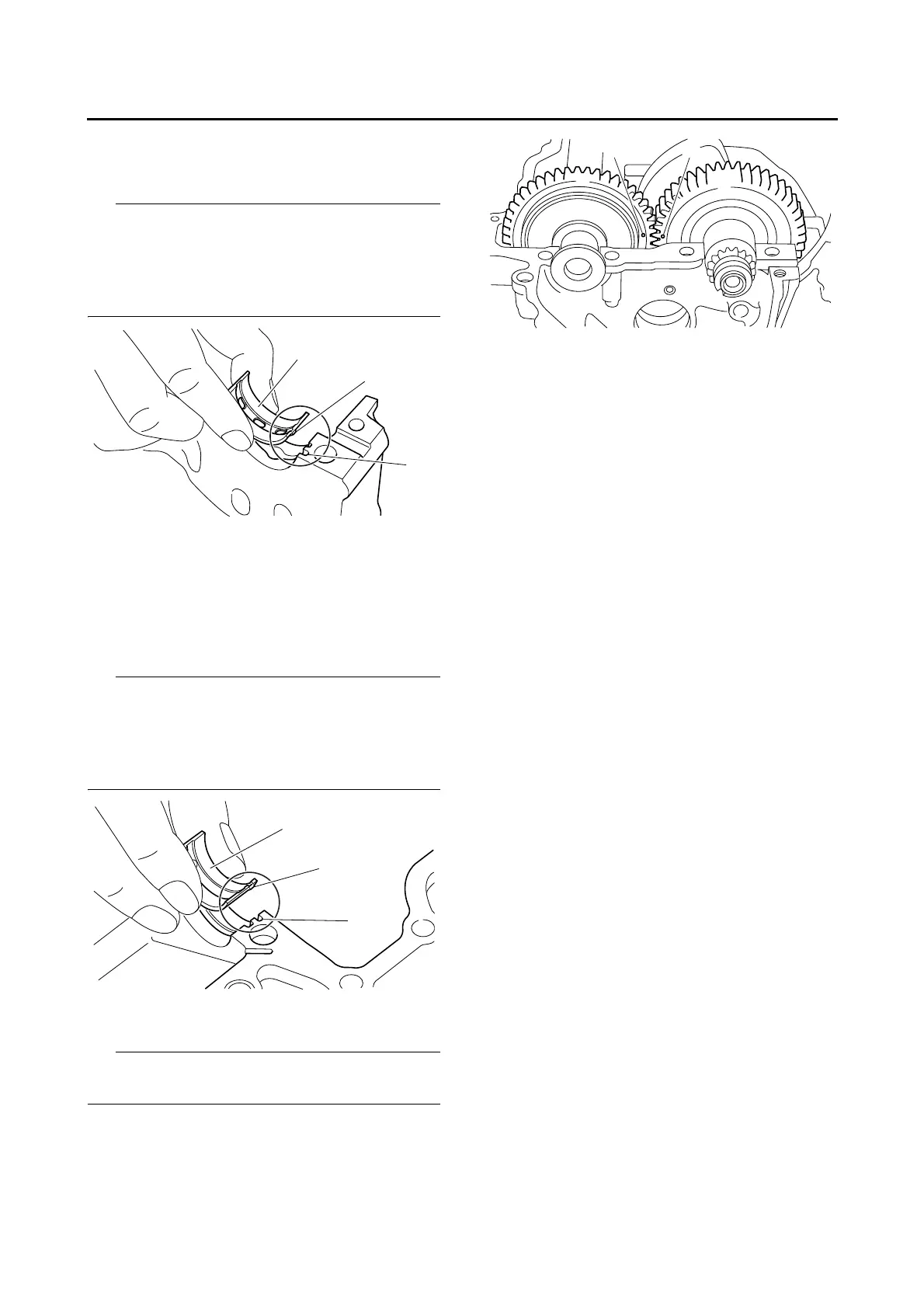

• Align the projections “a” on the crankshaft jour-
nal bearings “1” with the notches “b” in the
crankcase.
• Be sure to install each crankshaft journal bear-
ings in its original place.
EAS31172
INSTALLING THE BALANCER ASSEMBLY
1. Install:
• Balancer shaft journal upper bearings
(into the upper crankcase)
• Balancer shaft journal lower bearings
(into the lower crankcase)
TIP
• Align the projections “a” on the balancer shaft
journal bearings “1” with the notches “b” in the
crankcases.
• Be sure to install each balancer journal bearing
in its original place.
2. Install:
• Balancer shaft
TIP
Install by aligning the crankshaft match mark “a”
and the balancer shaft match mark “b”.
1
a
b
1
a
b
a
b
