SPEC

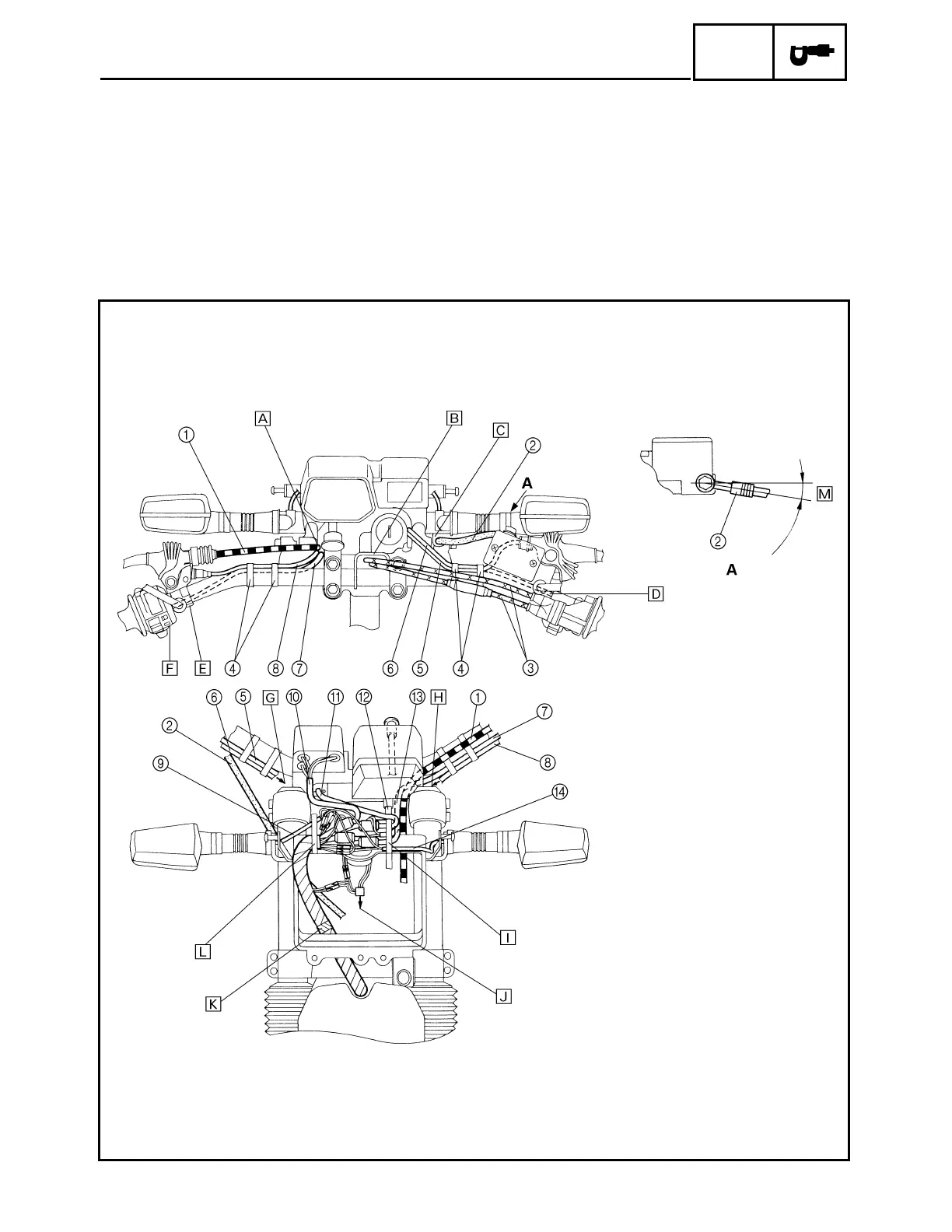

CABLE ROUTING
1
Clutch cable
2
Brake hose
3
Throttle cable
4
Band
5
Front brake switch lead
6
Handlebar switch lead (right)
7
Handlebar switch lead (left)
8
Clutch switch lead
9
Flasher light lead (right)
0
Indicator light box lead
A
Main switch lead
B
Speedometer cable
C
Speedometer lead
D
Flasher light lead (left)
È
Pass the starter cable to the front of the clutch
cable and the throttle cable.
É
Pass the throttle cable through the guide.
Ê
Pass the brake hose through the guide.
