Yamaha XT225-C - Camshaft and Timing Chain; Shaft-To-Cap Clearance; Camshaft Runout Limit

- 25 -
ENG

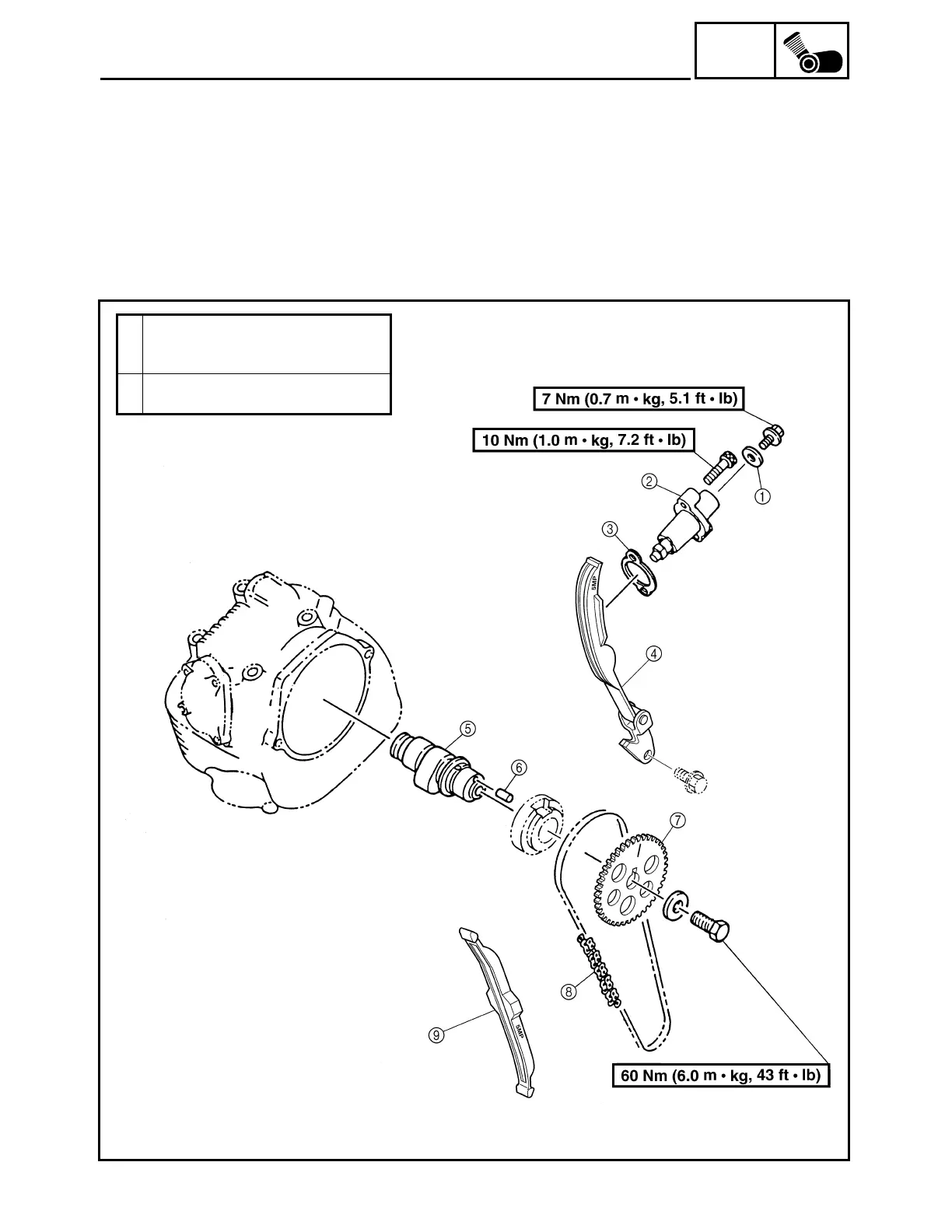

CAMSHAFT AND TIMING CHAIN
1
Gasket
2
Timing chain tensioner
3
Gasket
4
Timing chain guide (intake side)
5
Camshaft
6
Pin
7
Cam sprocket
8
Timing chain
9
Timing chain guide (exhaust side)
ENGINE ASSEMBLY AND ADJUSTMENT
A
SHAFT-TO-CAP CLEARANCE:
0.020 ~ 0.061 mm
(0.0008 ~ 0.0024 in)
B
CAMSHAFT RUNOUT LIMIT:
0.03 mm (0.0012 in)
