–4–

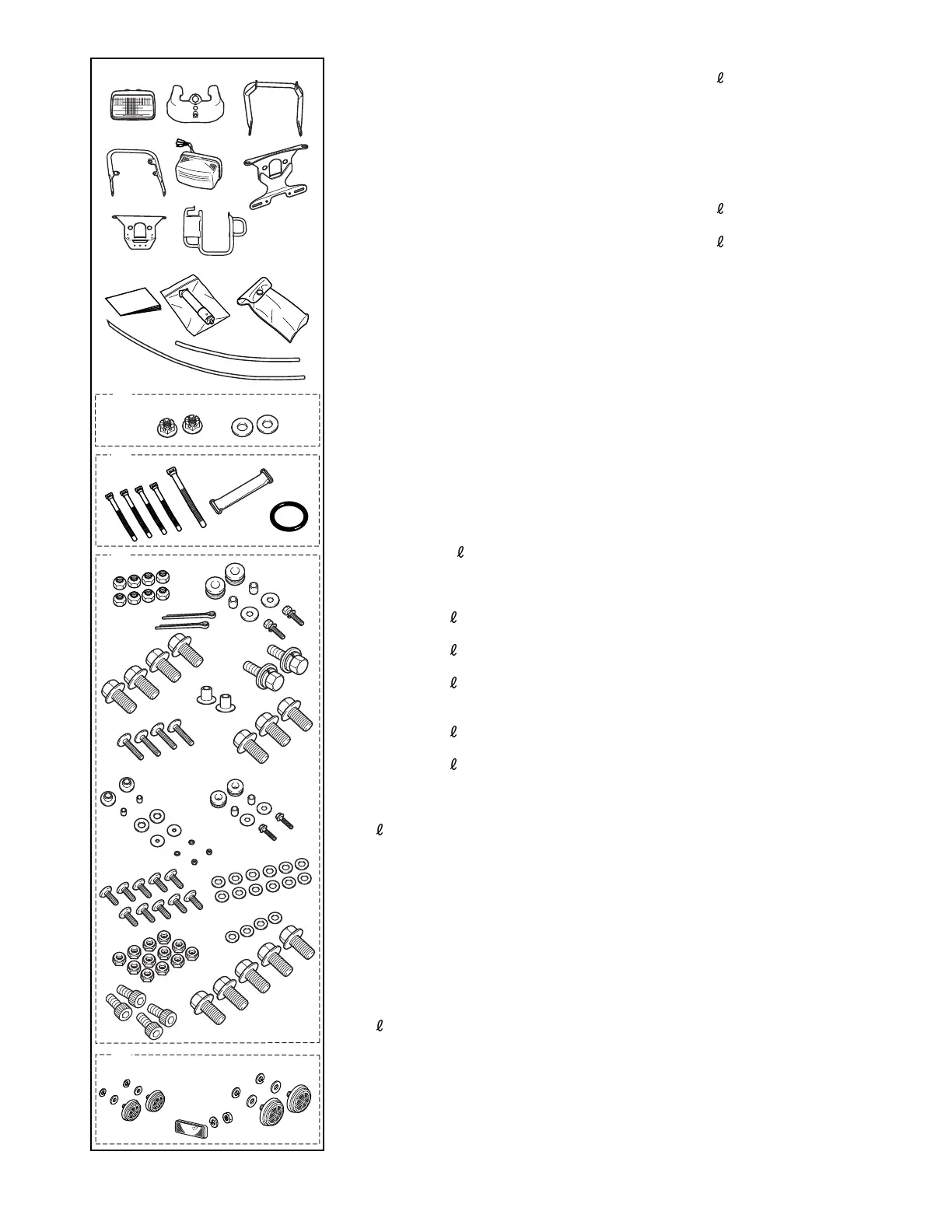

(4) Carton box
9. Headlight
10.Handlebar cover
11.Front bumper
12.Rear bumper
13.Tail/brake light lens unit
14.Bracket (tail/brake light lens unit)
(for CDN)
15.Bracket (tail/brake light lens unit)
(for Europe)
16.Swingarm guard
17.Owner’s manual
18.Low-pressure air gauge
19.Owner’s tool kit
20.Fuel tank breather hose
21.Battery breather hose
22.Plastic bag
23.Axle nuts (rear wheels) [d = 14 (0.55)]
24.Washers (rear wheels)
[D = 33 (1.30), d = 14 (0.55)]
25.Plastic bag
26.Small bands (handlebar)
27.Large band (tail/brake light lens unit)
28.Band (battery)
29.Band (tool kit)
30.Plastic bag
31.Nuts (front wheels) [d = 10 (0.39)]
32.Cotter pins (rear wheels)
33.Grommets (headlight)
34.Spacers (headlight) [D = 10 (0.39),
d = 7.2 (0.28), = 14.6 (0.57)]
35.Washers (headlight) [D = 23 (0.91),
d = 6.5 (0.26), thickness = 2.0 (0.08)]
36.Bolts with spring washers (headlight)
[d = 6 (0.24), = 25 (0.98)]
37.Flange bolts (front bumper)
[d = 8 (0.31), = 14 (0.55)]
38.Bolts with washers (front panel)
[d = 6 (0.24), = 20 (0.79)]
39.Special nuts (front panel)
40.Screws (front panel, fender stays)
[d = 5 (0.20), = 18 (0.71)]
41.Flange bolts (rear bumper)
[d = 8 (0.31), = 16 (0.63)]
42.Grommets (tail/brake light lens unit)
43.Black collars (tail/brake light lens unit)
[D = 10.5 (0.41), d = 6.5 (0.26),
= 13 (0.51)]
44.Rubber washers (tail/brake light lens
unit) [D = 28 (1.10), d = 15 (0.59)]
45.Washers (tail/brake light lens unit)
[D = 28 (1.10), d = 6.5 (0.26)]
46.Spring washers (tail/brake light lens
unit) [D = 12 (0.47), d = 6 (0.24)]
47.Nuts (tail/brake light lens unit)
[d = 6 (0.24)]
48.Grommets (tail/brake light lens unit)
49.Collars (tail/brake light lens unit)
[D = 10 (0.39), d = 6.5 (0.26),
= 11.5 (0.45)]
50.Washers (tail/brake light lens unit)
[D = 21.8 (0.86), d = 6.7 (0.26),
thickness = 1.6 (0.06)]
51.Flange bolts (tail/brake light lens unit)
[d = 6 (0.24), l = 25 (0.98)]
52.Screws (rear fender flaps)
[d = 5 (0.20), = 15 (0.59)]
53.Washers (rear fender flaps, fender
stays) [D = 14 (0.55), d = 6 (0.24)]
54.Nuts (rear fender flaps, fender stays)
[d = 5 (0.20)]
55.Washers (fender stays)
[D = 13 (0.51), d = 7 (0.28)]
56.Hexagon socket bolts (fender stays)
[d = 6 (0.24), = 12 (0.47)]
57.Flange bolts (swingarm guard)
[d = 8 (0.31), = 16 (0.63)]
58.Plastic bag
59.Spring washers (front reflectors)
[D = 9 (0.35), d = 5 (0.20)]
60.Washers (front reflectors)
[D = 12 (0.47), d = 5 (0.20)]
61.Front reflectors
62.Spring washers (rear reflectors)
[D = 9 (0.35), d = 5 (0.20)]
63.Washers (rear reflectors)
[D = 12 (0.47), d = 5 (0.20)]
64.Rear reflectors
65.Rear reflector
66.Spring washer (rear reflector)
[D = 9 (0.35), d = 5 (0.20)]
67.Hexagon nut (rear reflector)
[d = 5 (0.20)]
29
19
17
18
37
41
57
54
40
52
53
55
39
51
50
49
48
47
46
45
44
43
42
32
27
26
22
25
58
30
13
28
23
24
10
9
11
20
21
12
16
38
56
35
34
33
36
14
15
59
60
61
62
63
64
65
66
67
31
