4-38

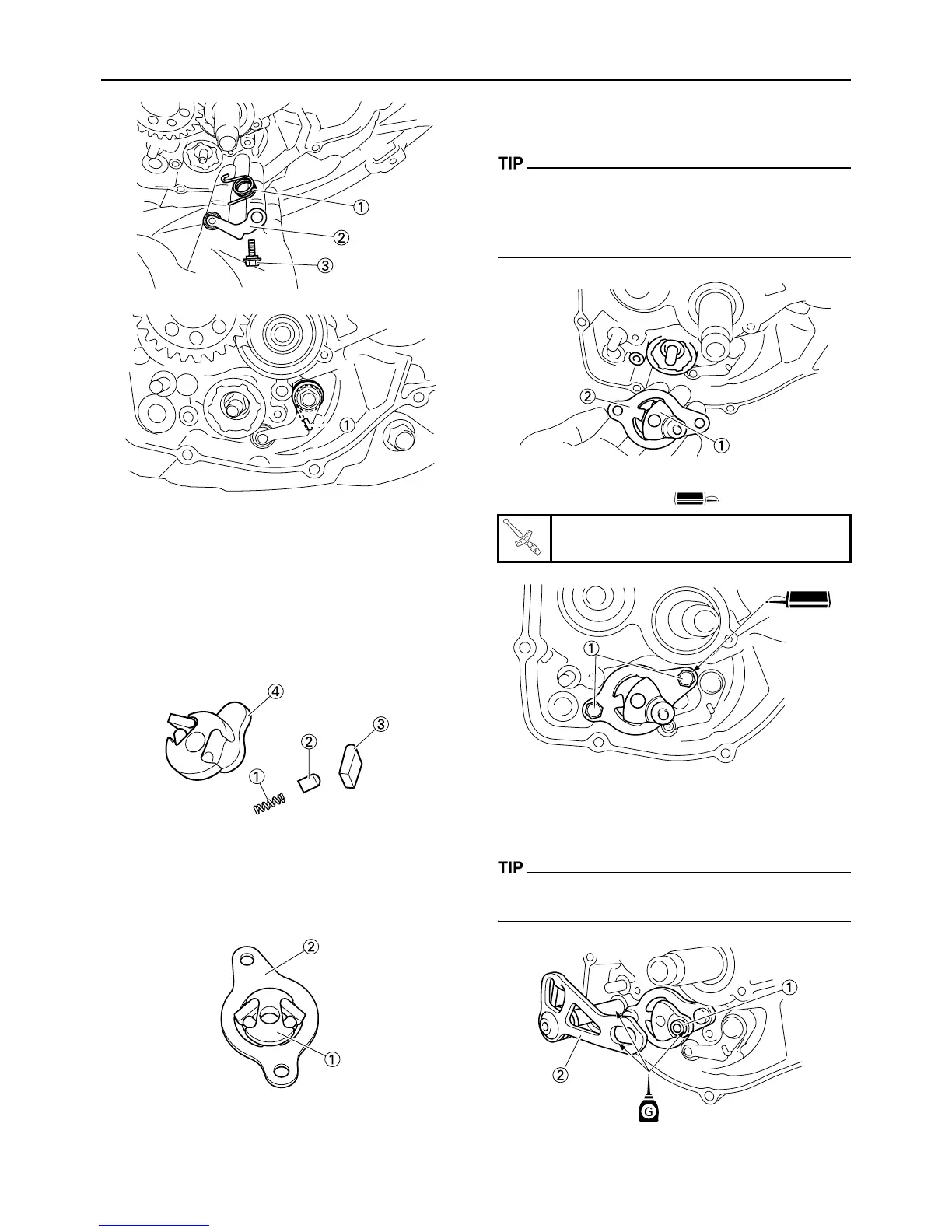

KICK SHAFT AND SHIFT SHAFT
INSTALLING THE SHIFT GUIDE AND SHIFT
LEVER ASSEMBLY
1. Install:
• Spring "1"
• Pawl pin "2"
•Pawl "3"
To shift lever "4".
2. Install:
• Shift lever assembly "1"
To shift guide "2".
3. Install:
• Shift lever assembly "1"
• Shift guide "2"
• The shift lever assembly is installed at the
same time as the shift guide.
• Apply the transmission oil on the bolt (seg-
ment) shaft.
4. Install:
• Bolt (shift guide) "1"
INSTALLING THE SHIFT SHAFT
1. Install:
• Roller "1"
• Shift shaft "2"
Apply the transmission oil on the roller and shift
shaft.
Bolt (shift guide):
10 Nm (1.0 m•kg, 7.2 ft•lb)

Yamaha YZ125 2009 Specifications

General

Engine Type	124cc liquid-cooled 2-stroke; reed-valve inducted
Bore x Stroke	54.0mm x 54.5mm
Compression Ratio	8.6~10.7:1
Ignition	CDI
Final Drive	Chain
Front Brake	Hydraulic single disc brake, 250mm
Rear Brake	Hydraulic single disc brake, 245mm
Front Tire	80/100-21
Rear Tire	100/90-19
Overall Width	32.5 in
Wheelbase	58.3 in
Fuel Capacity	2.1 gal
Wet Weight	207 lb
Dry Weight	194 lb
Fuel Delivery	Mikuni® TMX 38
Front Suspension	Speed-sensitive inverted fork; fully adjustable, 11.8 in travel
Rear Suspension	Fully adjustable, 12.4-in travel
