Yamaha YZ125 2021 - Adjusting the Clutch Lever Free Play

ENGINE
3-7

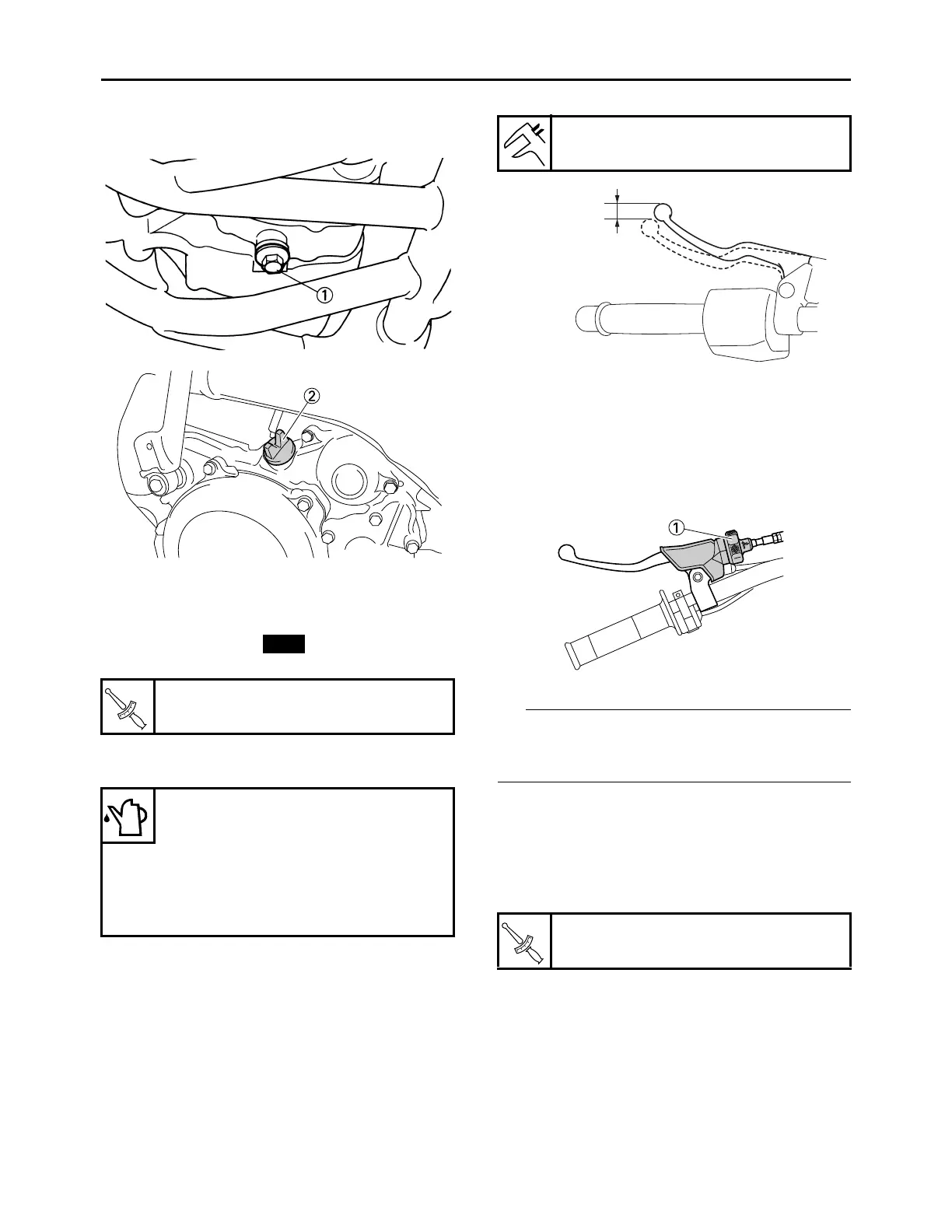

4. Remove:
• Oil drain bolt “1”
• Oil filler cap “2”
5. Drain:
• Transmission oil
6. Install:
• Aluminum washer
• Oil drain bolt
7. Fill:
• Transmission oil
8. Check:
• Oil leakage
9. Check:
• Transmission oil level
10.Install:
• Oil filler cap
EAM30216
ADJUSTING THE CLUTCH LEVER FREE
PLAY
1. Check:
• Clutch lever free play “a”
Out of specification  Regulate.
2. Adjust:
• Clutch lever free play
Handlebar side
a. Turn the adjuster “1” until the specified
clutch lever free play is obtained.
TIP
If the clutch lever free play cannot be obtained
on the handlebar side, use the adjuster on the
clutch cable side.
Clutch cable side
a. Slide the clutch cable cover.
b. Loosen the locknut “1”.
c. Turn the adjuster “2” until the specified
clutch lever free play is obtained.
d. Tighten the locknut “1”.
e. Return the clutch cable cover to its original
position.
Oil drain bolt
20 N·m (2.0 kgf·m, 15 lb·ft)
Type
Motor oil SAE 10W-40 type SG or
higher
Quantity (disassembled)
0.70 L (0.74 US qt, 0.62 Imp.qt)
Quantity
0.66 L (0.70 US qt, 0.58 Imp.qt)
New
T
R
.
.
Clutch lever free play
7.0–12.0 mm (0.28–0.47 in)
Locknut (clutch cable side)
4.3 N·m (0.43 kgf·m, 3.2 lb·ft)
a
G088887
T
R
.
.
