Yamaha YZF-R6 99 User Manual

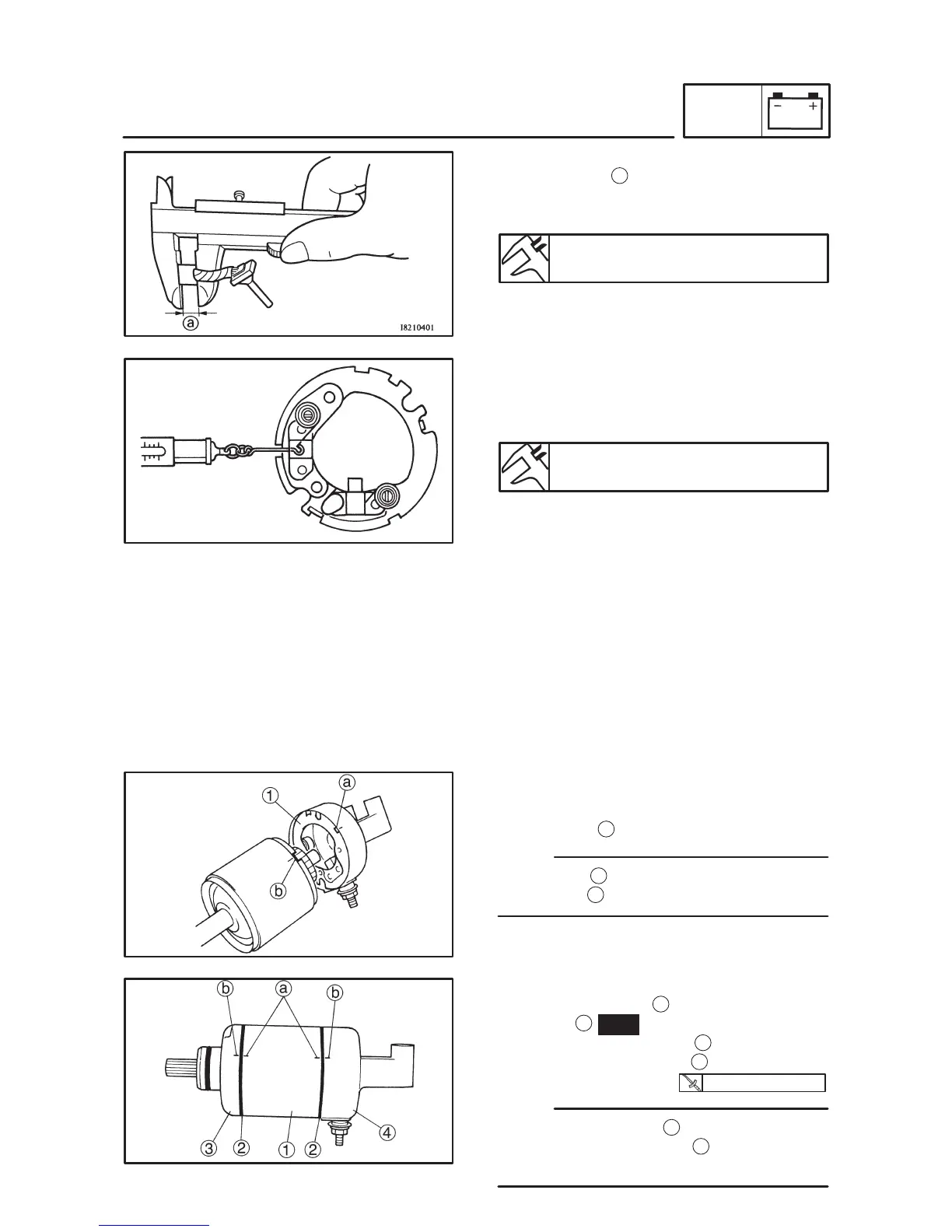

8-25
STARTER MOTOR
ELEC
NOTE:
5 Nm (0.5 mkg)
NOTE:
5. Measure:
 brush length
a
Out of specification  Replace the brushes
as a set.
Min. brush length
3.5 mm
6. Measure:
 brush spring force
Out of specification  Replace the brush
springs as a set.
Brush spring force
7.16  9.52 N (7.16  9.52 gf)
7. Check:
 gear teeth
Damage/wear  Replace the gear.
8. Check:
 bearing
 oil seal
Damage/wear  Replace the defective
part(-s).
EB803701
ASSEMBLING THE STARTER MOTOR
1. Install:
 brush seat
1
Align the tab
a
on the starter motor rear cover
with the slot
b
in the yoke.
2. Install:
 starter motor yoke
1
 O-rings
2
New
 starter motor front cover
3
 starter motor rear cover
4
 bolts
Align the match marks
a
on the starter motor
yoke with the match marks
b
on the front and
rear covers.

Yamaha YZF-R6 99 Specifications

General

Bore x Stroke	65.5 mm x 44.5 mm
Compression Ratio	12.4:1
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Tire	120/60-ZR17
Rear Tire	180/55-ZR17
Seat Height	820 mm
Engine Type	liquid-cooled 4-stroke DOHC 16-valve, inline-4
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	Single disc
Wheelbase	1, 380 mm
Fuel Capacity	17 liters
Dry Weight	169 kg
Length	2, 040 mm
Height	1, 090 mm
