2 - 2 Connector Pin Layout of the CMQ-V Series
4
Chapter 2. WIRING

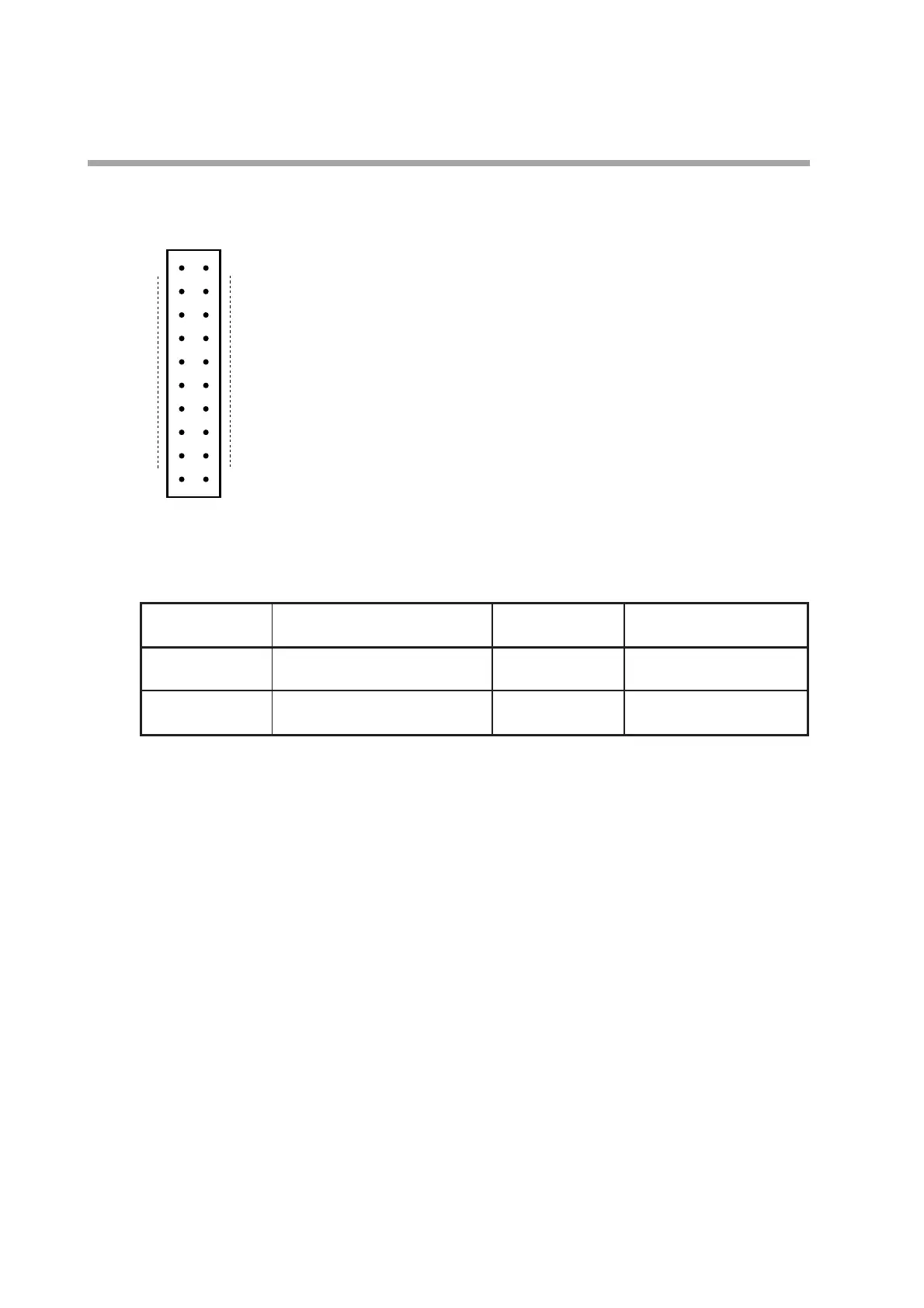

The following shows the connector pin layout of the CMQ-V Series with the communication functions:
● Connector pin layout
Mounted connector part number: HIF3BA-20PA-2.54DS
Manufacturer: Hirose Electric Co. Ltd.
● Mating connector table (All connectors are made by Hirose Electric Co. Ltd.)
20 19
2
1
Front view
Connector type Mating connector part No. Mating contact Recommended wire
part No.
Contact crimp type HIF3BA-20D-2.54C HIF3-2226SCC AWG#22 to #26
(single wire allowed)
Forced pressure HIF3BA-20D-2.54R Not required AWG#28 (Flat ribbon cable
type only)
