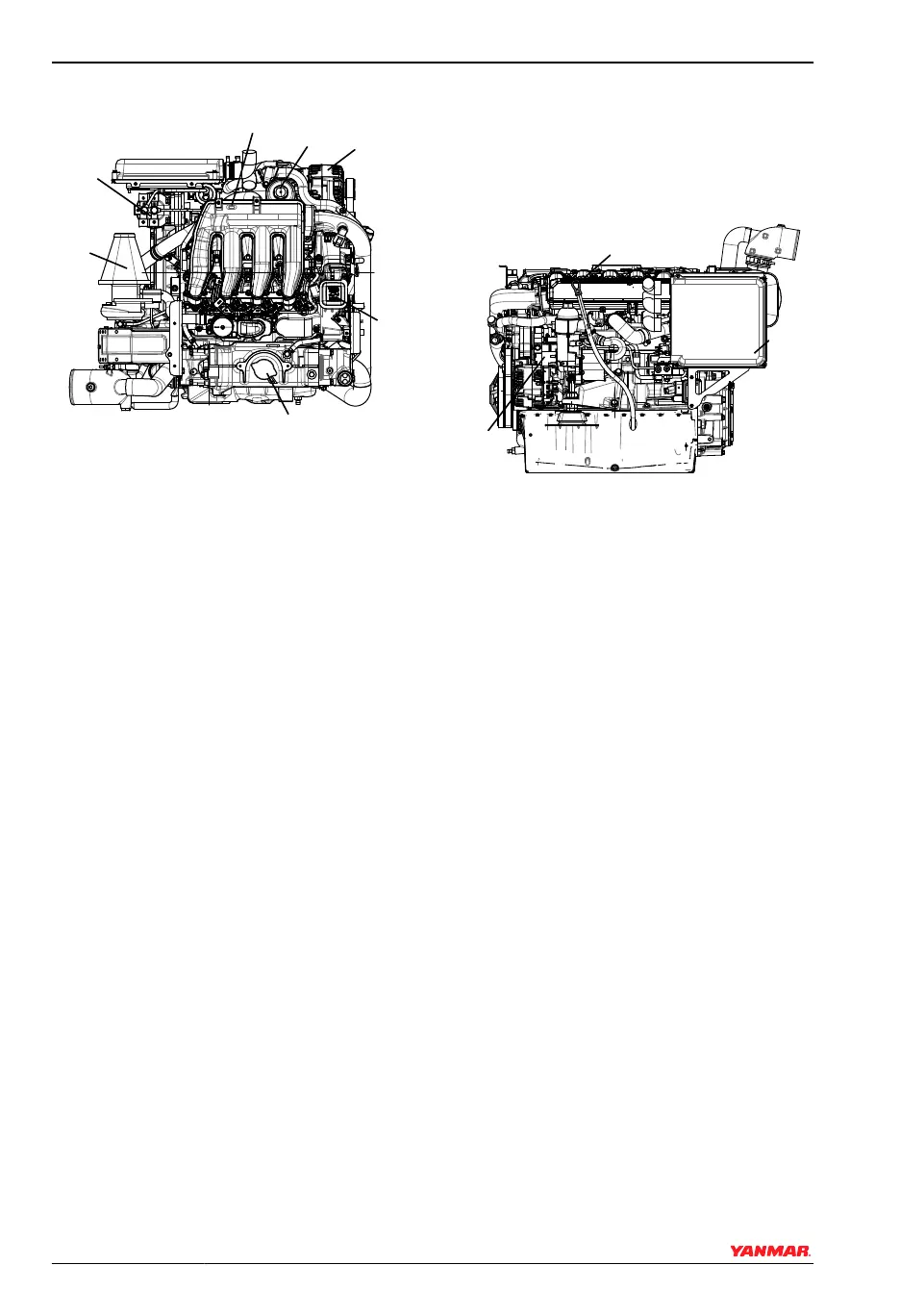

Top View - 4BY2

0006560

(1)

(2)

(3)

(4)

(5)

(6)

(7)

Figure 3

1 – Fuel Fine Filter

2 – Intake Air Manifold

3 – Engine Oil Filter

4 – Power Steering Filler Port (if

equipped)

5 – Engine Oil Filler Port

6 – Coolant Filler Port

7 – Air Filter

Note: Yanmar supplies a water-separating

pre-filter for mounting by the installer. The

engine is equipped with an on-engine fine

filter (Figure 3, (1)).

Figure 4, Figure 5 and Figure 6 illustrate a

typical version of a 6BY2 engine. Your

engine may have different equipment from

that illustrated.

Left Side - 6BY2

0006558

(1)

(2)

(3)

Figure 4

1 – Engine Oil Dipstick

2 – E-Box Panel

3 – High Pressure Fuel Pump

PRODUCT OVERVIEW

12 BY Series Operation Manual
