BEFORE YOU OPERATE
JH Series Operation Manual 37
12/05

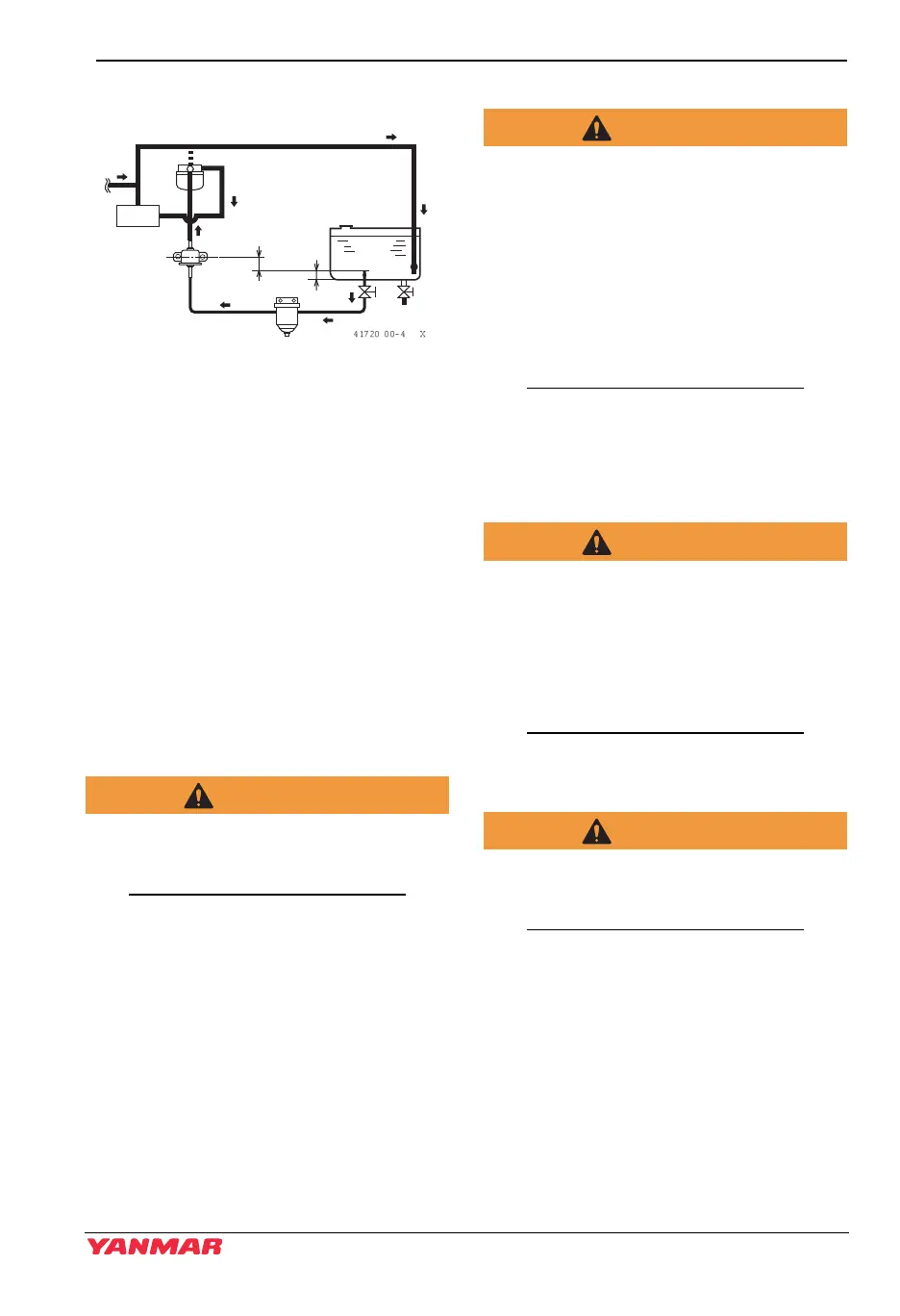

Fuel System - 3JH5E and 4JH5E
Figure 4
1–Fuel Tank
2–Fuel Cock
3 – Water Separator
4 – Fuel Feed Pump
5 – Fuel Filter
6 – Fuel Injection Pump
7 – Fuel Return Line
8 – Drain Cock
9 – 20 to 30 mm (0.75 to 1.25 in.)
Approximate
10 – Less than 400 mm (16.38 in.)
11 – Orifice for Air Bleeding
Filling the Fuel Tank
Before filling fuel tank for the first
time:
WARNING
Fire and Explosion Hazard.
Never refuel with the engine running.
Rinse fuel tank with kerosene or diesel
fuel. Dispose of waste properly.
To fill the fuel tank:
WARNING
Fire and Explosion Hazard.
Operate bilge ventilation (blowers) for a
minimum of 5 minutes to purge fumes
from engine compartment after
refueling. Never operate bilge blower
while refueling. Doing so can pump
explosive fumes into the engine
compartment and result in an
explosion.
1. Clean the area around the fuel cap.
2. Remove the fuel cap from the fuel tank.
3. Fill the tank with clean fuel free of oil
and dirt.
WARNING
Fire and Explosion Hazard.
Hold the hose nozzle firmly against
the filler port while filling. This
prevents static electricity buildup
which could cause sparks and ignite
fuel vapors.
4. Stop fueling when the gauge shows the
fuel tank is full.
WARNING
Fire and Explosion Hazard.
Never overfill the fuel tank.
5. Replace the fuel cap and hand-tighten.
Over-tightening the fuel cap will
damage it.
(3)
(4)
(5)
(11)
(6)
(7)
(2)
(9)
(10)
(8)
(1)
027144-00X
