Yanmar 4JH5E - STARTING THE ENGINE

BEFORE YOU OPERATE
JH Series Operation Manual 45
12/05
4JH4-TE

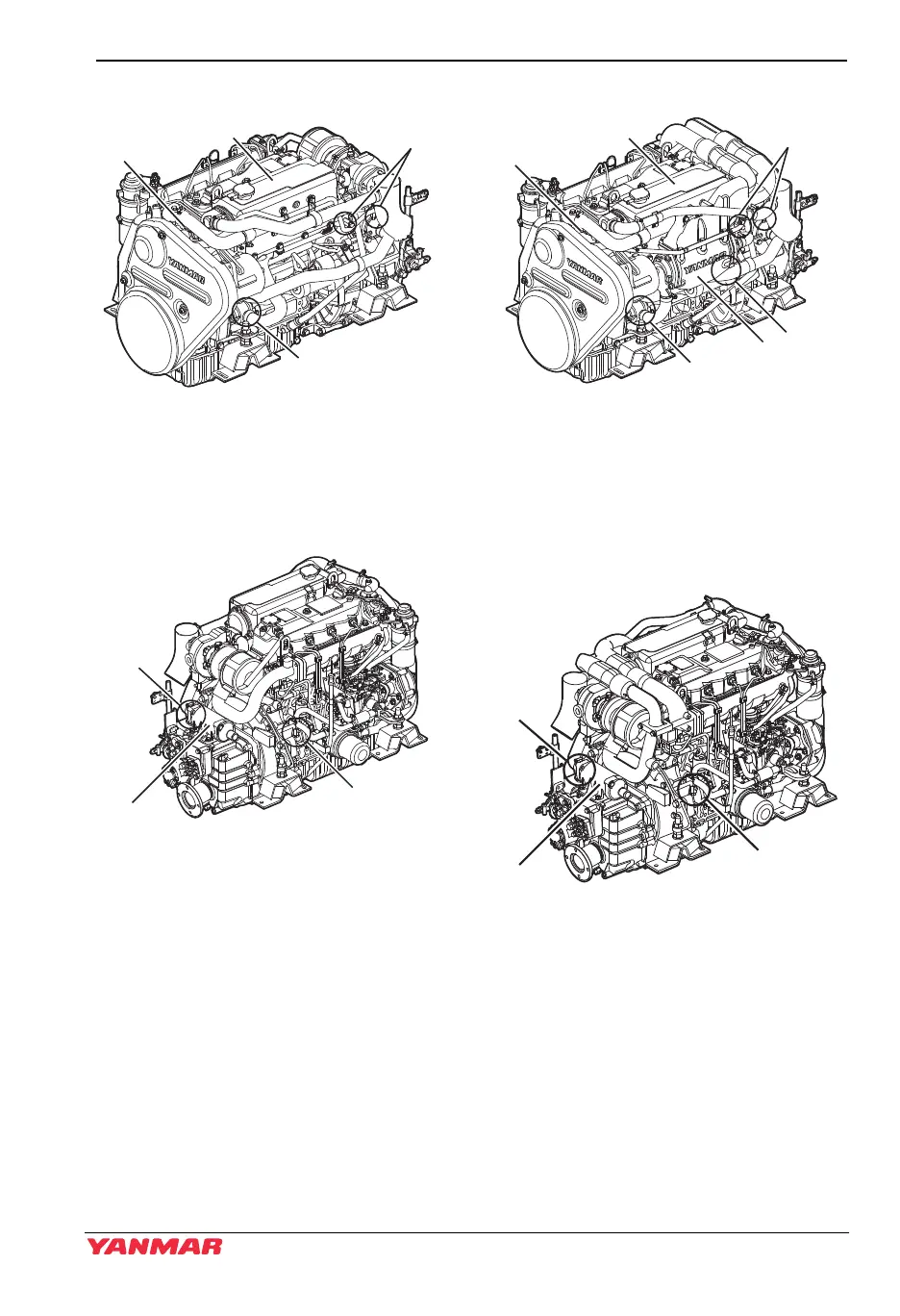

Figure 14
1 – Coolant Tank (heat exchanger)
2 – Coolant Pump
3 – Seawater Drain from Seawater
Pump Cover
4 – Coolant Drain Cock (2 used)
Figure 15
1 – Coolant Drain Cock
2 – Seawater Drain Cock
3 – Marine Gear Cooler
4JH4-HTE1 / 4JH4-HTE
Figure 16
1 – Coolant Tank (heat exchanger)
2 – Coolant Pump
3 – Seawater Drain from Seawater
Pump Cover
4 – Coolant Drain Cock
5 – Air cooler
6 – Seawater Drain Cock
Figure 17
1 – Coolant Drain Cock
2 – Seawater Drain Cock
3 – Marine Gear Cooler
