GENERAL SERVICE INFORMATION
BY Service Manual
3-5

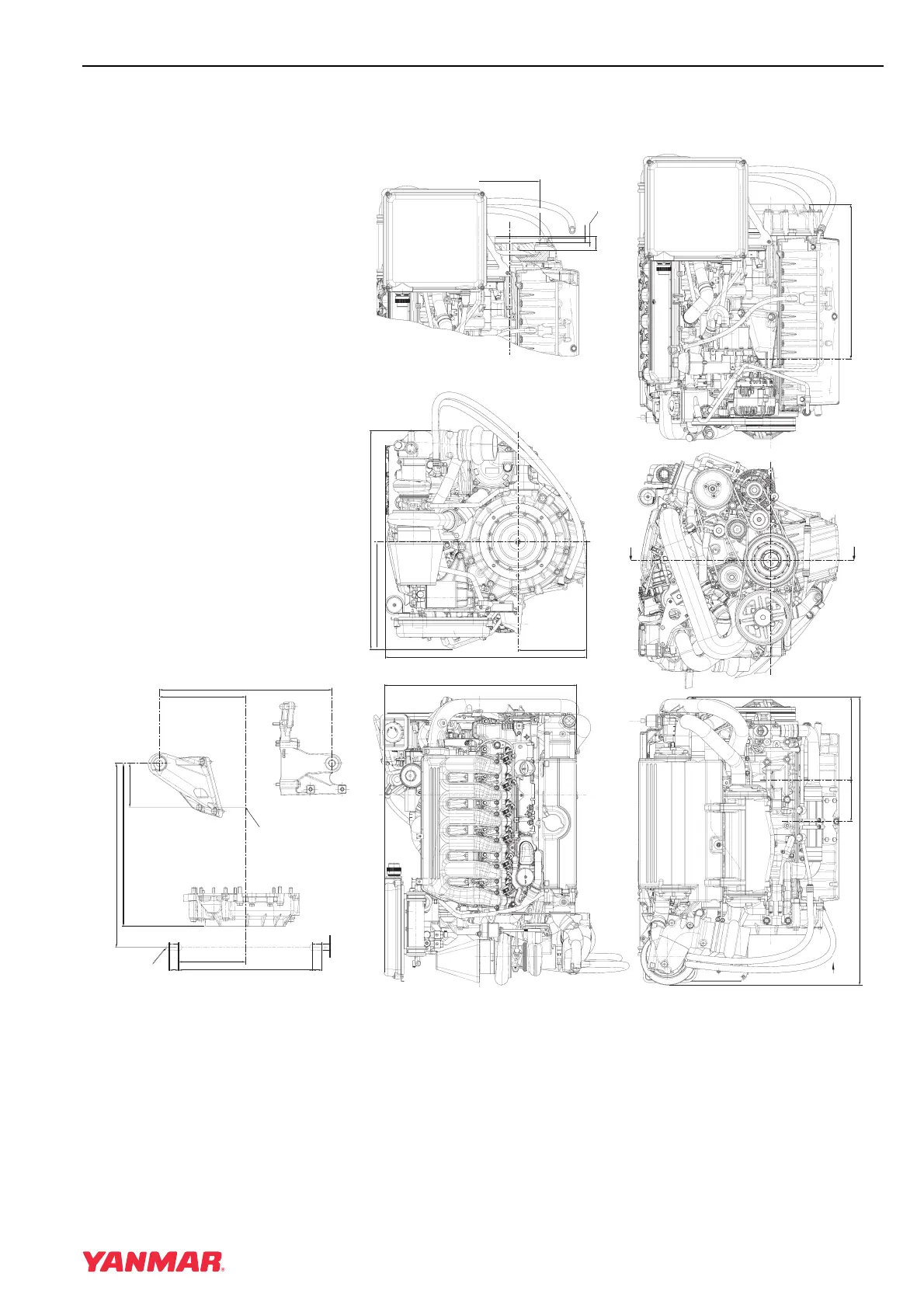

Engine Outline Drawings
6BY - Inboard Version (Borg Warner Flange)
Note: All dimensions are metric. Contact Yanmar Marine for the most current drawings.
Figure 3-3
0003571
SECTION A-A
538.5
A
S
50
Ø209.55 G7
21.5
7
+0.03
0
+0.061
0.015
A
145
240
700
669
373
759
287
1001
572
145
538.5
30.530.5
ORIGINAL GEAR
BRACKETS ZF45
444.5
ENGINE MIDDLE
286
608.5
21
222.25
