Function of parts
34

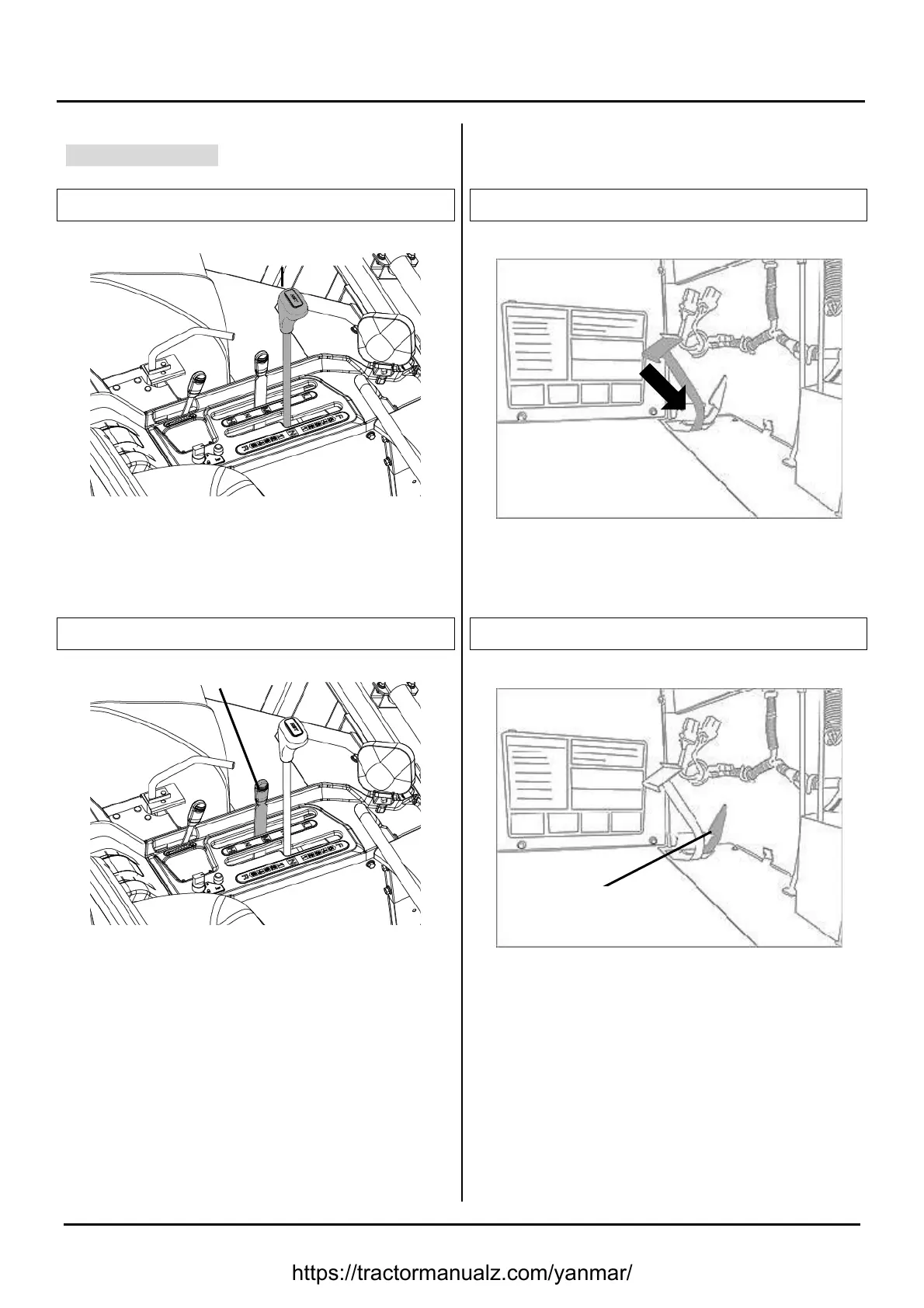

Traveling section
1 Main shift lever (HST)
The main shift lever is used to move the machine
forward or backward during traveling. You can push the
lever to enable step-less speed change.
2 Range shift lever
This lever provides three gears, namely “L” (Low), “M”
(Middle) and “H” (High) according to the purpose and
conditions of operation.
[Precaution]
Be sure to put the main shift lever to “N” in
advance.
Do not change the speed on a slope.
3 Brake pedal
Step the brake pedal for emergency stop of the
machine in traveling.
4 Brake pedal lock
Step the brake pedal and engage the pedal lock to
completely stop the machine. This lock can be released
by stepping the pedal to the floor.
Main shift leve
Range shift leve
Brake pedal lock
