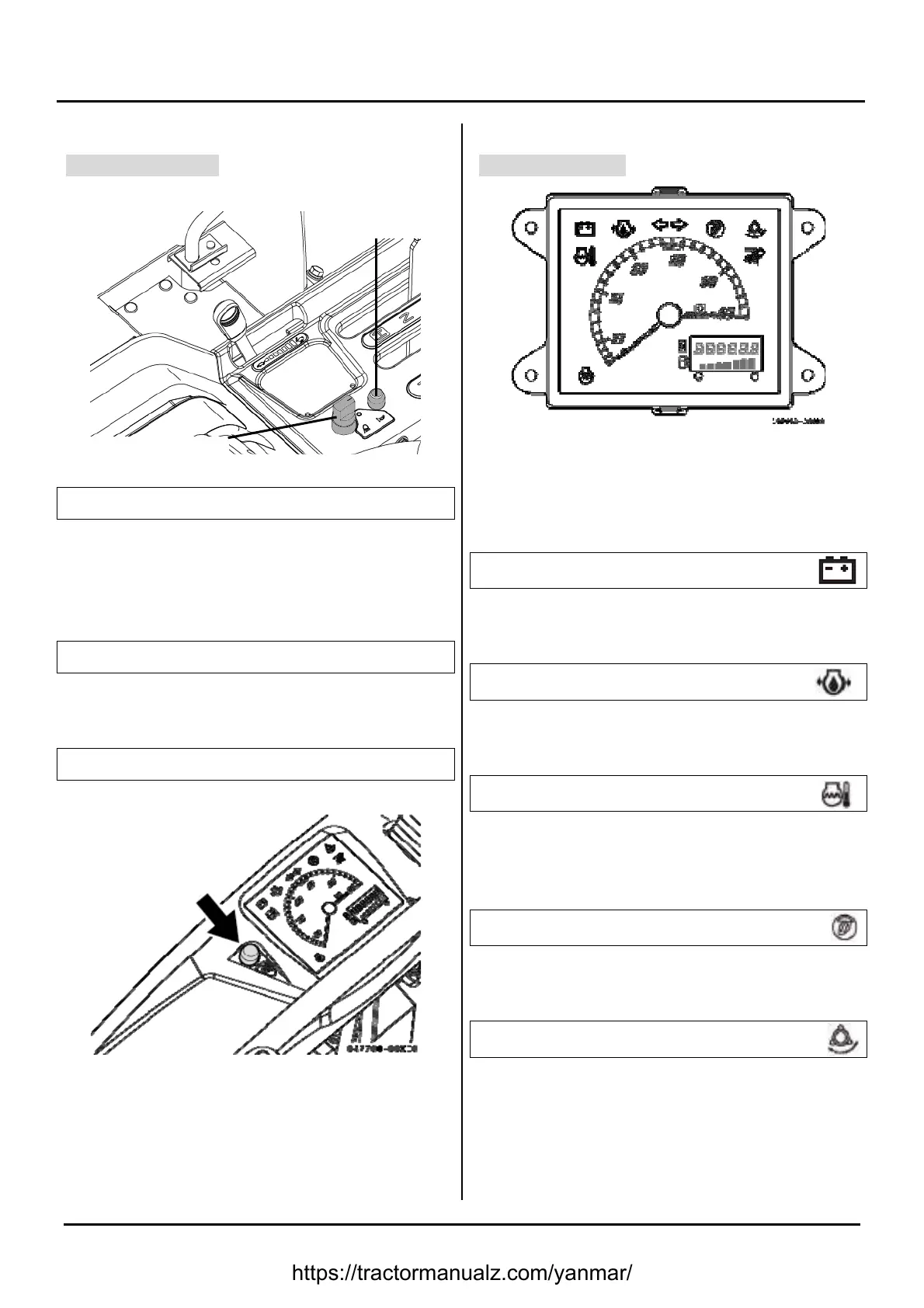

Function of parts
35
Electrical section
1 Work lamp switch
Pull the key switch to “ON”, and turn the working light
switch clockwise, the head light and work lamp for the
feeder house, reaping section and the rear part will be
lit simultaneously.
2 Horn button
Pull the key switch to “ON” and press the horn button,
the horn will give sound.
3 Buzzer stop button
This button is used to stop the alarm buzzer.
Alarm indicators
The indicators are the alarm devices for abnormalities
in various parts during operation, through which, or
together with the buzzer, the abnormal parts can be
indicated.
1 Charge indicator
This indicator will be lit if the battery is not charged
during operation of the engine.
2 Oil pressure alarm
This indicator will be lit when the pressure of engine
lubricant decreases.
3 Water temperature alarm
This indicator will be lit and the buzzer will give sound
when the temperature of engine cooling water rises
abnormally.
4 Full grain tank alarm
This indicator will be lit and the buzzer will give sound
when the tank is filled with grain.
5 2nd conveyer blocking alarm
This indicator will be lit and the buzzer will give sound
when the revolving speed of secondary auger is lower
than the rated level.
Work lamp switch
Horn button
