Operating
the tractor
35
[6
-
2)

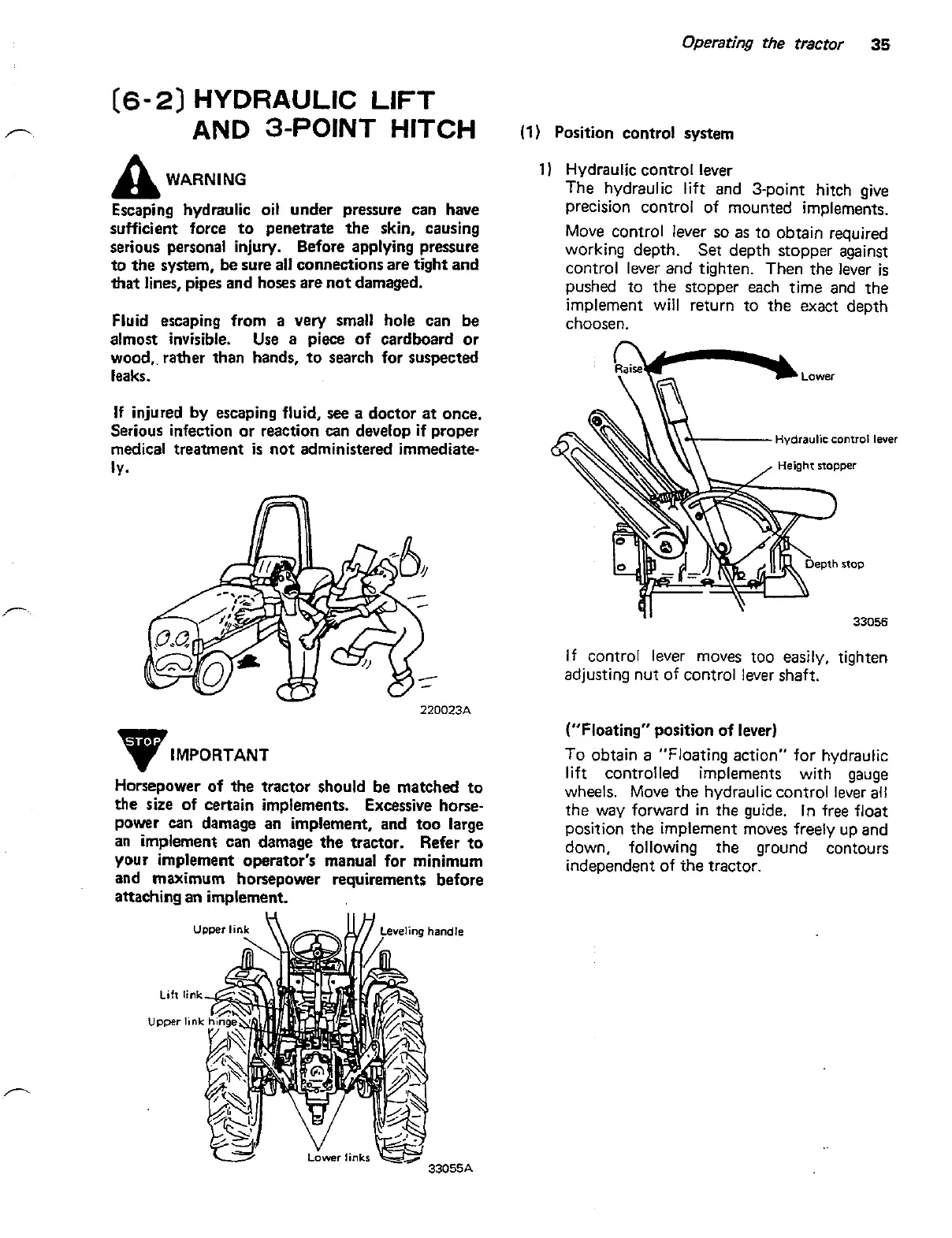

HYDRAULIC LIFT
AND 3-POINT HITCH
Escaping hydraulic oil
under pressure can have
sufficient force to penetrate the skin, causing
serious personal injury. Before applying pressure
to the system, be sure all connections are tight and
that lines, pipes and hoses are not damaged.
Fluid escaping from a very small hole can be
almost invisible. Use a piece of cardboard or
wood,.
rather than hands, to search for suspected
leaks.
If injured
by
escaping fluid,
see
a doctor at once.
Serious infection or reaction can develop
if
proper
medical treatment
is
not administered immediate-
IY.
Horsepower of the tractor should be matched to
the size of certain implements. Excessive horse-
power
can
damage an implement, and too large
an implement can damage the tractor. Refer to
your implement operator's manual for minimum
and maximum horsepower requirements before
attaching
an
implement.
(1)
Position control system
1)
Hydraulic control lever
The hydraulic lift and 3-point hitch give
precision control of mounted implements.
Move control lever so as to obtain required
working depth. Set depth stopper against
control lwer and tighten. Then the lever
is
pushed to the stopper each time and the
implement will return to the exact depth
choosen.
Lower
Hydraulic
control
lever
-
7-
If control lever moves too easily, tighten
adjusting nut of control lever shaft.
("Floating" position of lever)
To obtain a "Floating action" for hydraulic
lift controlled implements with gauge
wheels. Move the hydraulic control lever all
the way forward in the guide. In free float
position the implement moves freely up and
down, following the ground contours
indeoendent of ihe tractor.
