Assembly (continued)
9

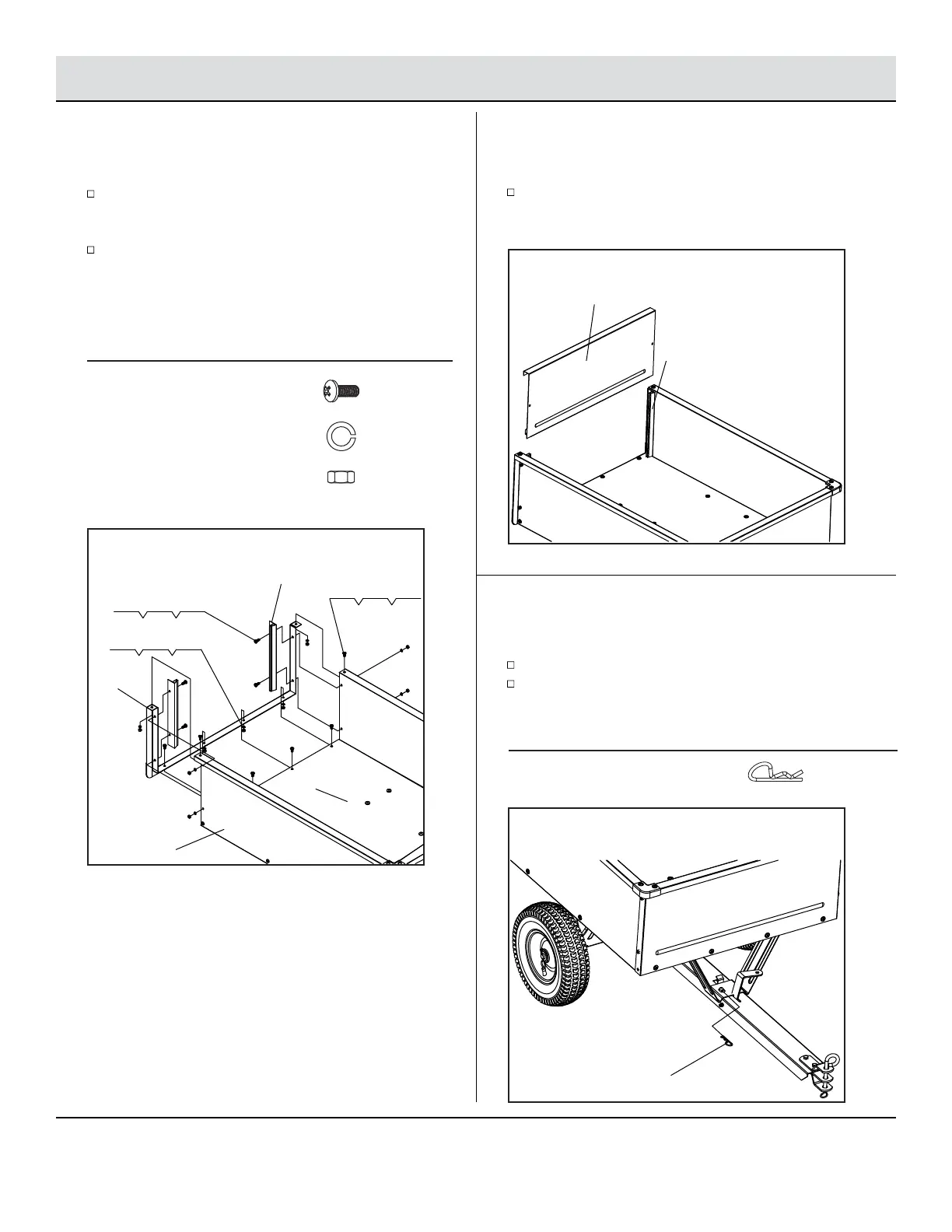

Attach the U-frame
Attach the U-frame (E) to the bottom panel (A) and side
panels (C) using six sets of M6x16 screws (AA), Ø6 lock
washers (BB), and M6 hex nuts (CC).
Attach the two rear card slots (D) to the U-frame (E) and
both side panels (C) using four sets of M6x16 screws (AA),
Ø6 lock washers (BB), and M6 hex nuts (CC).
10
Attach the Rear Panel
Hardware Used
Slide the rear panel (G) through the rear card slots (D) on the
back side panels.
Hardware Used
GG x 1Ø3 R Pin
AA x 10M6x16 Screw
x 10Ø6 Lock WasherBB
x 10M6 Hex NutCC
G
A
E
D
C
AA BB CC
AA BB CC
D
Insert the Ø3 R Pin (GG) into the safety pin on the hitch tongue.
Pull out the Ø3 R Pin (GG) before emptying the bed and then
press the release pedal.
GG
11
Lock the Tongue Support
AA BB CC
To Next Page
