E17

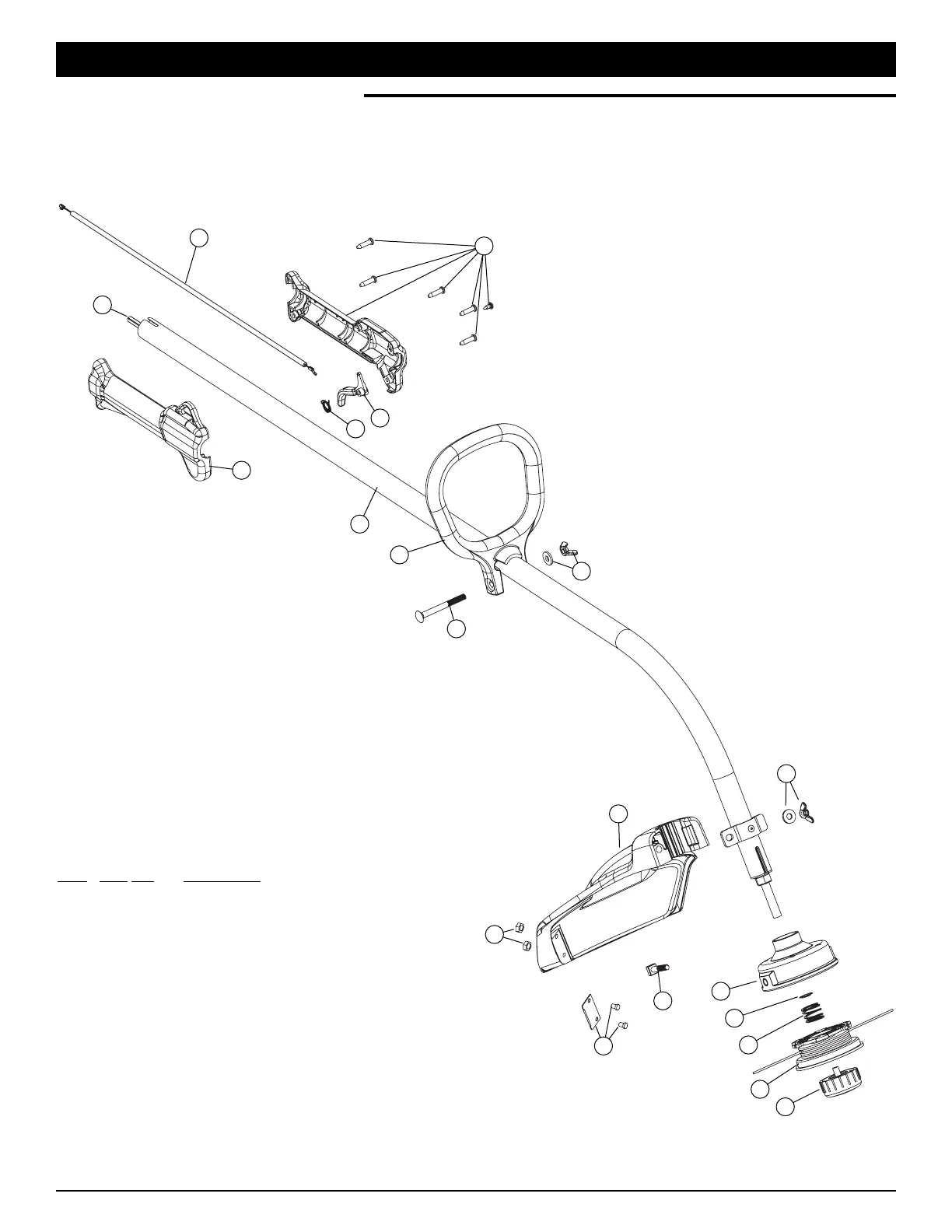

REPLACEMENT PARTS - 3100M
2-CYCLE GAS TRIMMER
PARTS LIST
3
4
5
2
1
8
8
7
6
9
11
11
10
9
13
14
15
12
Item Part No. Description
1 791-610314 Throttle Trigger Spring
2 791-180975 Throttle Trigger
3 753-04927 Throttle Housing Assembly (includes 1 & 2)
4 753-04901 Throttle Cable
5 753-04280 Flexible Drive Shaft
6 753-04921 Drive Shaft Housing (includes 13)
7 791-153064 D-Handle Assembly (includes 8)
8 791-153317 D-Handle Hardware
9 753-04282 Guard Mounting Hardware
10 753-04283 Guard (includes 11)
11 791-180553 Blade Assembly
12 753-04284 Outer Reel (includes 13)
13 791-610660 Retainer
14 791-610317B Spring
15 753-1155 Inner Reel
16 791-153066B Bump Knob
* 791-153577B Inner Reel & Line
