Yard Machines 3100M - Parts List

E16

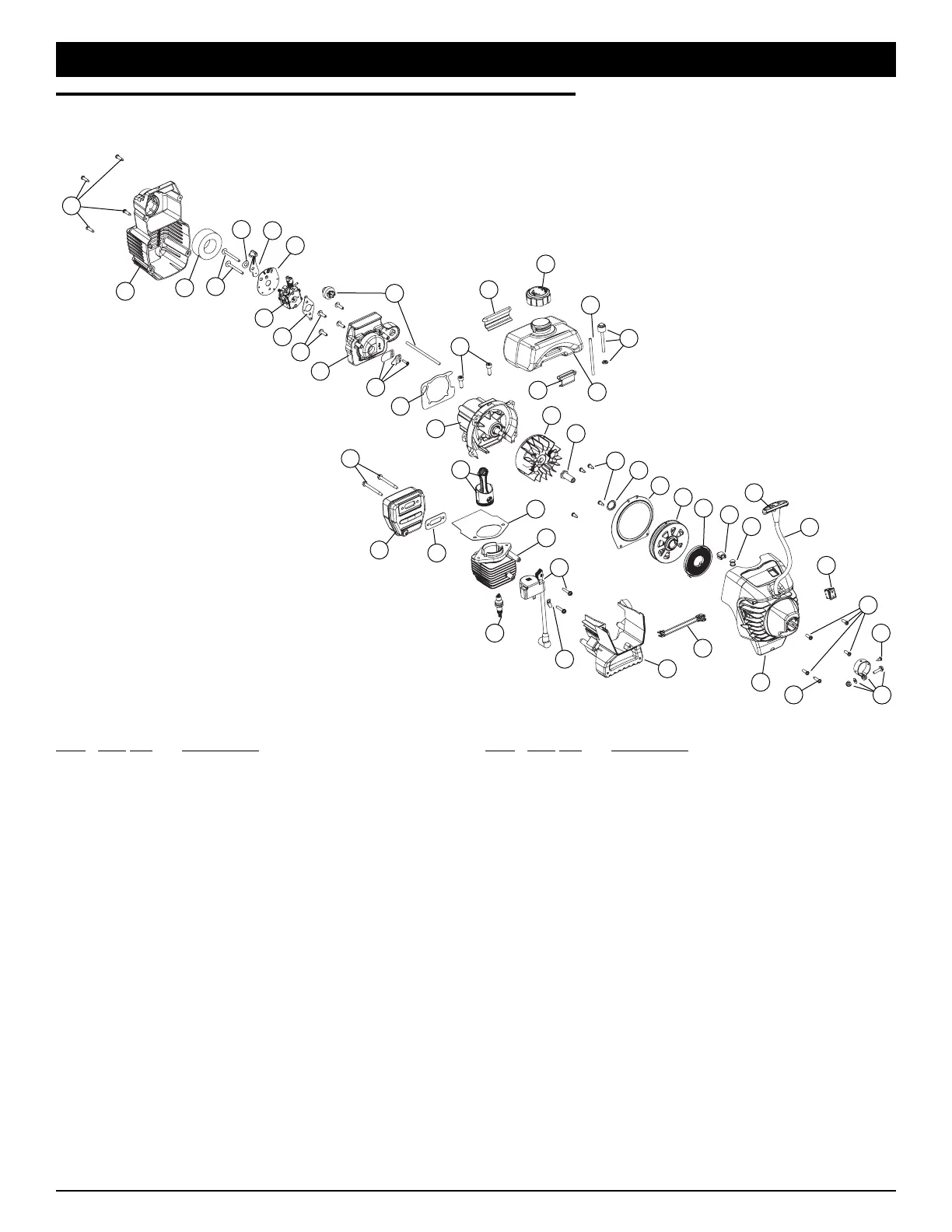

REPLACEMENT PARTS - 3100M
2-CYCLE GAS TRIMMER
PARTS LIST
Item Part No. Description
28 753-04824 Eyelet Retainer
29 791-611061 Rope Guide
30 791-181079 Pull Handle
31 791-613103 Rope
32 791-182405 Switch Assembly
33 791-181862 Housing Screw
34 791-181345 Cover Screw
35 753-05023 Wire Lead
36 753-05207 Starter Housing Assembly (includes 23-35)
37 753-04466 Anti-Rotation Screw
38 753-05056 Clamp Assembly (includes 37)
39 753-04409 Shroud Extension and Stand (includes 34)
40 753-04324 Module Assembly
41 791-611063 Ground Tab
42 791-610311B Spark Plug
43 753-04619 Exhaust Gasket
44 753-04620 Muffler Mounting Bolt Assembly
45 753-05169 Muffler Assembly
(includes 43, 44 & Spark Arrestor)
46 753-04367 Piston & Rod Assembly
47 791-182723 Cylinder Bolt
48 753-04182 Cylinder Gasket
49 753-04814 Cylinder Assembly (includes 47 & 48)
* 753-1209 Piston Ring Set
* 753-04826 Short Block Assembly (includes 14, 42 & 46-49)
* not shown
Item Part No. Description
1 753-04511 Air Cleaner Cover Assembly (includes 2 & 34)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screws
4 791-180226 Wavey Washer
5 753-04418 Choke Lever Assembly
6 753-04419 Choke Lever & Plate (includes 5)
7 753-04408 Carburetor Assembly (includes 8 & 18)
8 791-610675 Carburetor Gasket
9 791-181860 Carb Mount Screw
10 791-683974B Primer and Hose Assembly
11 753-1196 Carburetor Mount Assembly
(includes 9, 12 & 13)
12 791-684451 Reed Assembly
13 753-1208 Carburetor Mount Gasket
14 753-04321 Crankcase Service Assembly (includes 9)
15 791-612134 Rear Mounting Pad
16 791-182612 Fuel Cap Assembly
17 791-181086 Fuel Return Line
18 791-682039 Fuel Line Assembly
19 791-182767 Fuel Tank Assembly (includes 16-18)
20 791-145308 Front Mounting Pad
21 791-182736 Flywheel Assembly
22 791-610303 Square Nut Drive
23 753-1202 Plate Screw
24 753-04288 Palnut
25 753-04928 Pressure Plate (includes 23 & 28)
26 753-04823 Recoil Pulley Assembly (includes 24 & 31)
27 753-04286 Recoil Spring
