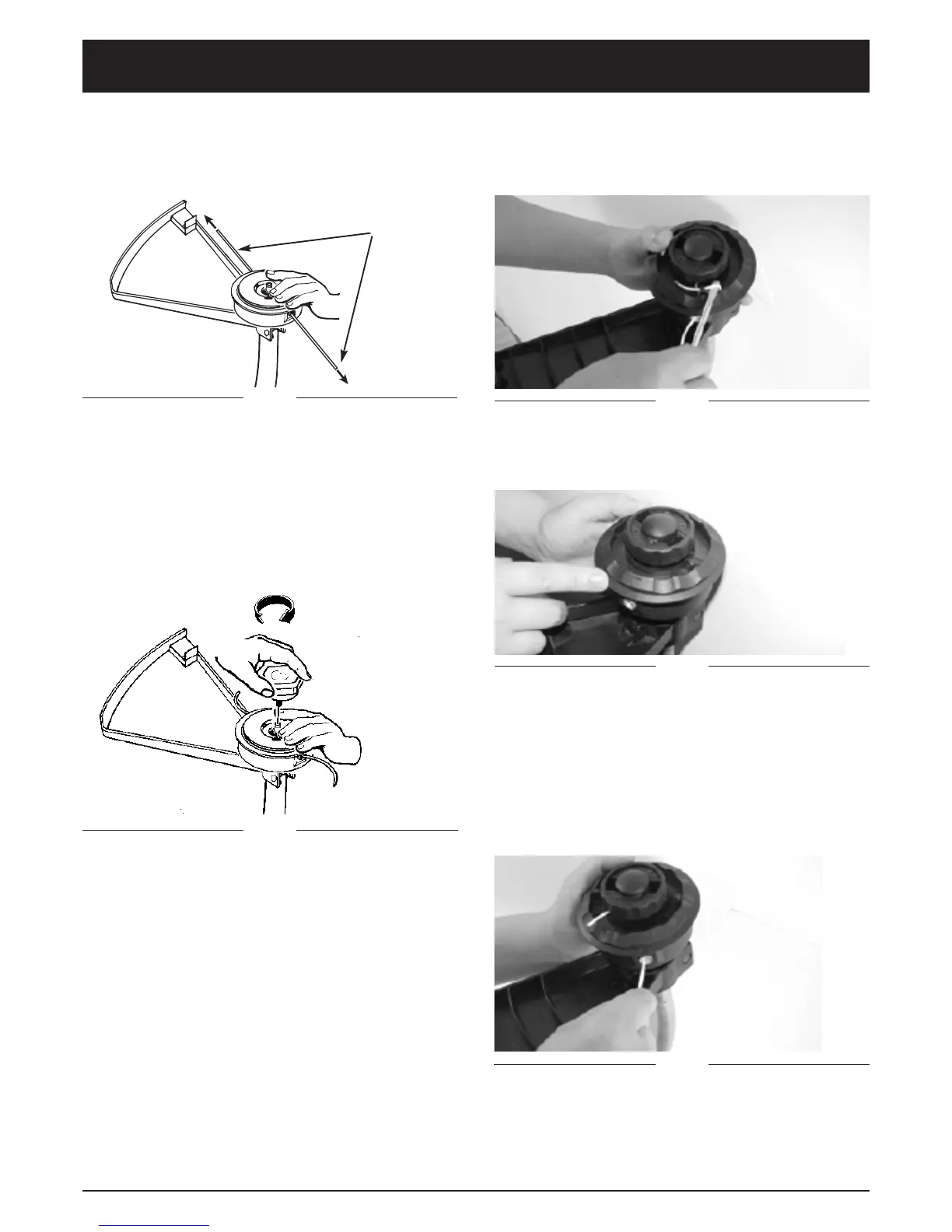

Fig. 20
Fig. 19
Cutting
Line Ends
9. Once the spool is in place, apply pressure on the
spool that is compressing the spring. Pull each end
of the line sharply to unlock the line from the slots
(Fig. 19).
10. Continue to apply pressure to the spool until the
knob can be threaded clockwise onto the spindle.
Tighten the knob securely by hand (do not use any
other instrument) (Fig. 20).
11. Trim the excess line to about 5 in (13 cm). This will
minimize the load on the engine when it starts and
warms up.
Fig. 21
Fig. 22
REPLACING TRIMMING LINE: EASY-LOAD
HEAD
1. Use a small screwdriver or pointed rod to release line
from the locking tabs (Fig. 21).
2. Remove remaining line from head.
3. Align arrows on inner and outer spool (Fig. 22).
4. Cut a length of trimming line approximately 16 feet (5
meters) long.
5. While pushing inner spool down insert each end of
line through eyelets into feed slot on spool divider.
Ensure line enters feed slots. Push line until
approximately 2 inches (5 cm) appears from below
bump knob (Fig. 23).
Fig. 23
