E19
PARTS LIST
13
15
10
5
4
3
2
Item Part No. Description
1 MC-9228-332615 Shaft Assembly (includes 2)
2 MC-9111-332605 Flex Shaft
3 MC-9059-332601 Rubber Grip
4 753-04722 Grip Assembly
5 MC-9010-332602 Lead Wires
6 MC-9059-332602 Wire Cover
7 MC-9228-332608 Handle Assembly (includes 8)
8 753-04723 D-Handle Hardware
9 MC-9228-A10110 Shield Assembly (includes 10 & 11)
10 MC-9125-331001 Shield Hardware
11 753-04725 Blade w/Hardware
12 MC-9228-332619 Twist & Edge Assembly (includes 13 & 14)
13 MC-9024-331101 Spring
14 753-04728 Twist & Edge Hardware
15 MC-9228-330109 String Head Kit (includes 16 &17)
16 MC-9072-330101 Spool
17 MC-9024-330101 Spring
18 MC-9228-330110 Bump Knob Assembly (includes 19)
19 MC-9134-330101 Knob Cap
17
18
19
16
9
6
1
7
8
11
12
14
14
14

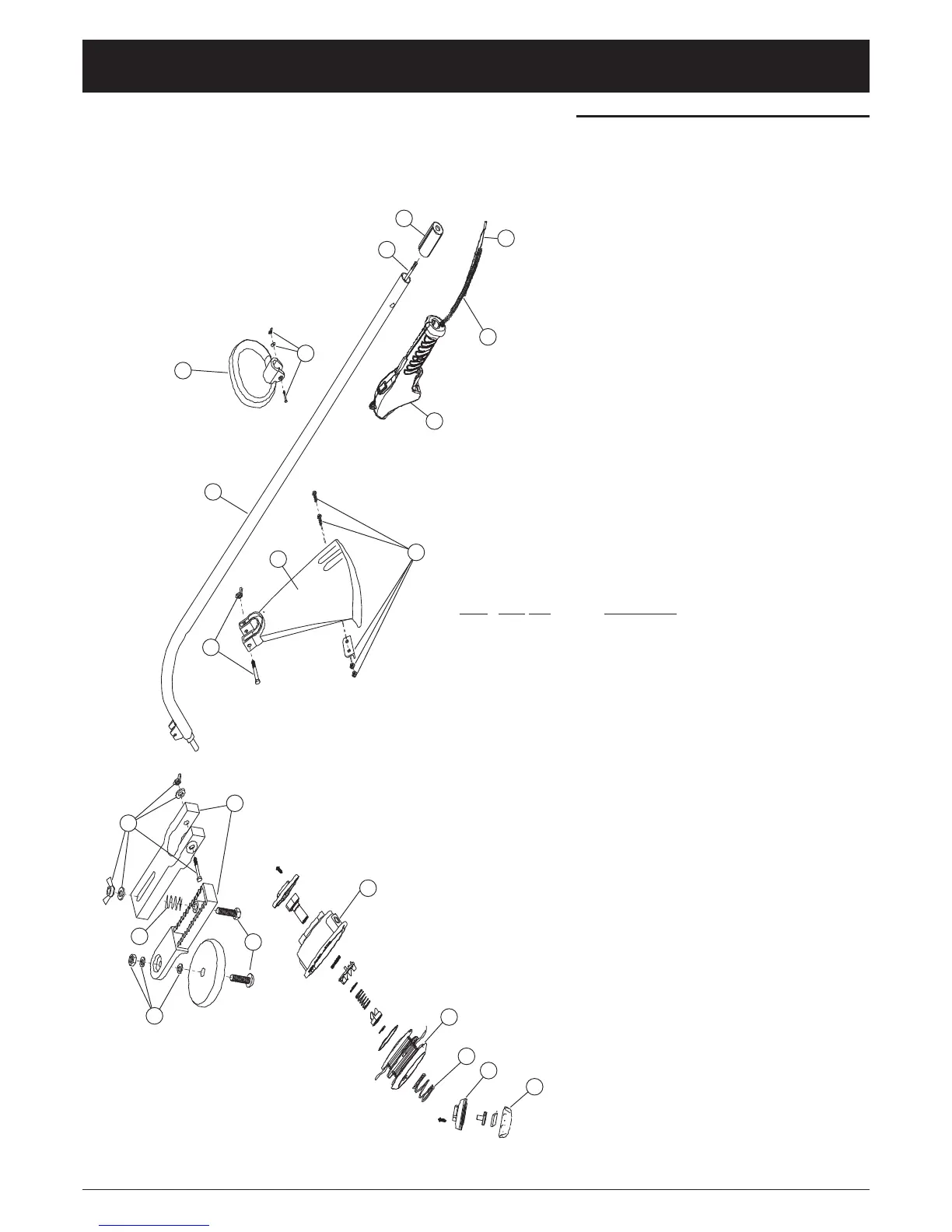

BOOM & TRIMMER PARTS - MODEL MCT33360E
