Yard Machines MCT333707 - ASSEMBLY INSTRUCTIONS; HANDLE ASSEMBLY AND ADJUSTMENT; CUTTING ATTACHMENT SHIELD INSTALLATION

7

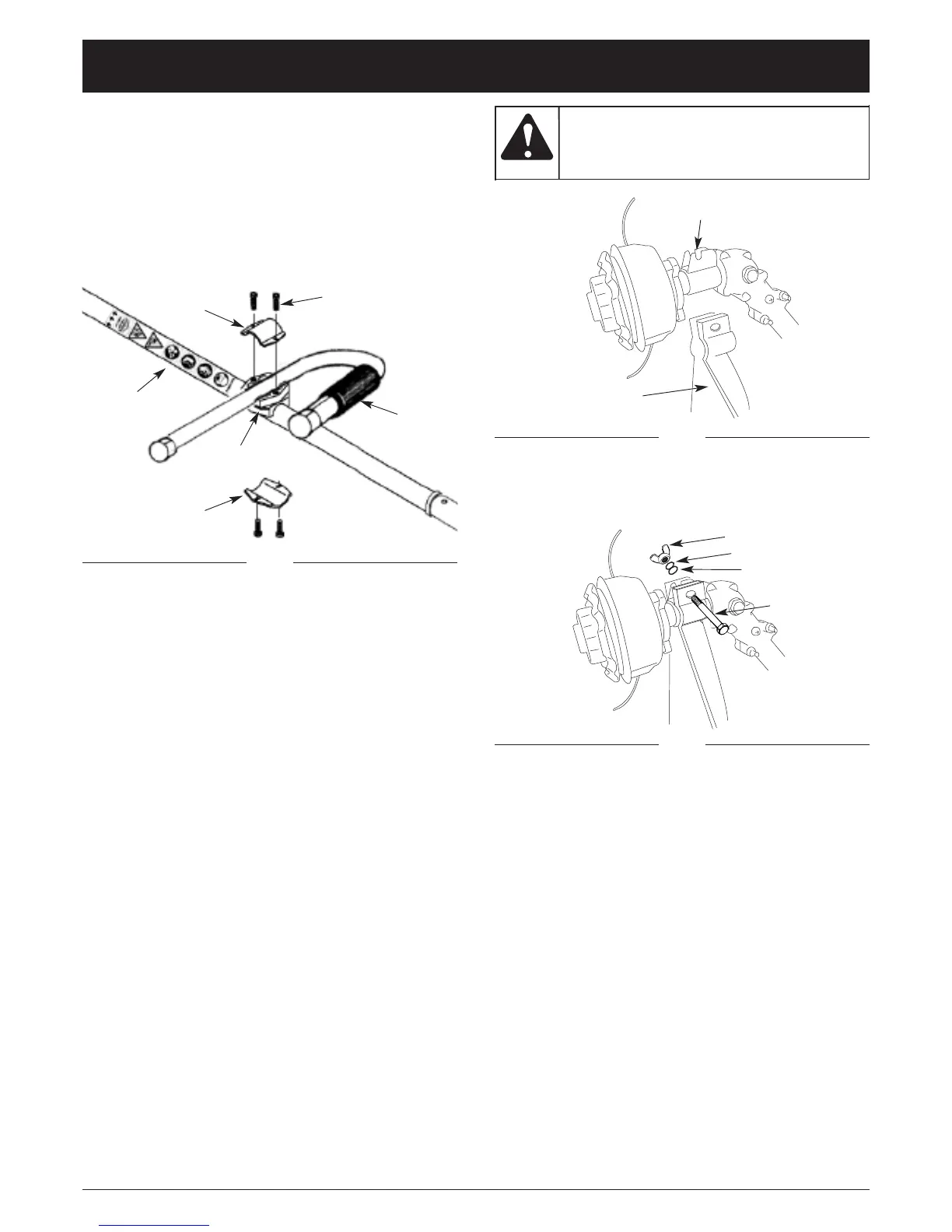

ASSEMBLY INSTRUCTIONS
INSTALL / ADJUST THE HANDLE
1. Install the middle clamp housing on the shaft near
the arrows on the sticker (warning label).
2. Put the lower clamp over the shaft and tighten the 2
screws.
3. Install the J handle on the middle clamp housing,
then put the upper clamp over the J-handle and
tighten the other 2 screws.
Screws
Handle
Lower
Clamp
Fig. 1
Shaft
INSTALL THE CUTTING ATTACHMENT SHIELD
NOTE: The cutting attachment shield must be installed
to properly dispense the trimming line.
To install the cutting attachment shield:
1. Place the cutting attachment shield onto the shaft
bracket (Fig. 2).
2. Insert the bolt through the shield, bracket, washer
and lock washer tighten with the wing nut (Fig. 3).
Bracket
Cutting Attachment
Shield
Fig. 3
Never operate the
trimmer without the
cutting attachment shield in place to pre-
vent serious personal injury.
WARNING:
Fig. 2
Upper
Clamp
Middle
Clamp
Bolt
Lock Washer
Washer
Wing Nut
