Avery Inst 3 - Beam Assembly - Side
Hardware
24 x #8 x 2-1/2” Wood Screw

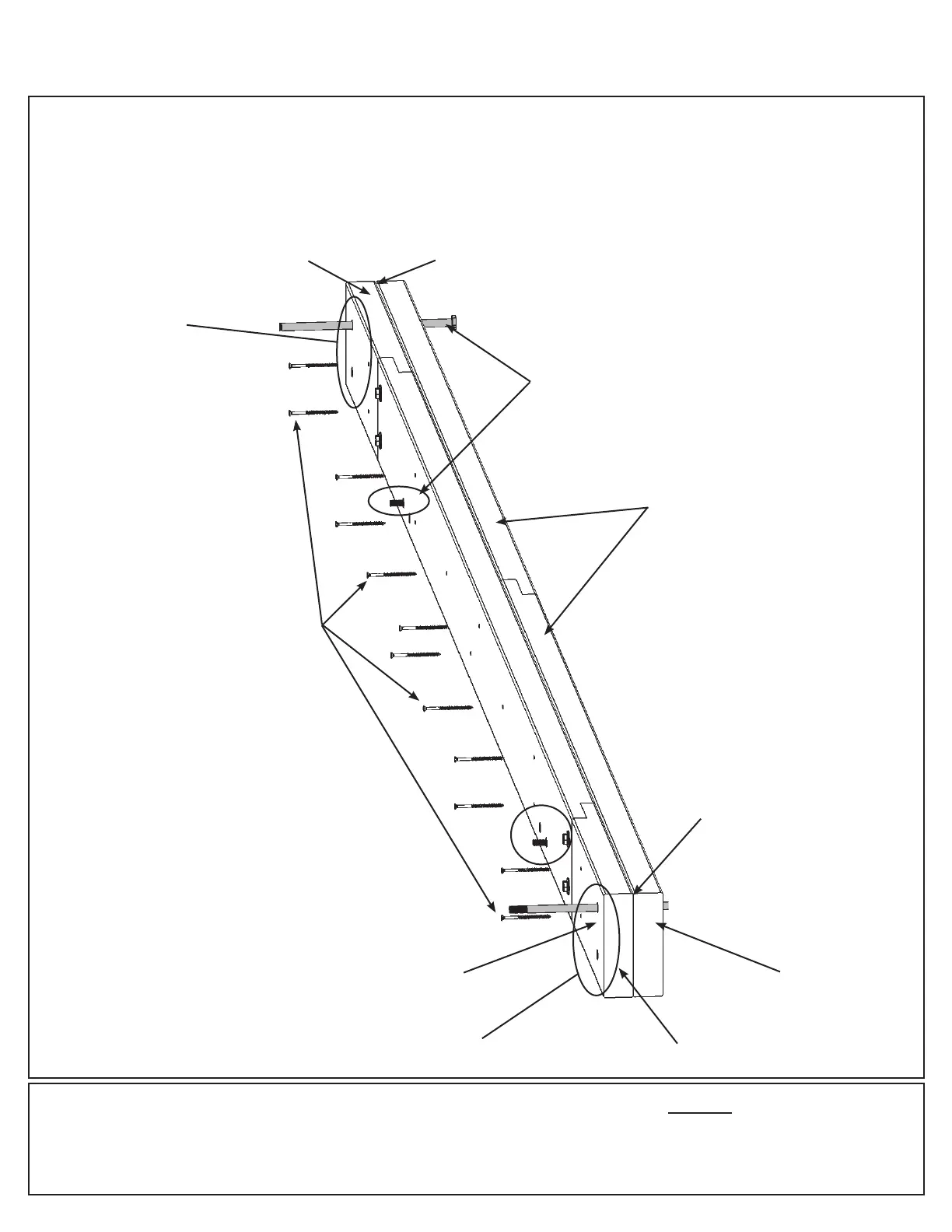

Fig. 4.3
Beam Inside
Assembly
Flush
Step 4: Beam Assembly - Side
Part 2
D: Place one Beam Side Assembly and one Beam Inside Assembly so the ends are ush. Match the bolt holes
in each (404) Beam End - Inside with the bolt holes in each (403) Beam Side. Attach assemblies with 12 #8 x
2-1/2” Wood Screws. (g. 4.3)
E: Repeat Step D one more times to make a second Beam Assembly - Side.
Flush
Beam Side
Assembly
#8 x 2-1/2” Wood
Screws (x 12 per
assembly)
Match
bolt
holes
(403)
Beam
Side
(404) Beam
End - Inside
(404) Beam
End - Inside
Match
bolt
holes
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
