Yardistry AVERY - Step 5: Frame Assembly and Anchoring Part 2

17 support@yardistrystructures.com
Avery Inst 4 - Frame Assembly
E: Make sure each corner is square and level then attach Beam Assemblies to Post Assemblies with two 5/16
x 4-3/4” Lag Screws (with 5/16” at washer) per corner. (g. 5.4)
F: Depending on what you are placing the Pavilion on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware
8 x 5/16 x 4-3/4” Lag Screw (5/16” at washer)
5/16” Flat
Washer
5/16 x 4-3/4”
Lag Screw
5/16 x 4-3/4”
Lag Screw

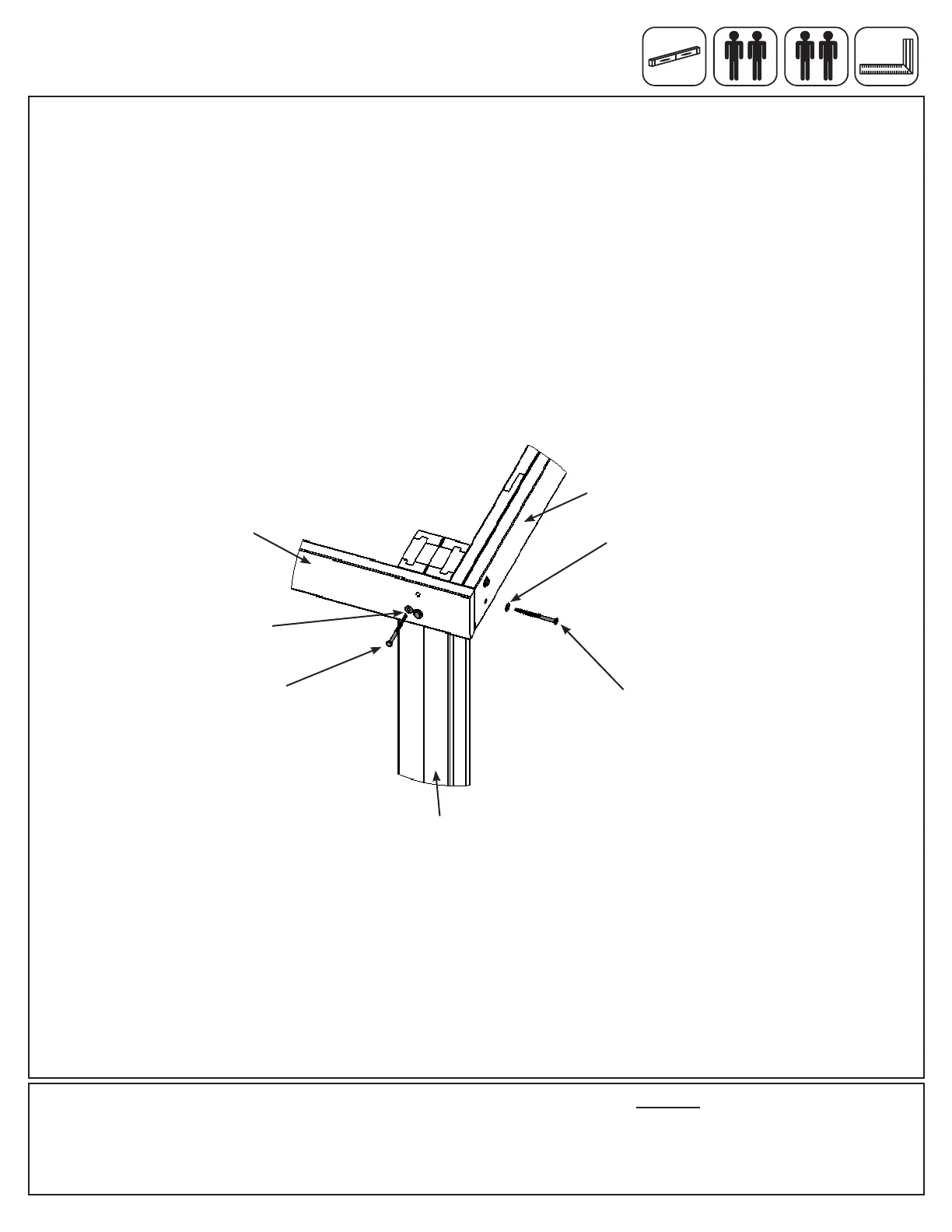

Fig. 5.4
Post Assembly
Step 5: Frame Assembly and Anchoring
Part 2
5/16” Flat
Washer
Beam Assembly
- Front/Back
Beam Assembly
- Side
