Yardistry AVERY - Step 7: Frame Roof Panel Part 1

19 support@yardistrystructures.com
Avery Inst 6A - Frame Roof Panel
Avery Inst 6A - Frame Roof Panel
A: Lay out 6 (412) Rafters on a hard at surface as shown in g. 7.1. You will need lots of room for this step.
B: Place 1 (419) Strap Long on the bottom of four (412) Rafters, ush to the outside edge of the rst and centred
on the last. Be sure the wider gap on (419) Strap Long is on the rst (412) Rafter. Follow by placing one (418)
Strap Short then another (419) Strap Long in the same manner. Make sure the assembly is square, pre-drill
the rst (419) Strap Long with a 1/8” drill bit as shown below, then attach both (419) Strap Longs with eight #8 x
1-1/2” Wood Screws per board and to (418) Strap Short with six #8 x 1-1/2” Wood Screws. The screws on the
fourth (412) Rafter are inserted at an angle. (g. 7.1, 7.2 and 7.3)
C: Place one (420) Rafter Top on the angled ends of the (412) Rafters so the outside edges are ush then attach
to three (412) Rafters with six #8 x 2-1/4” Wood Screws. (g. 7.1 and 7.4)
Step 7: Frame Roof Panel
Part 1

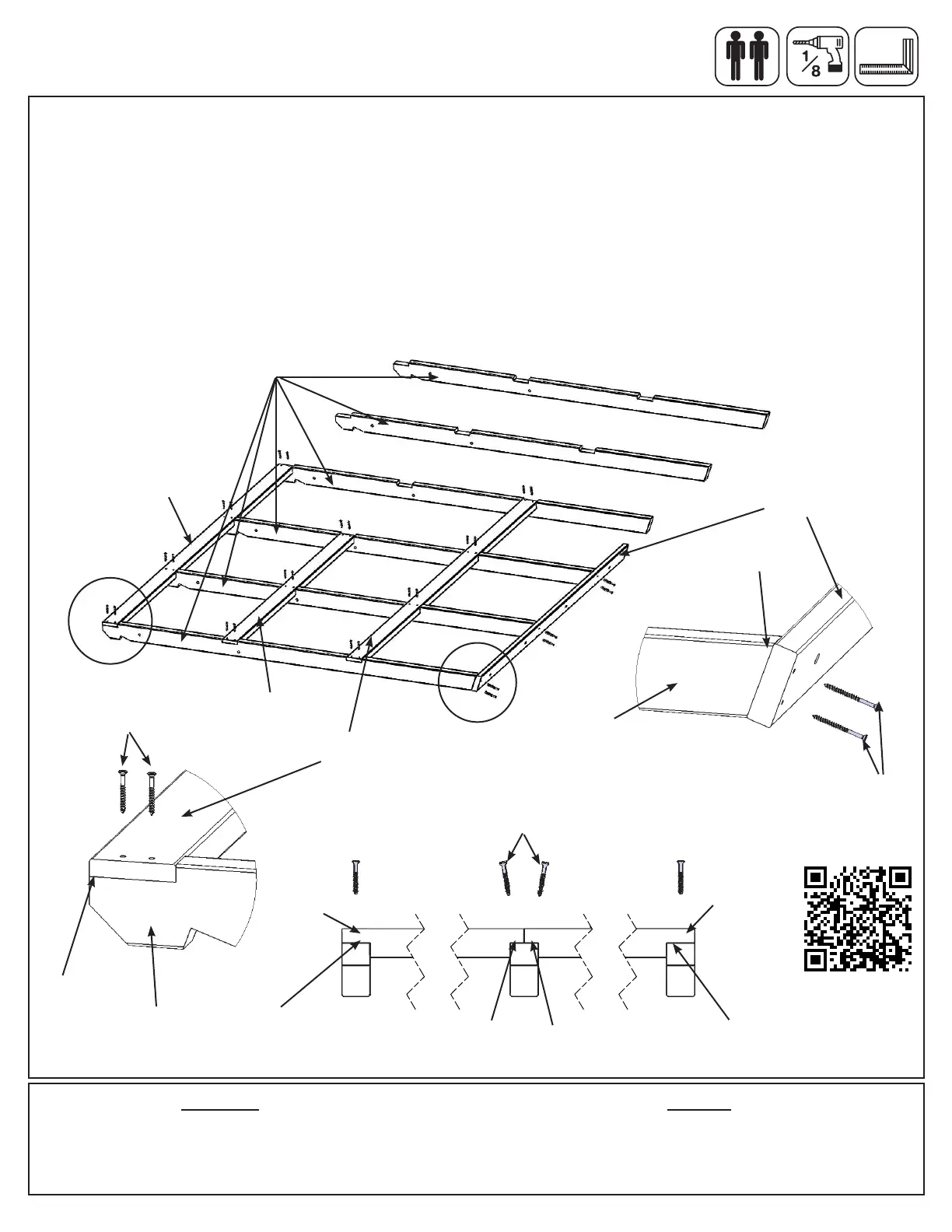

Fig. 7.1
Fig. 7.2
HardwareWood Parts
12 x (412) Rafter 31.8 x 76.2 x 1866.9 mm (1-1/4 x 3 x 73-1/2”)
2 x (418) Strap Short 31.8 x 76.2 x1275.8 mm (1-1/4 x 3 x 50-7/32”)
4 x (419) Strap Long 31.8 x 76.2 x 1905.6 mm (1-1/4 x 3 x 75-1/32”)
2 x (420) Rafter Top 25.4 x 81.8 x 1590.7 mm (1 x 3-7/32 x 62-5/8”)
44 x #8 x 1-1/2” Wood Screw
12 x #8 x 2-1/4” Wood Screw
(418) Strap
Short
(419) Strap Long
(pre-drill pilot holes
for this board only)
(420)
Rafter Top
(412) Rafter
Flush
Notice
screws at
an angle
Flush
(419) Strap
Long
(412)
Rafter
(412) Rafter
Fig. 7.3
Fig. 7.4
(418) Strap
Short
(419) Strap
Long
Notice large
notch gap on
outside ends
Notice small notch
gap on inside ends
where straps meet
Notice large
notch gap on
outside ends
#8 x 1-1/2” Wood
Screws (x 22)
#8 x 2-1/4”
Wood Screws
(x 6)
Side View
Bottom
http://bit.ly/avery7-9
