Yardistry AVERY - Step 7: Frame Roof Panel Part 3

21 support@yardistrystructures.com
HardwareWood Parts
Fig. 7.6
12 x #8 x 1-3/4” Wood Screw
2 x (413) Rafter Brace 25.4 x 81.8 x 590.6 mm (1 x 3-7/32 x 23-1/4”)
(To be used as
guides only in
this step)
Flush

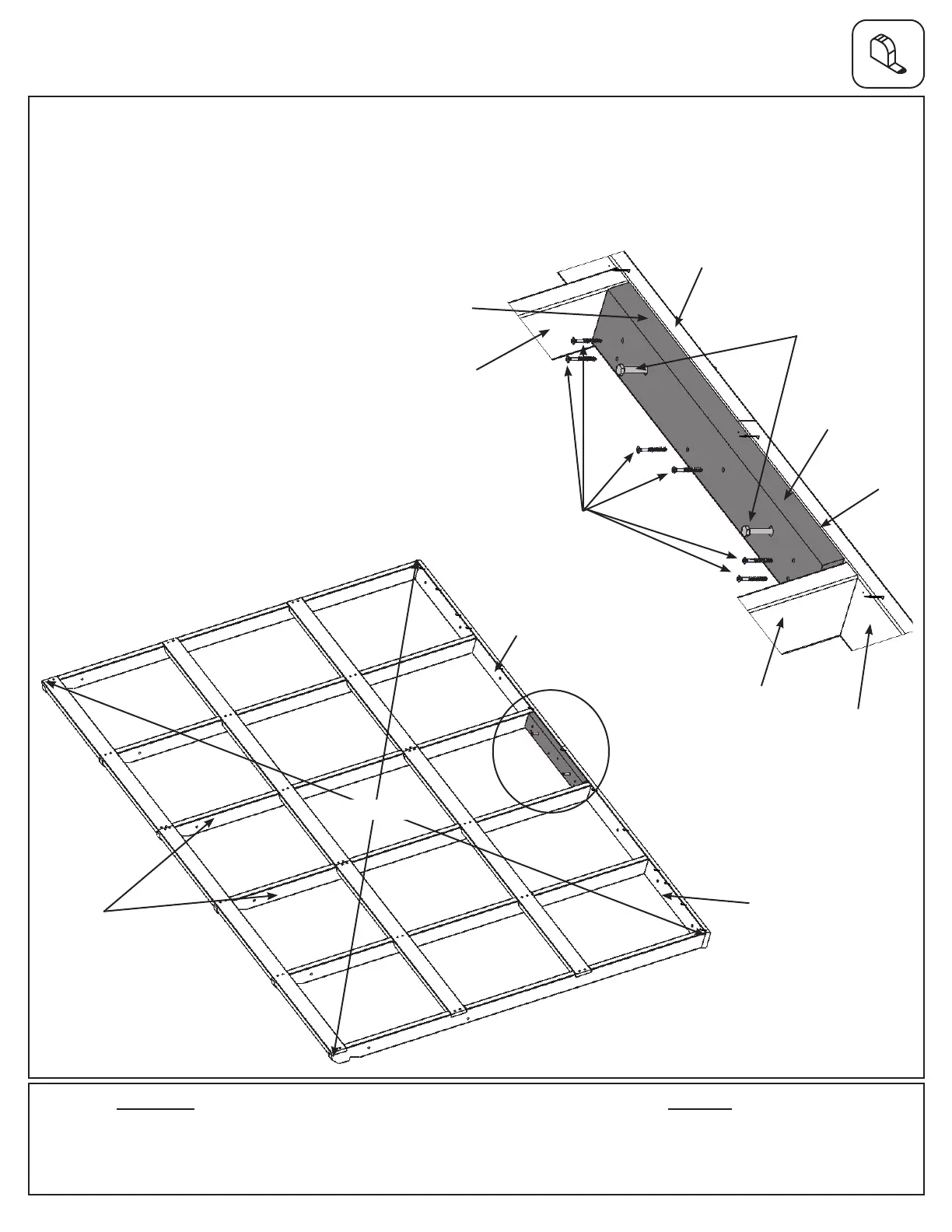

F: Make sure frame is square. Measurements to be as shown in g. 7.6.
G: In between the middle two (412) Rafters place one (413) Rafter Brace ush to the top of (420) Rafter Tops.
Use two 1/4 x 4-3/4” Hex Bolts as a guide to line up the bolt holes. Attach (413) Rafter Brace to (420) Rafter Tops
with six #8 x 1-3/4” Wood Screws. Remove both Hex Bolts as they will be used in a later step and not installed
here. Note: Angle is at the top of (413) Rafter Brace. (g. 7.6 and 7.7)
H: Repeat Steps A - G to create a second Roof Panel Frame.
Step 7: Frame Roof Panel
Part 3
#8 x 1-3/4
Wood Screws
Fig. 7.7
(420)
Rafter Top
(412)
Rafter
(412) Rafter
(412)
Rafter
(413) Rafter
Brace
1/4 x 4-3/4”
Hex Bolt
(420)
Rafter Top
(420)
Rafter Top
(420)
Rafter Top
Notice
angle at top
of board
145-11/16”
