Step 8: Attach Roof Panels
Part 1
Note: Be sure to remove all plastic covering on both sides of the metal panels directly before installing
each piece.

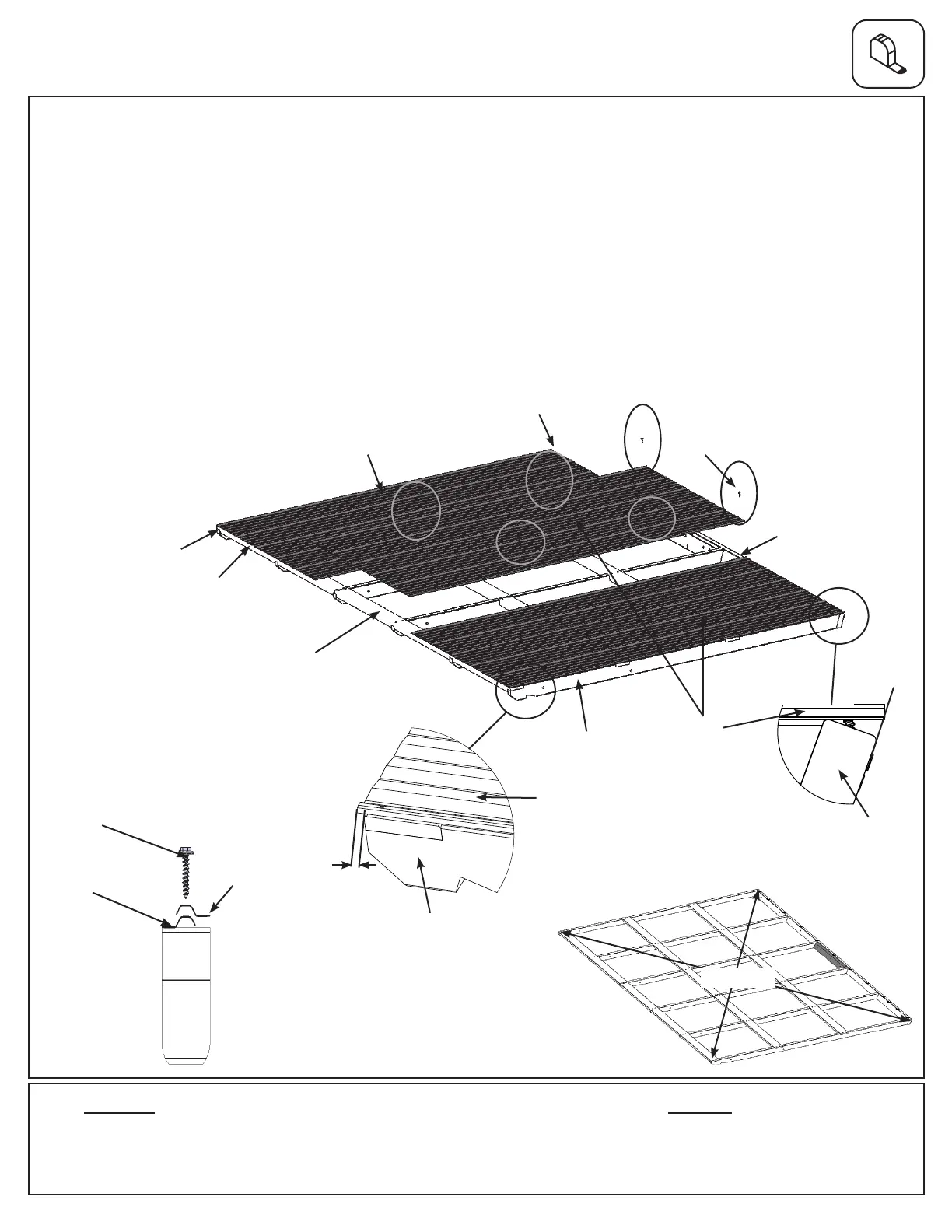

A: Make sure panel is still square then on one Roof Panel Frame place 1 Roof Panel ush to the top and sides of
each outside (412) Rafter. Roof Panels should be ush to the top of the Rafter Tops. There will be approximately
a 5/16” overhang at the bottom. Holes not on rib to the top. (g. 8.1, 8.2, 8.3 and 8.4)
B: Place a third Roof Panel in the centre between the rst two Roof Panels so the panels overlap and screw
holes line up as shown below. (g. 8.1 and 8.5)
C: Attach all three Roof Panels to Roof Panel Frame using six #8 x 1” Hex Roong Screws in locations shown in
g. 8.1. Do not install screws to the outside (418) Strap Short and (419) Strap Long. Be sure not to overtighten
screws.
D: Repeat Steps A - C for the second Roof Panel Frame.
Fig. 8.5
12 x #8 x 1” Hex Roong Screw
Roof Parts
6 x Roof Panel
Side View
Panels overlap
at the seams
(412) Rafter
#8 x 1” Hex
Roong
Screws x 6
Roof
Panel
DO NOT overtighten
screws, could cause
damage to roong
material
Flush
(412)
Rafter
Roof
Panel
Roof
Panel
Roof
Panel
(420) Rafter Top
(hidden)
(420)
Rafter Top
(418) Strap
Short
(419) Strap
Long
#8 x 1” Hex
Roong
Screws
Fig. 8.1
145-11/16”
Fig. 8.4
(420)
Rafter Top
Fig. 8.2
Side View
Fig. 8.3
(412) Rafter
Roof
Panel
5/16”
Bottom
Top
