Yardistry AVERY - Step 9: Attach Roof Panels to Frame Part 1

28 support@yardistrystructures.com
A: With four assemblers lift one Roof Panel Frame up and over Post and Beam Frame Assembly so the notches
in (412) Rafters rest on Beam Assembly - Side and (420) Rafter Tops are ush to the outside of each (406) End
Gable Centre Back. One assembler must remain on a ladder to hold Roof Panel Frame in place until
secured. (g. 9.1, 9.2 and 9.3)
B: Lift the second Roof Panel Frame so the notches in (412) Rafters rest on Beam Assembly - Side and (420)
Rafter Tops are ush to the outside of each (406) End Gable Centre Back is tight to the rst Roof Panel Frame.
(g. 9.1, 9.2 and 9.3)

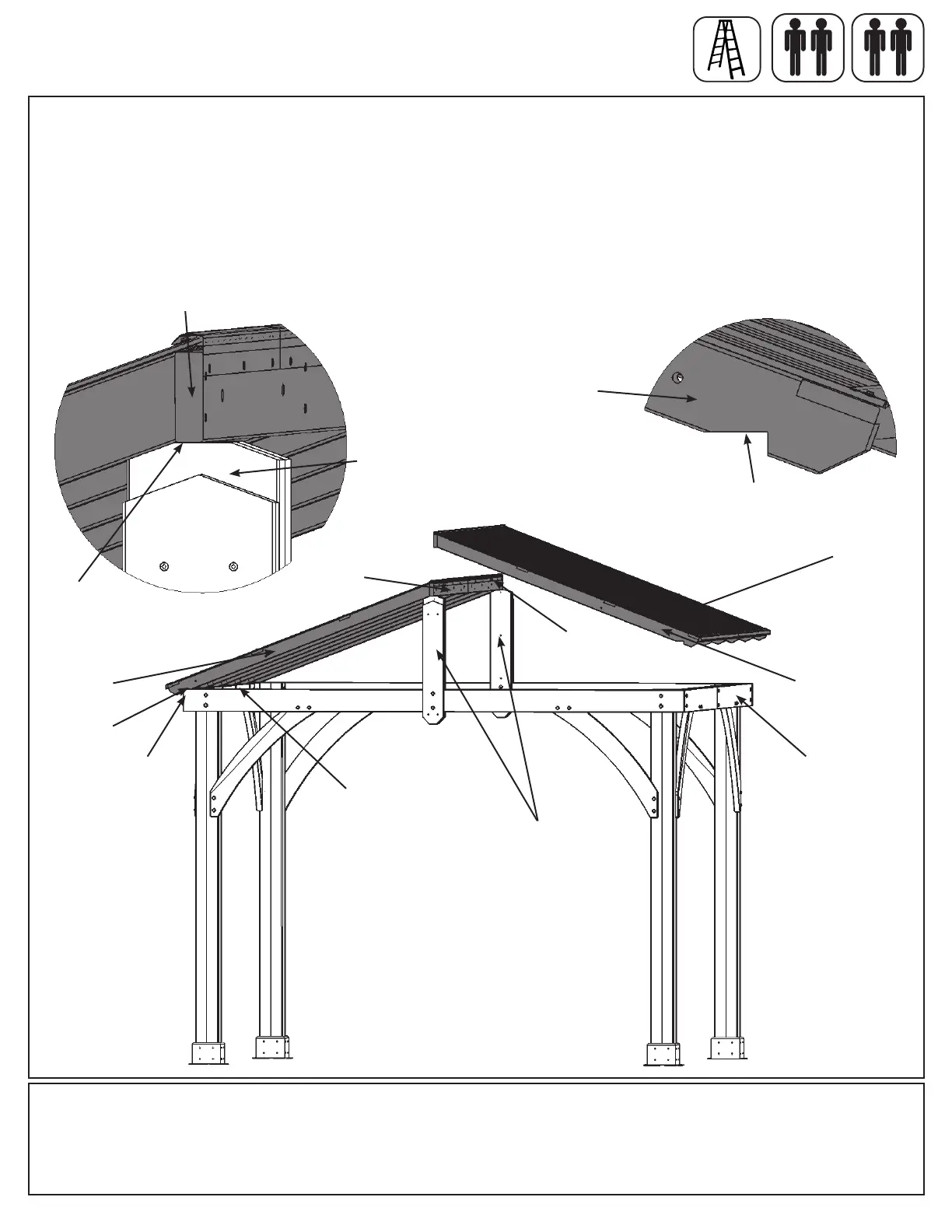

Step 9: Attach Roof Panels to Frame
Part 1
Fig. 9.1
Roof Panel
Frame
Fig. 9.2
Notch rests on Beam
Assembly - Side
One assembler to support Roof
Panel Frames at all times until
secure
Beam Assembly
- Side
Beam Assembly
- Side
x 3
Fig. 9.3
Flush
Flush and
Tight
Roof Panel
Frame
(406) End
Gable Centre
Back
(420) Rafter
Top
(406) End Gable
Centre Back
(420) Rafter
Top
(420) Rafter
Top
(412)
Rafter
(412)
Rafter
(412)
Rafter
