Avery Inst 6D - Attach Roof Panels
Avery Inst 6D - Attach Roof Panels

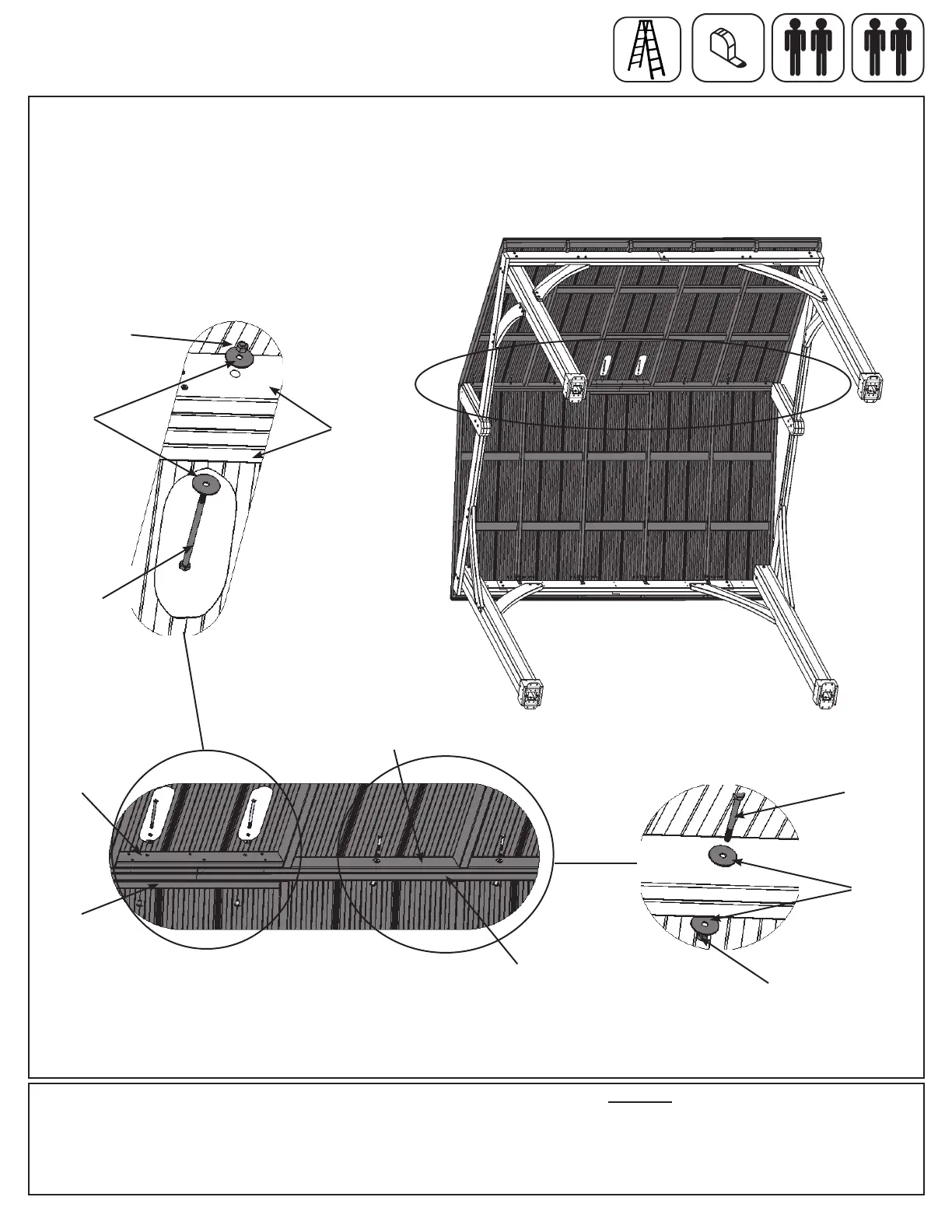

Step 9: Attach Roof Panels to Frame
Part 2
Fig. 9.6
C: From inside the assembly attach the two Roof Panel Frames together through both (413) Rafter Braces with
two 1/4 x 4-3/4” Hex Bolts (with two 1/4” large at washer and one 1/4” lock nut) and through (420) Rafter Tops with
six 1/4 x 2-3/4” Hex Bolt (with two 1/4” large at washer and one 1/4” lock nut). (g. 9.4, 9.5, 9.6 and 9.7)
Fig. 9.5
Fig. 9.4
x 3
Fig. 9.7
Hardware
2 x 1/4 x 4-3/4” Hex Bolt
(1/4” large at washer x 2, 1/4” lock nut)
6 x 1/4 x 2-3/4” Hex Bolt
(1/4” large at washer x 2, 1/4” lock nut)
1/4”
Lock
Nut
1/4”
Large Flat
Washer
1/4 x
4-3/4”
Hex Bolt
(413)
Rafter
Brace
(420)
Rafter Top
(420)
Rafter Top
1/4”
Lock
Nut
1/4 x 2-3/4”
Hex Bolt
(413)
Rafter
Brace
(413)
Rafter
Brace
Section of Roof
Panel removed for
Clarity
1/4”
Large Flat
Washer
