Yardistry AVERY - Step 9: Attach Roof Panels to Frame Part 3

30 support@yardistrystructures.com

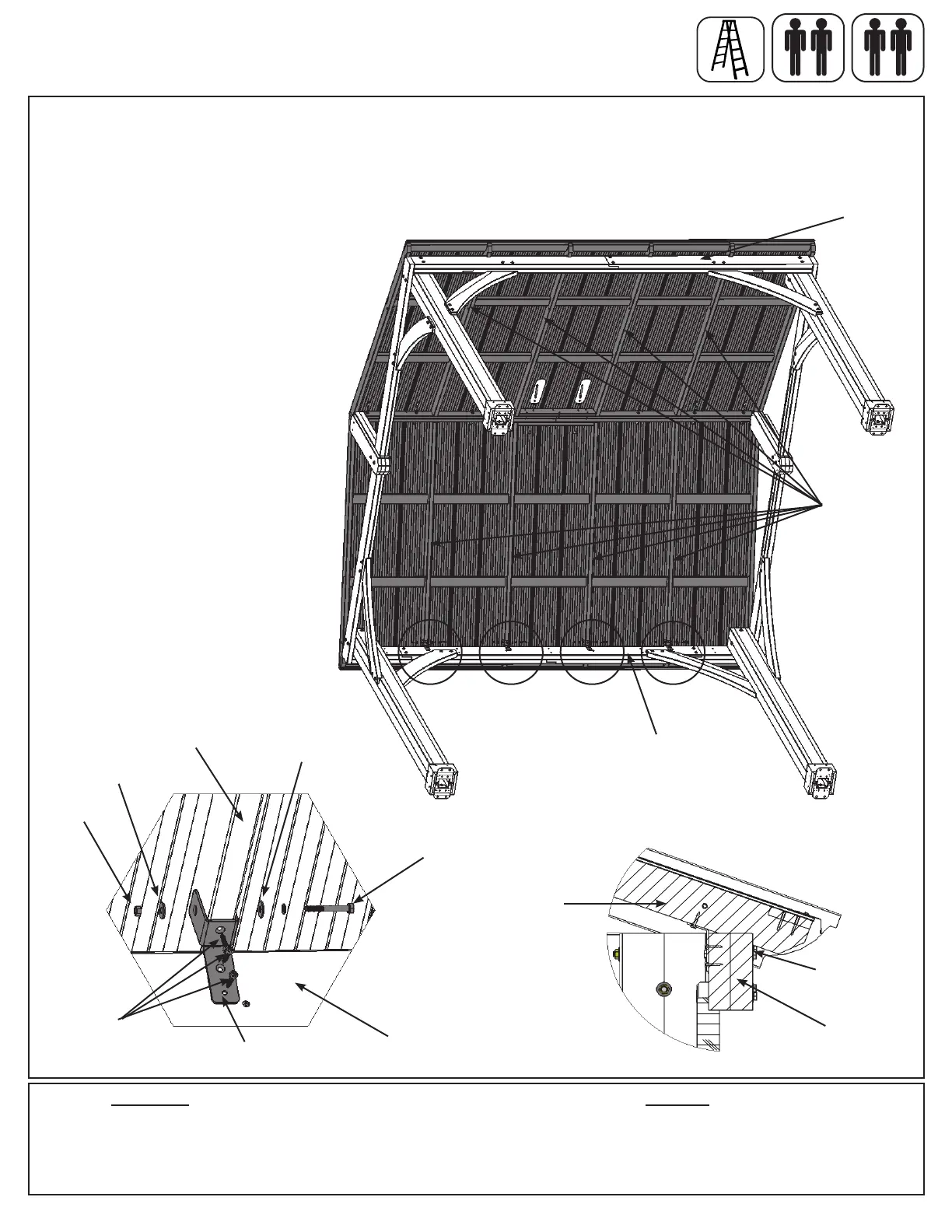

D: Loosely attach each of the centre (412) Rafters to the inside of each Beam Assembly - Side with one Roof
to Beam Bracket per (412) Rafter using one 1/4 x 2” Hex Bolt (with two 1/4” at washers and one 1/4” lock nut)
per bracket. Push up on the centre of the Roof Panels so the notches in (412) Rafters are tight to the Beam
Assembly - Side then attach three #10 x 1-1/4” Pan Screws per bracket. Once screws are installed tighten bolts.
(g. 9.8, 9.9 and 9.10)
Avery Inst 6D - Attach Roof Panels
Fig. 9.8
Fig. 9.9
Hardware
8 x 1/4 x 2” Hex Bolt (1/4” at washer x 2, 1/4” lock nut)
24 x #10 x 1-1/4” Pan Screw
Step 9: Attach Roof Panels to Frame
Part 3
x 3
1/4” Flat
Washer
1/4” Lock
Nut
1/4 x 2”
Hex Bolt
Beam
Assembly -
Side
Beam
Assembly -
Side
8 x Roof to Beam Bracket
Component
(412)
Rafter
(412)
Rafter
#10 x 1-1/4”
Pan Screw
1/4” Flat
Washer
Roof to Beam
Bracket
Beam
Assembly -
Side
Beam
Assembly -
Side
Tight
(412)
Rafter
Fig. 9.10
