Yardistry AVERY - Step 13: Truss Assemblies Part 3

37 support@yardistrystructures.com
Hardware
40 x #10 x 1-1/4” Pan Screw
8 x #10 x 2-1/2” Pan Screw
E: Secure each Tie Wrap Bracket to (416) Tie with one #10 x 1-1/4” Pan Screw per bracket. (g. 13.9 and
13.10)
F: Make sure (412) Rafter and (416) Tie are tight to each other. Pre-drill with a 1/8” drill bit then secure Tie Wrap
Brackets to (416) Tie and (412) Rafter with one #10 x 2-1/2” Pan Screw per bracket. (g. 13.9 and 13.10)
G: Secure Tie Wrap Brackets to (412) Rafter with four #10 x 1-1/4” Pan Screws per bracket then tighten bolts in
Tie Wrap Brackets (g. 13.9 and 13.10)
H: Repeat Steps A - G three more times. (g. 13.9)

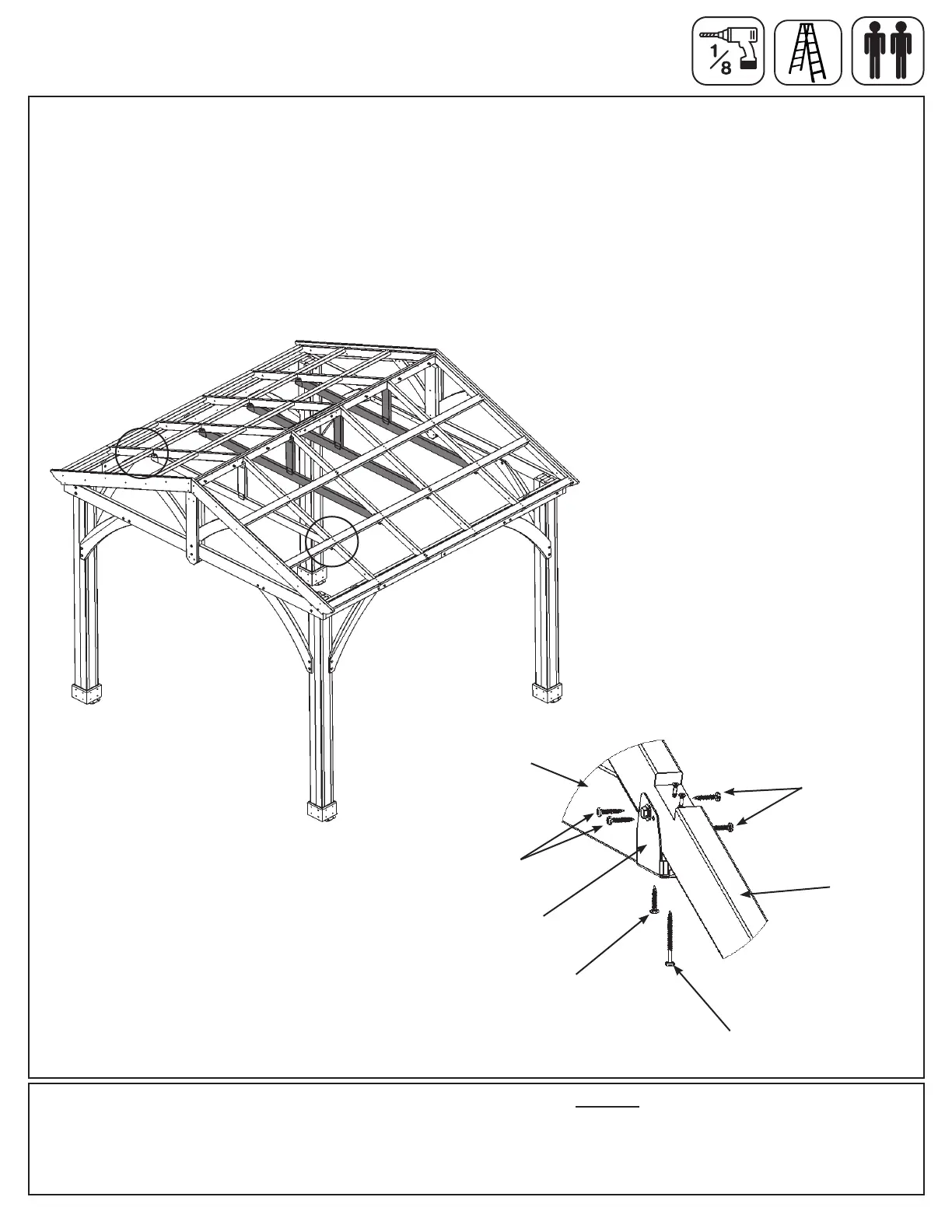

Fig. 13.9
Fig. 13.10
#10 x 1-1/4”
Pan Screw
Step 13: Truss Assemblies
Part 3
#10 x 2-1/2” Pan Screw
(pre-drill before installing)
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
(416) Tie
(412)
Rafter
Tie Wrap
Bracket
Roof Panel
removed for
clarity
Pieces removed
for clarity
