Yardistry AVERY - Step 13: Truss Assemblies Part 2

36 support@yardistrystructures.com
Fig. 13.6
Fig. 13.5

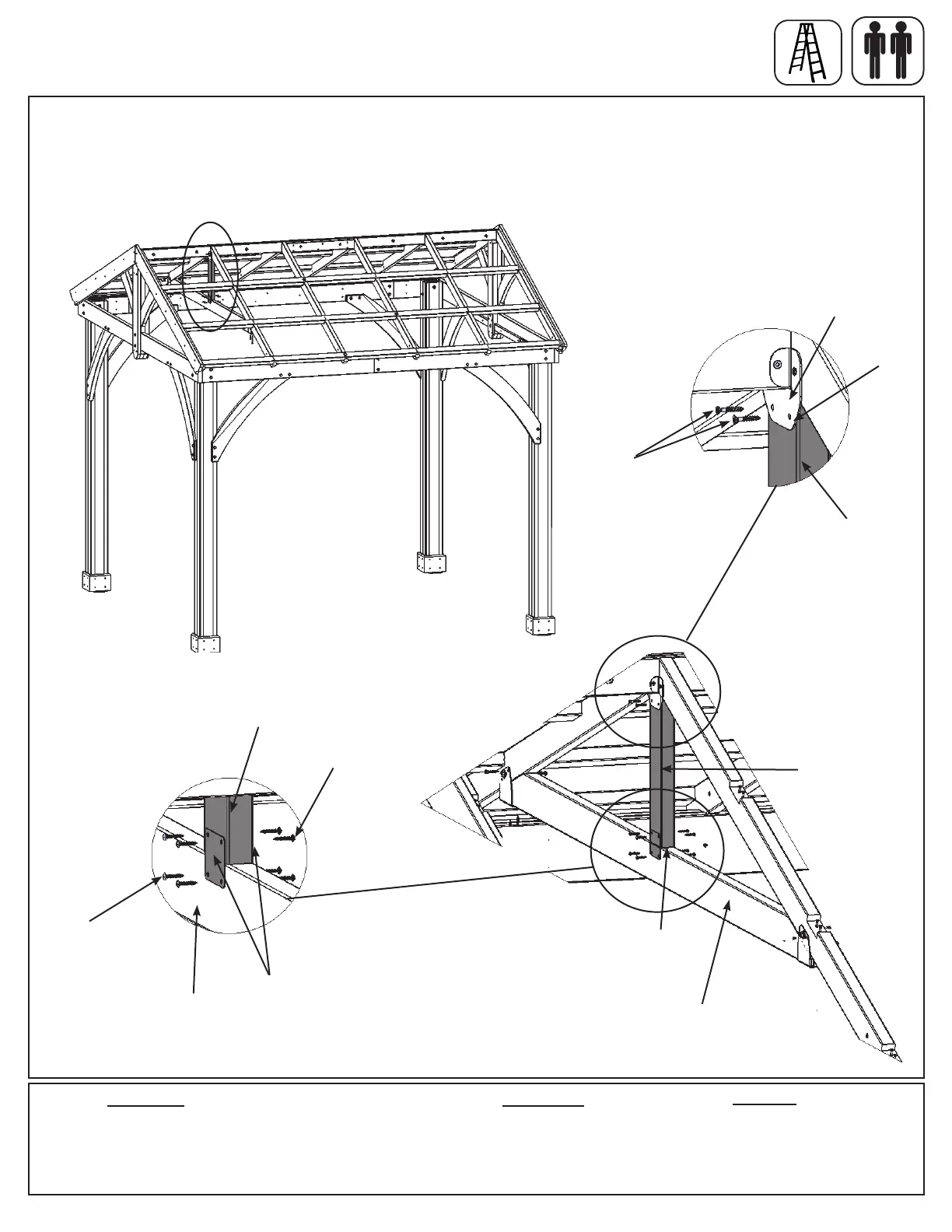

D: Place one (417) Tie Brace tight against the Tie Centre Bracket and tight to the top of (416) Tie. Attach Tie
Centre Bracket to (417) Tie Brace with two #8 x 1” Pan Screws and (416) Tie to (417) Tie Brace using two Jamb
Mounts (one per side) with four #8 x 1” Pan Screws per mount. (g. 13.5, 13.6, 13.7 and 13.8)
Hardware
40 x #8 x 1” Pan Screw
Componets:
8 x Jamb Mount
Jamb
Mount
Fig. 13.7
Fig. 13.8
#8 x 1”
Pan Screw
Tight
Step 13: Truss Assemblies
Part 2
Wood Parts
4 x (417) Tie Brace 31.8 x 88.9 x 352.6 mm (1-1/4 x 3-1/2 x 13-7/8”)
Tight
Tie Centre
Bracket
(416) Tie
(416) Tie
(417) Tie
Brace
(417) Tie Brace
(417) Tie
Brace
Roof Panel
removed for
clarity
#8 x 1” Pan
Screw x 4
#8 x 1” Pan
Screw x 4
