Yardistry AVERY - Part Identification

8 support@yardistrystructures.com

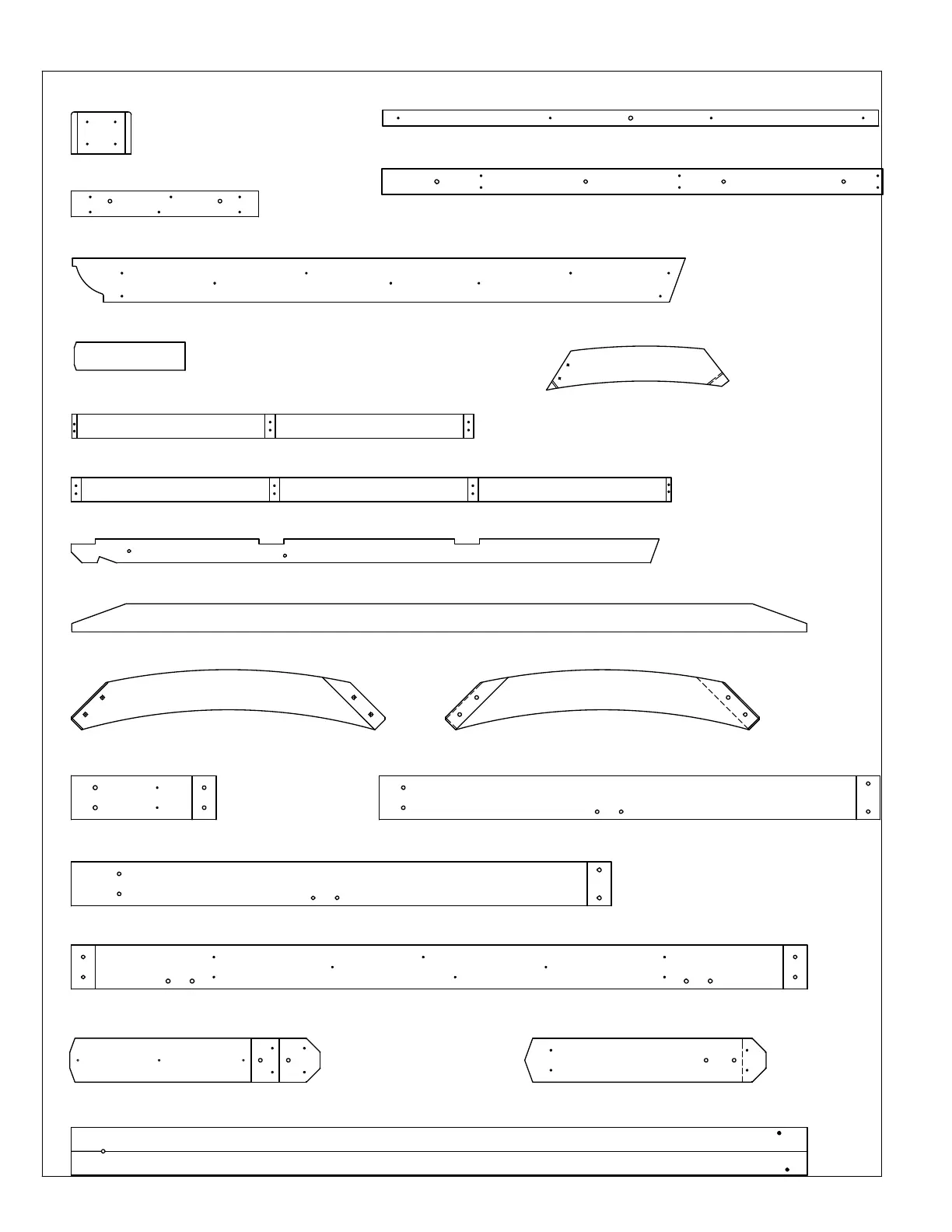

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
4pc. (423) - 6 x 6 Post
152.4 X 152.4 X 2336.8mm (6 x 6 x 92")
Y70119-423
4pc. (330) - Gusset Right
38.1 x 190.5 x 1003.3mm (1-1/2 x 7-1/2 x 39-1/2")
Y70119-330
16pc. (422) - Plinth 6 x 6 Post
19.1 x 133.4 x 190.5mm (3/4 x 5-1/4 x 7-1/2")
Y50119-422
4pc. (404) - Beam End - Inside
38.1 x 139.7 x 460.4mm (
1-1/2 x 5-1/2 x 18-1/8")
Y50119-404
4pc. (401) - Beam Front Back
38.1 x 139.7 x 1714.5mm (1-1/2 x 5-1/2 x 67-1/2")
Y50119-401
2pc. (402) - Beam Inside
38.1 x 139.7 x 2336.8mm (1-1/2 x 5-1/2 x 92")
Y50119-402
Y50119-403
38.1 x 139.7 x 1590.7mm (1-1/2 x 5-1/2 x 62-5/8")
4pc. (403) - Beam Side
12pc. (412) - Rafter
31.8 x 76.2 x 1866.9mm (1-1/4 x 3 x 73-1/2")
Y50119-412
4pc. (415) - Gable End
25.4 x 139.7 x 1946.3mm (1 x 5-1/2 x 76-5/8")
Y50119-415
Y50119-405
25.4 x 50.8 x 1574.8mm (1 x 2 x 62")
2pc. (405) - Cross Gusset Support
4pc. (331) - Gusset Left
38.1 x 190.5 x 1003.3mm (1-1/2 x 7-1/2 x 39-1/2")
Y70119-331
4pc. (414) - Gable Gusset
31.8 x 133.4 x 580.1mm (1-1/4 x 5-1/4 x 22-27/32")
Y50119-414
6pc. (419) - Strap Long
31.8 x 76.2 x 1905.6mm (1-1/4 x 3 x 75-1/32")
Y50119-419
6pc. (418) - Strap Short
31.8 x 76.2 x 1275.8mm (1-1/4 x 3 x 50-7/32")
Y50119-418
Y50119-420
25.4 x 81.8 x 1590.7mm (1 x 3-7/32 x 62-5/8")
4pc. (420) - Rafter Top
Y50119-413
25.4 x 81.8 x 590.6mm (1 x 3-7/32 x 23-1/4")
2pc. (413) - Rafter Brace
2pc. (409) - End Gable Centre Front
88.9 x 139.7 x 766.3mm (3-1/2 x 5-1/2 x 30-11/64")
Y70119-409
2pc. (406) - End Gable Centre Back
76.2 x 139.7 x 795.5mm (3 x 5-1/2 x 31-5/16")
Y70119-406
4pc. (416) - Tie
31.8 x 88.9 x 2333.6mm (1-1/4 x 3-1/2 x 91-7/8")
Y50119-416
4pc. (417) - Tie Brace
31.8 x 88.9 x 352.6mm (1-1/4 x 3-1/2 x 13-7/8")
Y50119-417
