Note: The bevelled ends on each gusset should always face away from the wood it is attaching to.
A: Make sure the assembly is still square and level then facing one Beam Assembly place one (330) Gusset
Right on the right hand side so the top ts tight to the Beam Assembly and the bottom ts tight to the Post
Assembly. Attach gusset to Beam Assembly with two 5/16 x 3-3/4” Hex Bolts (with 5/16” lock washer, 5/16” at
washer and 5/16” t-nut) and to Post Assembly with two 1/4 x 2-1/2” Wafer Lags (with 5/16” at washer). (g. 5.1,
5.2 and 5.3)
B: Repeat Step A on the left hand side with one (331) Gusset Left. (g. 5.1, 5.2 and 5.3)
C: Repeat Steps A and B for each Beam Assembly/Post Assembly. (g. 5.1, 5.2 and 5.3)
D: At each corner, tight to the outside edges of the joining Beam Assemblies attach one Roof to Post Bracket with
two #10 x 1-1/4” Pan Screws. (g. 5.3 and 5.4)

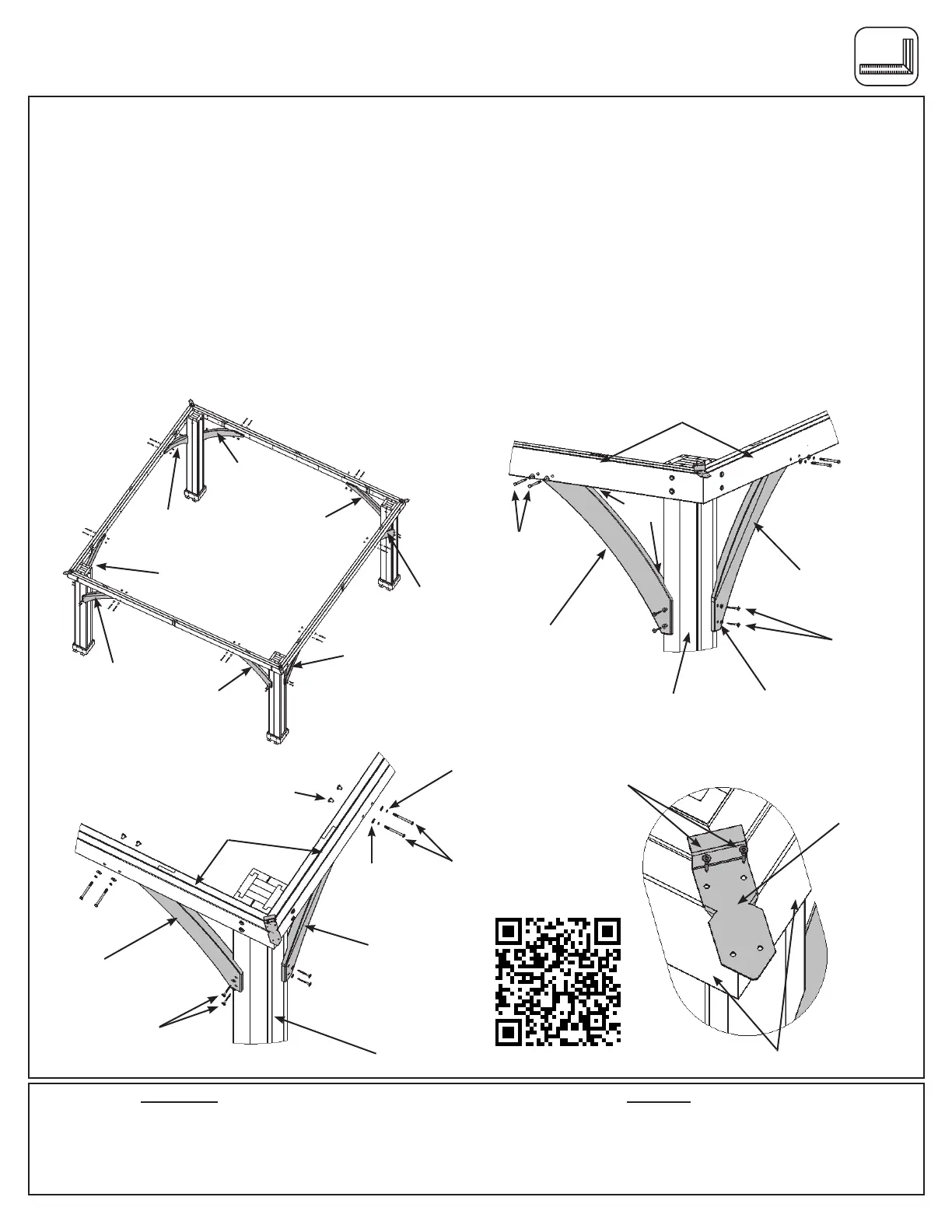

Step 5: Attach Gussets and Roof Brackets
Fig. 5.1
Tight
4 x (330) Gusset Right 38.1 x 190.5 x 1003.3 mm (1-1/2 x 7-1/2 x 39-1/2”)
4 x (331) Gusset Left 38.1 x 190.5 x 1003.3 mm (1-1/2 x 7-1/2 x 39-1/2”)
HardwareWood Parts
16 x 1/4 x 2-1/2” Wafer Lag (5/16” at washer)
16 x 5/16 x 3-3/4” Hex Bolt (5/16” lock washer, 5/16” at washer, 5/16” t-nut)
8 x #10 x 1-1/4” Pan Screw
4 x Roof to Post Bracket
Fig. 5.2
(330) Gusset
RIght
Roof to Post
Bracket
#10 x 1-1/4”
Pan Screw
(331) Gusset
Left
Beam
Assembly
Post
Assembly
(330) Gusset
RIght
(331) Gusset
Left
Beam
Assembly
Post
Assembly
Beam
Assembly
5/16” Flat
Washer
1/4 x 2-1/2”
Wafer Lag
5/16”
T-nut
5/16” Lock
Washer
1/4 x 2-1/2”
Wafer Lag
5/16” Flat
Washer
5/16 x 3-3/4”
Hex Bolt
5/16 x 3-3/4”
Hex Bolt
Fig. 5.3
Fig. 5.4
(330) Gusset
RIght
(331) Gusset
Left
(330) Gusset
RIght
(331) Gusset
Left
(330) Gusset
RIght
(331) Gusset
Left
(330) Gusset
RIght
(331) Gusset
Left
