20 support@yardistrystructures.com

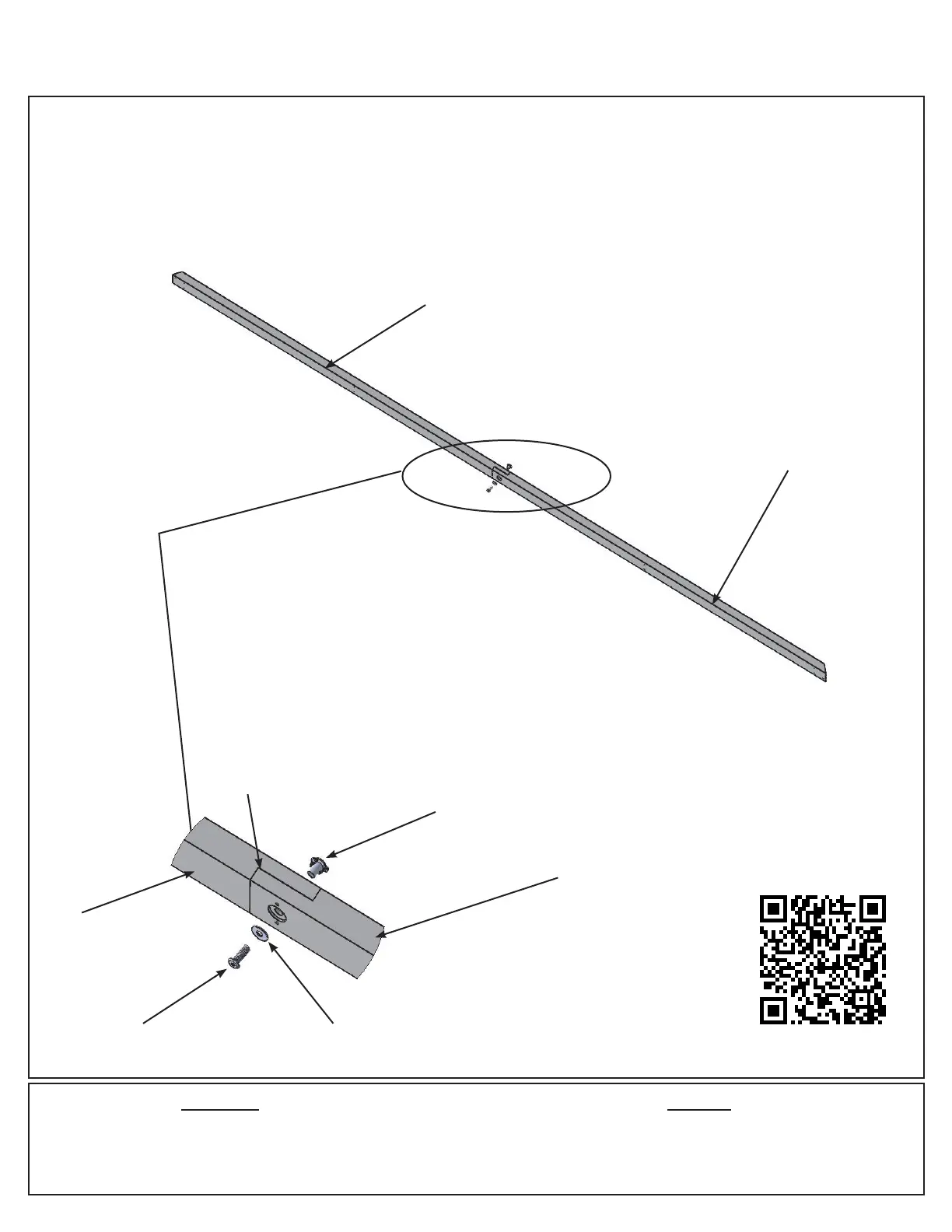

A: Tightly connect one (341) Fascia Left and one (342) Fascia Right using one 5/16 x 1” Wafer Bolt (with 5/16”
at washer and 5/16” t-nut) as shown in g. 6.1 and 6.2.
B: Repeat Step A three more times to make four Fascia Beam Assemblies.
Step 6: Fascia Beam Assembly
Fig. 6.1
Fig. 6.2
HardwareWood Parts
4 x (341) Fascia Left 31.8 x 82.6 x 1866.9 mm (1-1/4 x 3-1/4 x 73-1/2”)
4 x (342) Fascia Right 31.8 x 82.6 x 1866.9 mm (1-1/4 x 3-1/4 x 73-1/2”)
4 x 5/16 x 1” Wafer Bolt (5/16” at washer, 5/16” t-nut)
(342) Fascia
RIght
(341) Fascia
Left
(342) Fascia
RIght
(341)
Fascia Left
5/16” Flat
Washer
5/16”
T-nut
5/16 x 1”
Wafer Bolt
Tight
