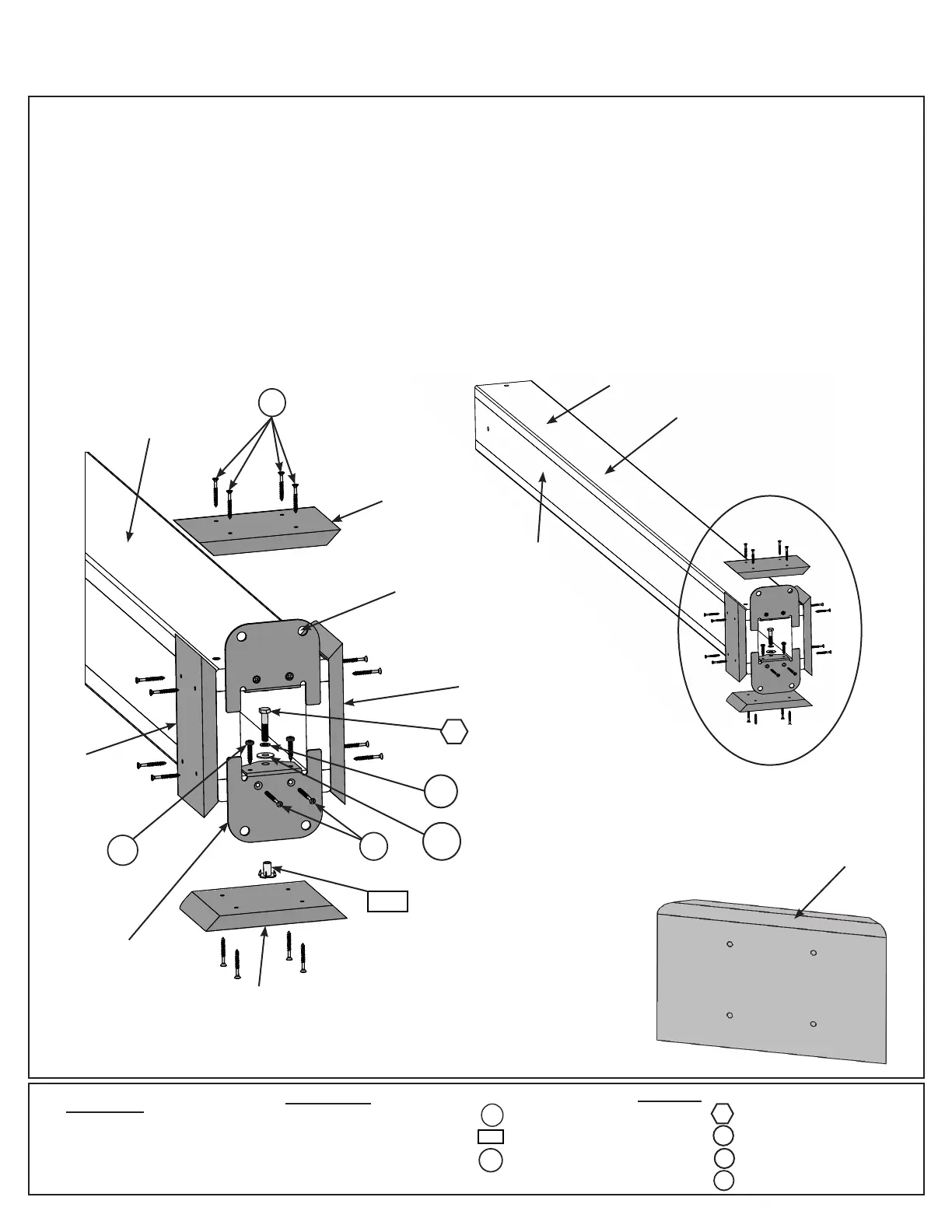

A: At the bottom of one (2220) insert two TN2 on the outside of each narrow side. (F2.2)
B: At the bottom of the same (2220) place two Post Mounts tight to the bottom and inside faces on the narrow
sides as shown in F2.1 and F2.2. Loosely attach with two G3 (with LW2 and FW12) per mount so they connect to
the TN2. From the bottom attach with two S3 and two S12 per mount. Tighten bolts.
C: Flush to the bottom of (2220) place one (329) on each long side and one (459) on each short side and attach
with four S2 per plinth. Rounded edges on top. (F2.1, F2.2 and F2.3)
D: Repeat Steps A - C three more times to make four Post Assemblies.
Step 2: Post Assemblies
Wood Parts
F2.1
4 x (2220) 6 x 7 Post
8 x (459) Plinth
8 x (329) Long Plinth
Top
Bottom
(2220)
F2.2
F2.3
Rounded Edge on Top
Hardware
Wide Side
Narrow Side
(459)
(329)
S2
(x4 per Plinth)
Post Mount
S12
(459)
(329)
Post
Mount
8 x Post Mount
TN2
G3
FW12
S3
LW2
64 x #8 x 1-1/2” Wood Screw
S2
8 x 5/16” T-Nut
TN2
16 x #10 x 1-1/4” Pan Screw
S12
8 x 5/16 x 1-1/4” Hex Bolt
G3
8 x 5/16” lock washer
LW2
8 x 1/4 - 5/16” large washer
FW12
16 x #8 x 2-1/2” Wood Screw
S3
(2220)
Components
