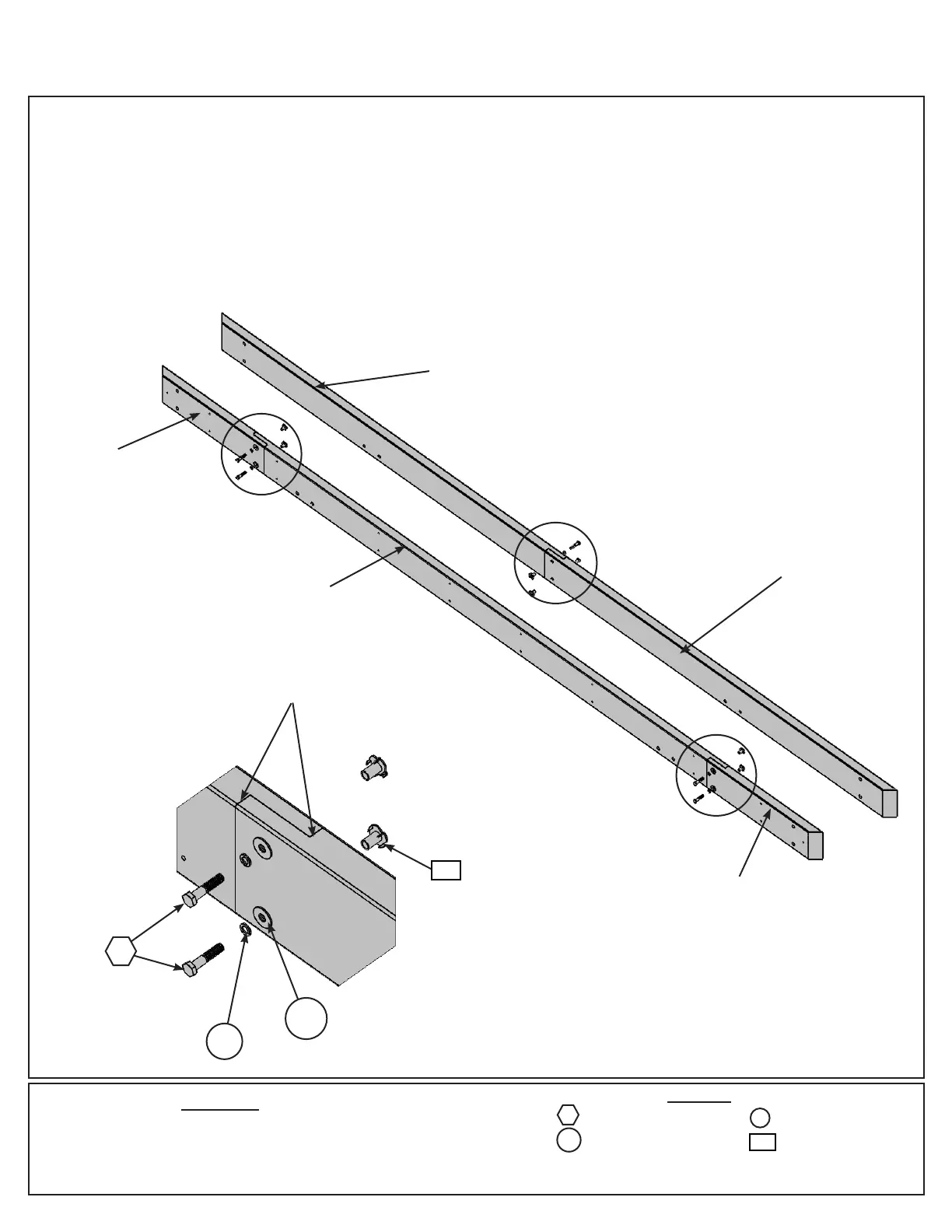

Step 3: Short Beam Assembly
Part 1
Hardware
Wood Parts
A: Connect one (2201) and one (2202) using two G3 (with LW2, FW12 and TN2) as shown in F3.1 and F3.2.
B: Connect one (2198) to each end of one (2196) using two G3 (with LW2, FW12 and TN2) per end as shown in
F3.1 and F3.2.
C: Repeat Steps A and B to make two Short Beam L-R Assemblies and two Short Beam End Assemblies.
(2201)
4 x (2198) Beam End - Short
2 x (2196) Beam Center - Short
2 x (2201) Beam Left - Short
2 x (2202) Beam Right - Short
F3.1
F3.2
Tight
(2202)
(2196)
(2198)
(2198)
Make sure bolt heads
are on the outside of
each Beam Assembly
G3
LW2
TN2
FW12
G3
12 x 5/16 x 1-1/4” Hex Bolt
LW2
12 x 5/16” lock washer
FW12
12 x 1/4-5/16” large washer
TN2
12 x 5/16” t-nut
