Hardware
F3.3
Short Beam
End Assembly
F3.4
Flush
Short Beam L-R
Assembly

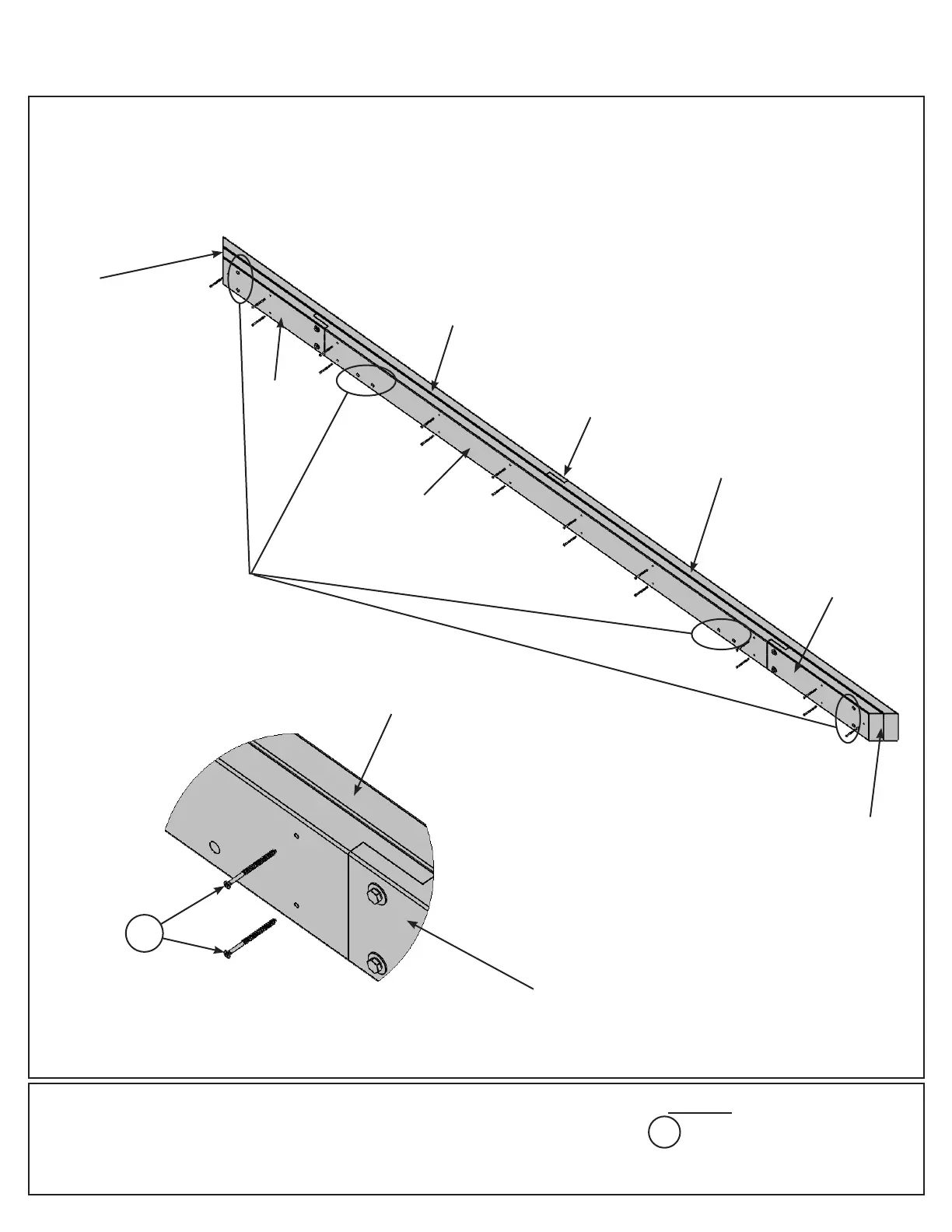

D: Place one Short Beam L-R Assembly tight to one Short Beam End Assembly so the ends are ush. Match
the bolt holes in each (2198) with the bolt holes in (2201) and (2202). Attach with 18 S35. (F3.3 and F3.4)
E: Repeat Step D to make a second Short Beam Assembly.
Flush
Short Beam
End Assembly
Short Beam L-R
Assembly
(2201)
(2202)
(2198)
Match bolt
holes
Step 3: Short Beam Assembly
Part 2
(2198)
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
S35
36 x #8 x 2-1/4” Wood Screw
S35
