17 support@yardistrystructures.com
Step 4: Long Beam Assembly
Part 1
A: Connect one (2199) and one (2200) using two G3 (with LW2, FW12 and TN2) as shown in F4.1 and F4.2.
B: Connect one (2197) to each end of one (2195) using one G3 (with LW2, FW12 and TN2) in the top holes per
end as shown in F4.1 and F4.2.
C: Repeat Steps A and B to make a second Long Beam L-R Assembly and a second Long Beam End Assembly.
HardwareWood Parts
4 x (2197) Beam End - Long
2 x (2195) Beam Center - Long
2 x (2199) Beam Left - Long
2 x (2200) Beam Right - Long

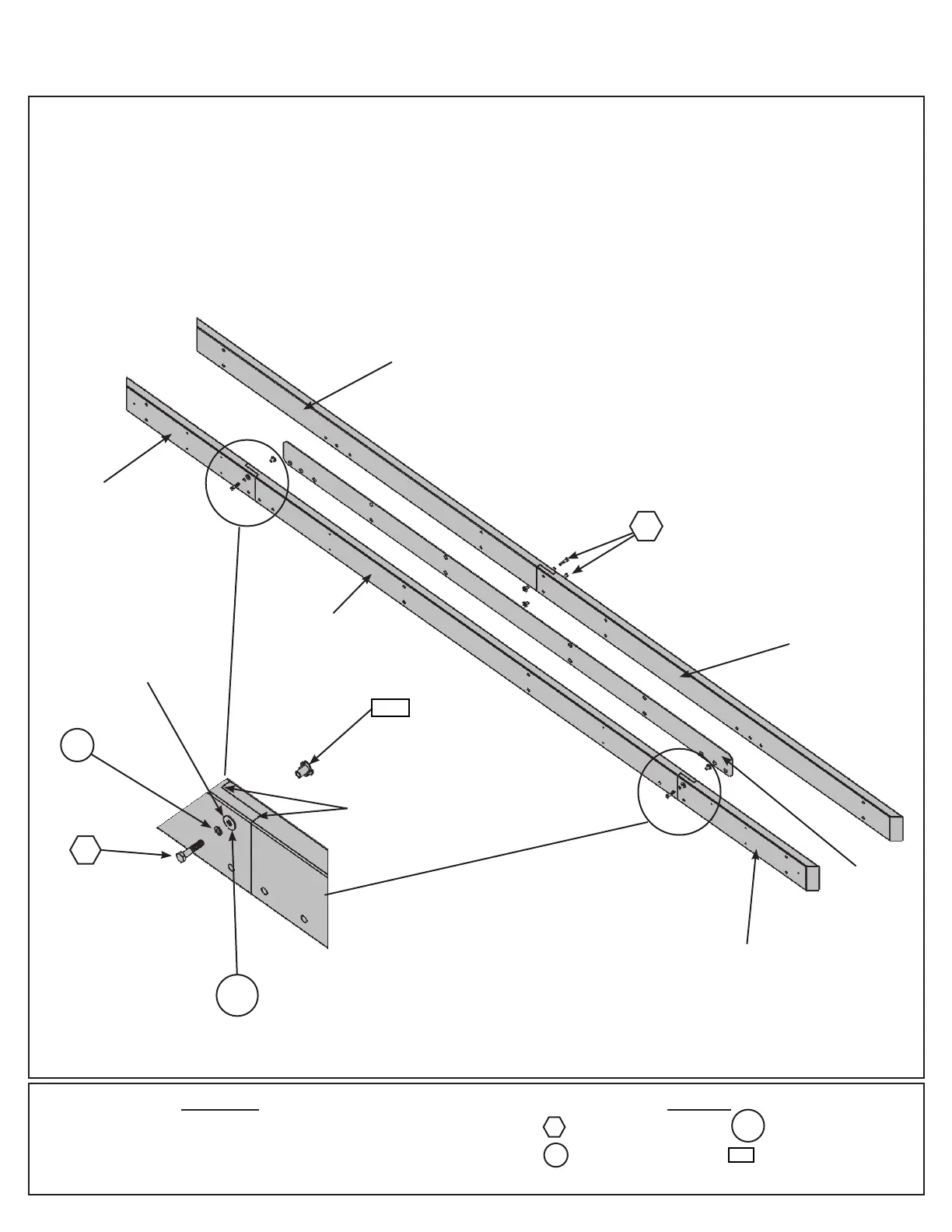

F4.1
F4.2
Tight
(2199)
(2200)
(2195)
(2197)
(2197)
Use top
holes
See Part 2
for this piece
Make sure bolt heads
are on the outside of
each Beam Assembly
TN2
FW12
LW2
G3
G3
8 x 1/4-5/16” large washer
FW12
8 x 5/16” lock washer
LW2
8 x 5/16 x 1-1/4” Hex Bolt
G3
8 x 5/16” t-nut
TN2
