Hardware
D: Place one Long Beam Insert in between one Long Beam L-R Assembly and one Long Beam End Assembly
then t tight together so the beam assembly ends are ush. Match the bolt holes and wood screw pilot holes in
both beam assemblies and Long Beam Insert. (F4.3, F4.4 and F4.5)
E: Attach beam assemblies and Long Beam Insert together with six G8 (with LW2, FW12 and TN2) and 14 x
S35. (F4.5 and F4.6)
F: Repeat Steps D-E make a second Long Beam Assembly.

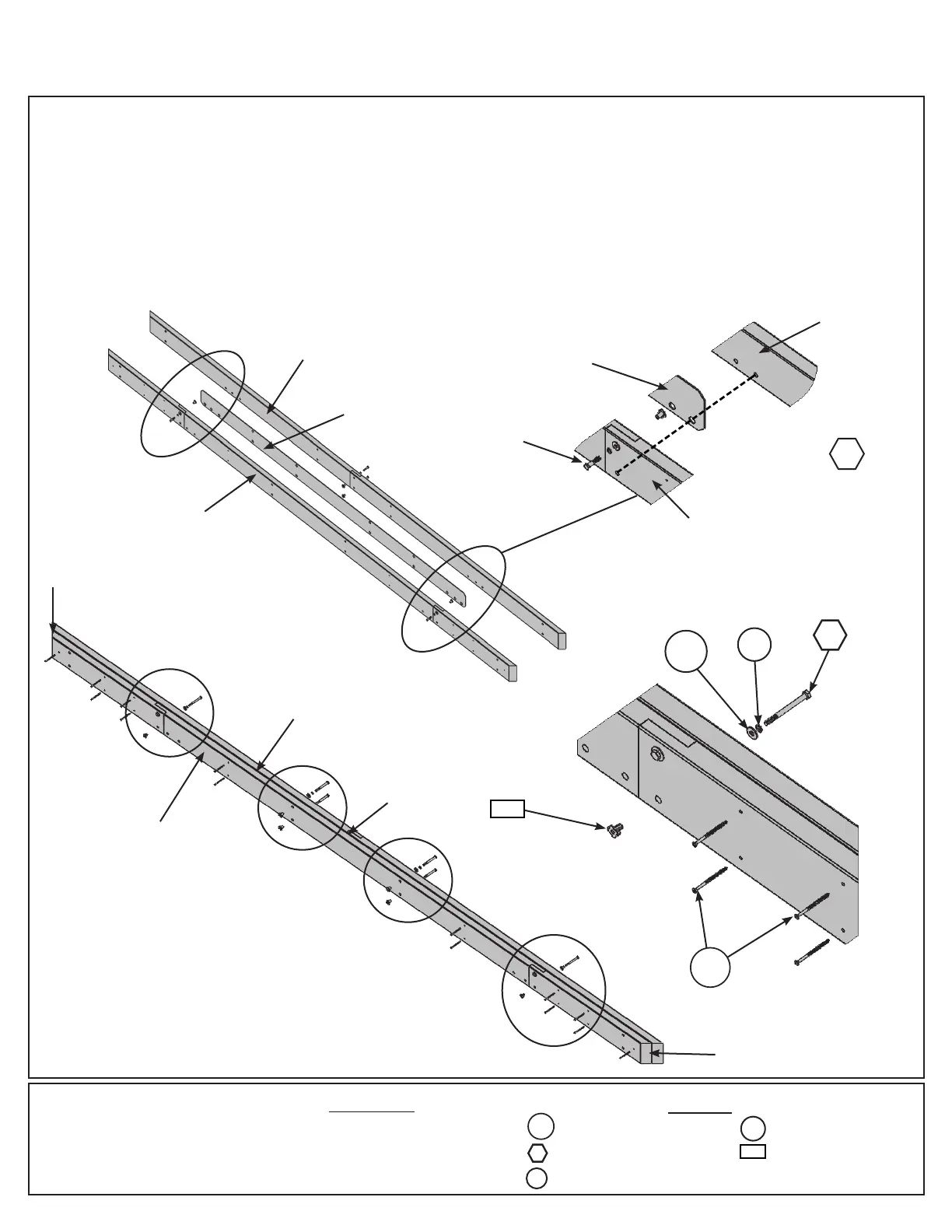

Step 4: Long Beam Assembly
Part 2
Align holes in all
3 pieces with
Long Beam
End Assembly
Long Beam L-R
Assembly
Long Beam
Insert
Long Beam
End Assembly
Long Beam L-R
Assembly
Long Beam
Insert
F4.4
F4.3
Flush
Flush
Long Beam
End Assembly
Long Beam L-R
Assembly
Long Beam
Insert
F4.5
F4.6
Components
2 x Long Beam Insert
This bolt was
previously installed
in Step 4, Part 1B
Notice the side the bolts
and screws are installed in
F4.3, F4.5 and F4.6. Bolts
are on the opposite side of
the screws
FW12
LW2
G8
TN2
S35
S35
28 x #8 x 2-1/4” Wood Screw
12 x 5/16 x 2-1/2” Hex Bolt
G8
12 x 5/16” lock washer
LW2
12 x 1/4-5/16” large washer
FW12
12 x 5/16” t-nut
TN2
G10
