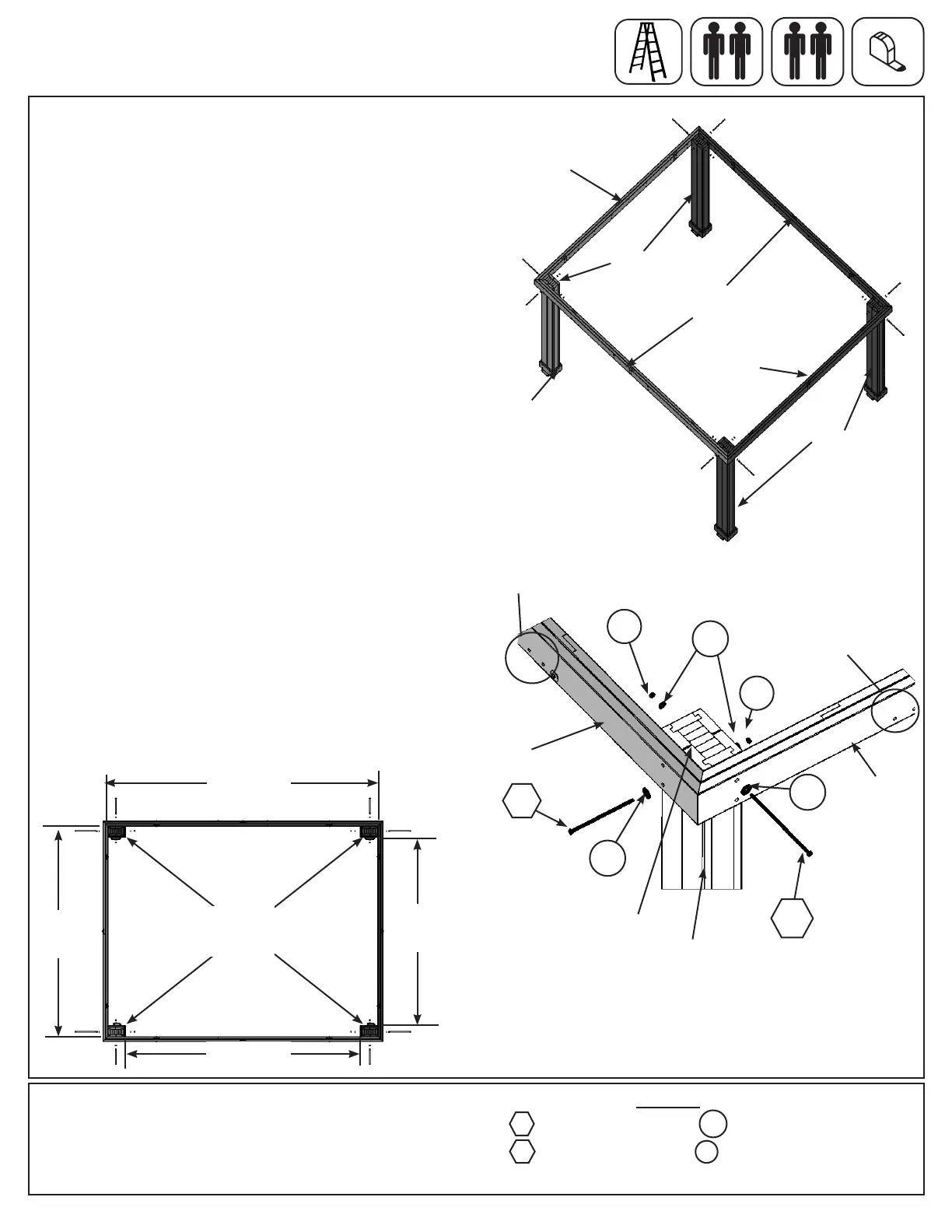

Step 5: Frame Assembly and Anchoring
Part 1
F5.1
A: Move your Post Assemblies to the nal location.
Make sure the ground is at and level before
continuing assembly.
B: With one person at each Post stand two
complete Post Assemblies. A third person places
one Long Beam Assembly against the outside of
two Posts, ush to the tops and outside corners.
Notice bolt hole orientation on the Long Beam
Assembly and the long side of the Post Assembly
is along the Long Beam Assembly. A fourth person
attaches Beam to Post with one G18 (with two
FW11 and one LN3) per Post. The distance from
the outside of one Post to the outside of the second
Post should be 12 ft 10-3/8 in (3.92 m). (F5.1, F5.2
and F5.3)
C: Place one Short Beam Assembly against the
outside of two Posts, ush to the tops and outside
corners and tight to Long Beam Assembly. Notice
bolt hole orientation on the Short Beam Assembly
and the short side of the Post Assembly is along the
Short Beam Assembly. Attach Beam to Post with
one G19 (with two FW11 and one LN3) per Post.
The distance from the outside of one Post to the
outside of the second Post should be 10 ft 10-3/8 in
(3.31 m). Continue until all four Beam Assemblies
are attached and the corners are tight together.
(F5.1 and F5.2) See F5.3 for accurate positioning
of Posts.
F5.2
Hardware
F5.3
Long Beam
Assembly
Short Beam
Assembly
Post Assembly
Post
Assembly
Post
Assembly
Inside to Inside Post
Inside to Inside Post
4.66 m
15 ft 3 5/8 in
Post to Post
Post to Post
Plinth
Note hole
orientation (on
bottom)
Short Beam
Assembly
Long Beam
Assembly
Short Beam
Assembly
3.92 m
12 ft 10 3/8 in
Post to Post
Long Side
Note hole
orientation (on
bottom)
x 3
G19
FW11
FW11
FW11
LN3
LN3
G18
16 x 3/8” large washer
FW11
8 x 3/8” lock nut
LN3
4 x 3/8 x 10” Hex Bolt
G19
4 x 3/8 x 9” Hex Bolt
G18
3.01 m
9 ft 10 3/8 in
3.56 m
11 ft 8 3/8 in
3.31 m
10 ft 10 3/8 in
