D: Make sure each corner is square and level then attach Beam Assemblies to Post Assemblies with two LS9
(with FW12) per corner. (F5.4)
E: Depending on what you are placing the Gazebo on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware

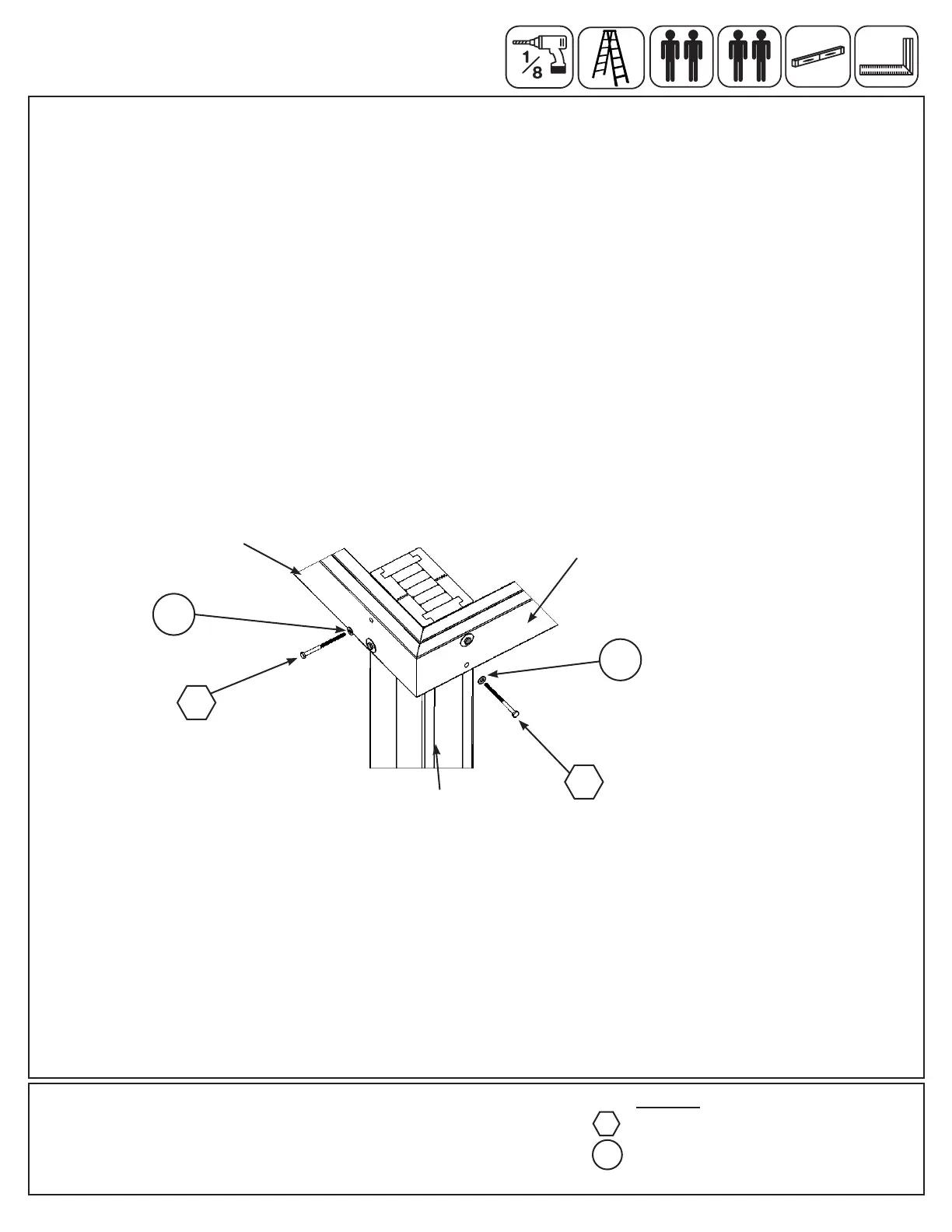

F5.4
Long Beam
Assembly
Short Beam
Assembly
Post Assembly
Step 5: Frame Assembly and
Anchoring Part 2
x 3
LS9
LS9
FW12
FW12
8 x 5/16 x 4-3/4” Lag Screw
LS9
8 x 1/4-5/16” large washer
FW12
Note: Pre-drill all pilot holes using a 1/8” drill bit before installing Lag Screws.
To Next Page
