Note: The bevelled ends on each gusset should always face away from the wood it is attaching to.
A: Make sure the assembly is still square and level then facing one Long or Short Beam Assembly place one
(2219) on the right hand side so the top ts tight to the Beam Assembly and the bottom ts tight to the Post
Assembly. Attach (2219) to Beam Assembly with two G31 (with LW2, FW12 and TN2). Attach (2219) to Post
Assembly with two LS6 (with FW12). (F6.1, F6.2 and F6.3)
B: Repeat Step A on the left hand side with one (2215). (F6.1, F6.2 and F6.3)
C: Repeat Steps A and B for each Beam Assembly/Post Assembly. (F6.1, F6.2 and F6.3)
D: At each corner, tight to the outside edges of the joining Beam Assemblies attach one Roof to Post Bracket with
two S12. (F6.3 and F6.4)

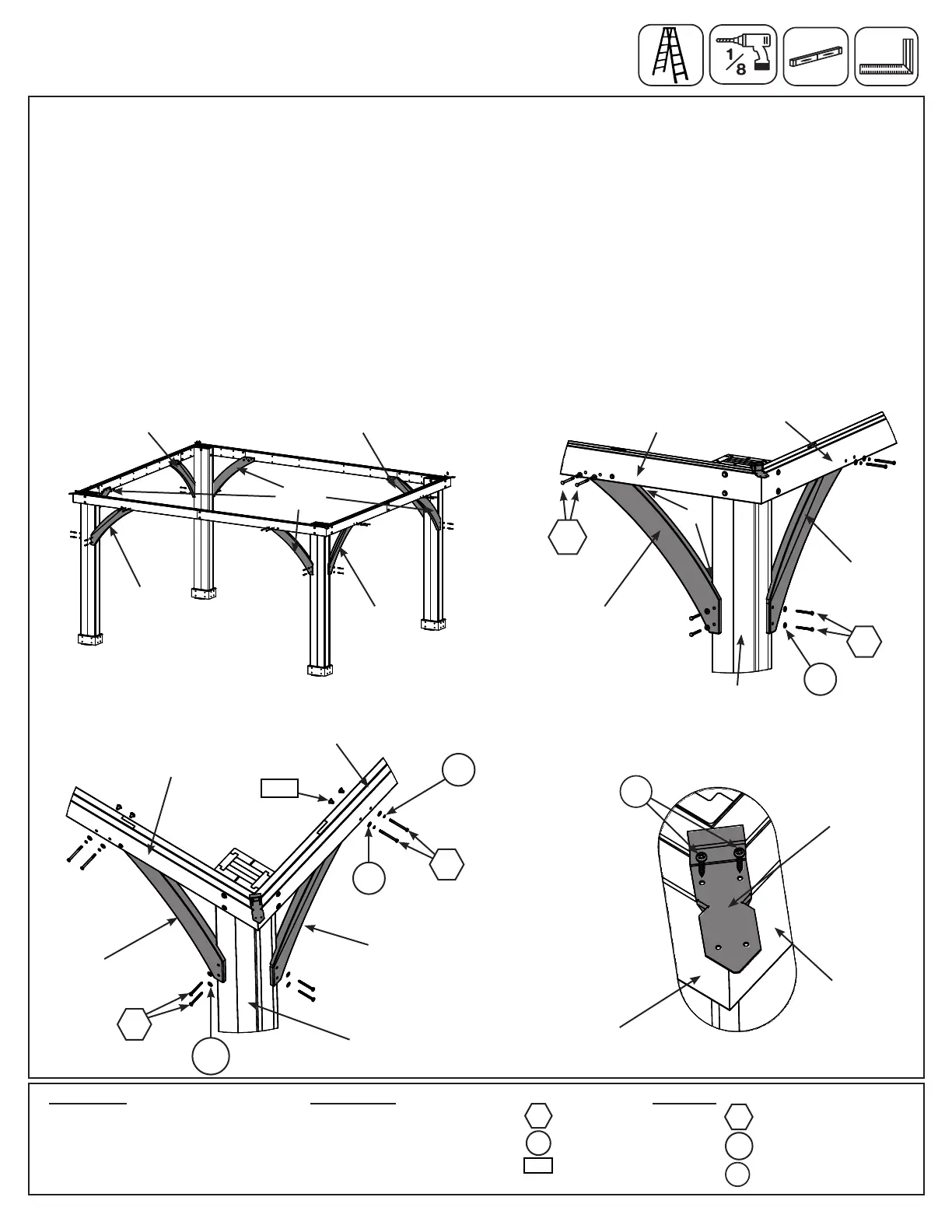

Step 6: Attach Gussets and Roof Brackets
F6.1
Tight
4 x (2219) Gusset Right
4 x (2215) Gusset Left
HardwareWood Parts
F6.2
(2219)
Roof to Post
Bracket
(2215)
Long Beam
Assembly
Post
Assembly
(2219)
(2215)
Long Beam
Assembly
Post
Assembly
Short Beam
Assembly
F6.3
F6.4
(2215)
(2215)
(2215)
(2219)
(2215)
Short Beam
Assembly
Long Beam
Assembly
Short Beam
Assembly
G31
FW12
LS6
S12
FW12
LS6
TN2
FW12
G31
LW2
LS6
16 x 5/16” x 3” Lag Screw
32 x 1/4-5/16” large washer
FW12
16 x 5/16” t-nut
TN2
16 x 5/16” x 3-1/4” Hex Bolt
G31
16 x 5/16” Lock Washer
LW2
8 x #10 x 1-1/4” Pan Screw
S12
4 x Roof to Post Bracket
Components
Note: Pre-drill all pilot holes using a 1/8” drill bit before installing Lag Screws.
