22 support@yardistrystructures.com

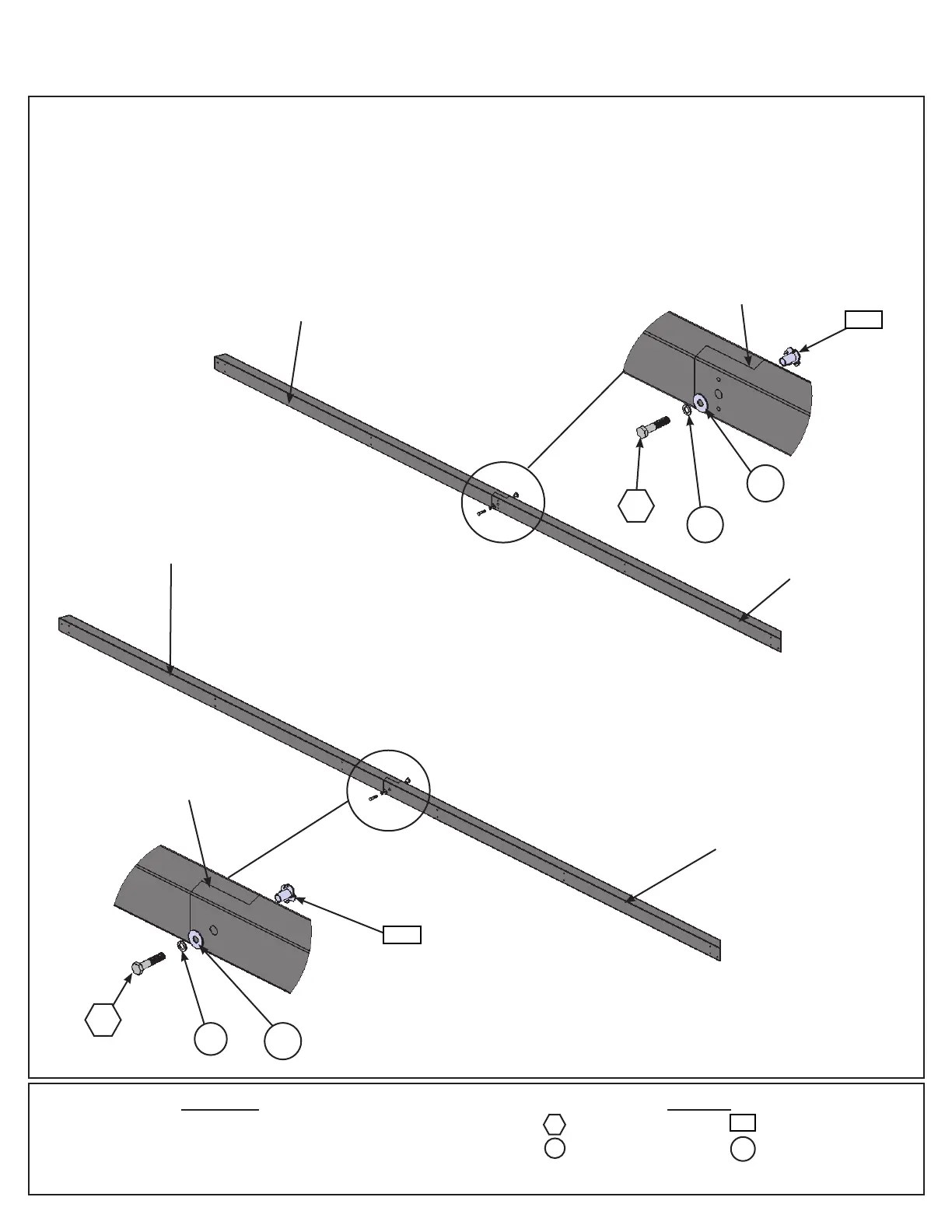

A: Tightly connect one (443) and one (444) using one G1 (with LW2, FW12 and TN2) as shown in F7.1 and
F7.2. Repeat to make a second Fascia Beam Assembly.
B: Tightly connect one (435) and one (436) using one G1 (with LW2, FW12 and TN2) as shown in F7.3 and
F7.4. Repeat to make a second Large Fascia Beam Assembly.
Step 7: Fascia Beam Assemblies
F7.1
F7.2
HardwareWood Parts
2 x (443) Fascia Left
(444)
(443)
(436)
Tight
F7.3
F7.4
(435)
Tight
2 x (436) Fascia Right - Large Roof
2 x (435) Fascia Left - Large Roof
2 x (444) Fascia Right
FW12
LW2
G1
LW2
TN2
TN2
FW12
G1
4 x 5/16” t-nut
TN2
4 x 5/16 x 1-1/2” Hex Bolt
G1
4 x 1/4-5/16” large washer
FW12
4 x 5/16” lock washer
LW2
