A: On each side of one (2206) place one (2203) and one (2204) so the tops and edges are ush and notches
are facing up, then attach with two S11 per side. (F8.1 and F8.2)
B: Place Fascia Beam Assembly from Step 7A on the bottom of (2203), (2204) and (2206) so the sides are
ush then attach with two S35 at each end and two in the middle. (F8.1, F8.3 and F8.4)
C: Repeat Steps A and B to make a second Small Roof Rafter Assembly.
Hardware
Wood Parts
(x 6 per
Fascia Beam
Assembly)
(2206)
Fascia Beam
Assembly

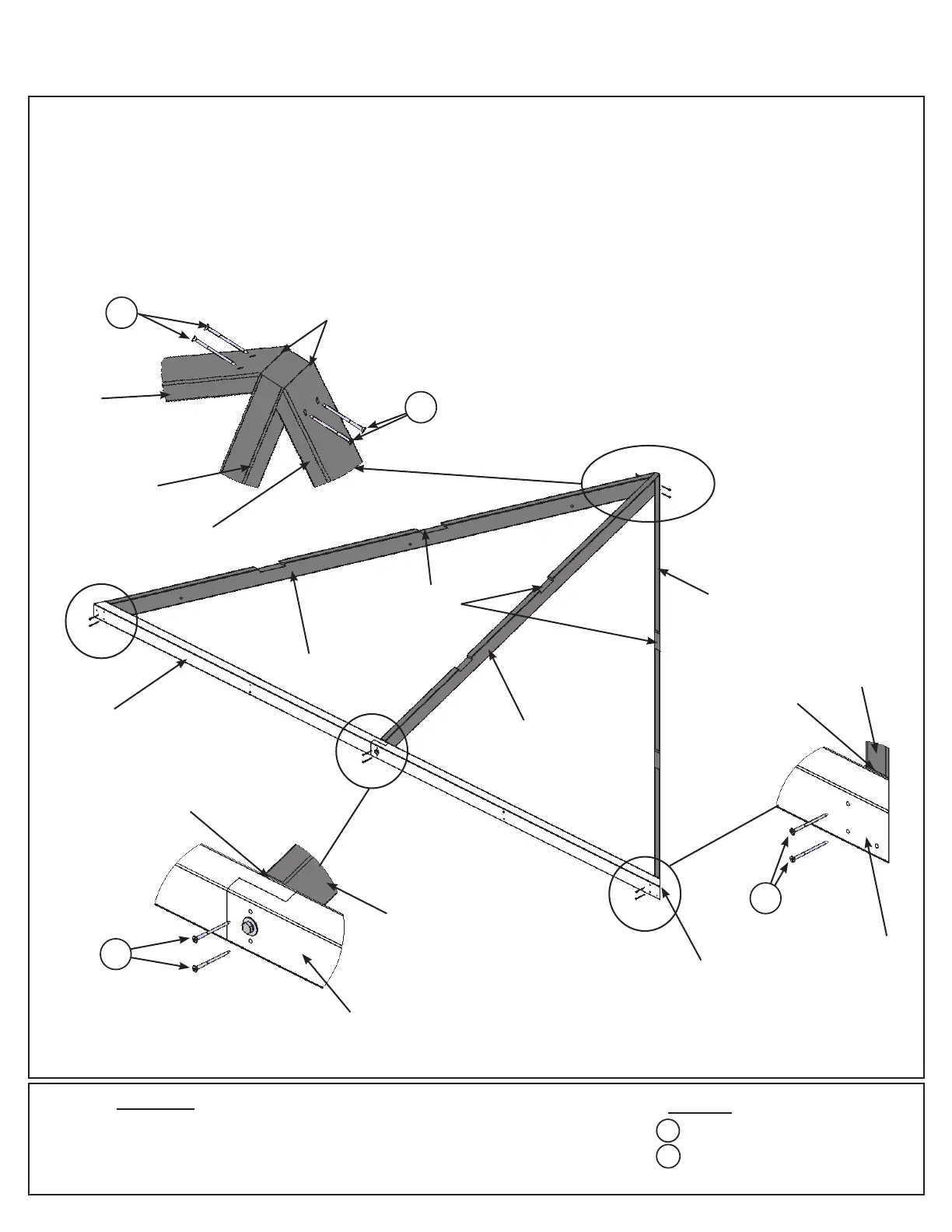

Step 8: Small Roof Rafter Assembly
Part 1
F8.1
F8.3
F8.4
Note notches
facing up
Flush
Fascia Beam
Assembly
Fascia Beam
Assembly
Flush
(2206)
Flush
F8.2
(2203)
(2203)
(2204)
(2204)
Note angle
side up
(2206)
(2204)
2 x (2206) Rafter
2 x (2204) Corner Rafter - Right
2 x (2203) Corner Rafter - Left
S35
S11
S35
12 x #8 x 2-1/4” Wood Screw
S35
S11
8 x #8 x 2” Wood Screw
S11
