HardwareWood Parts
x 20 per assembly
F8.5

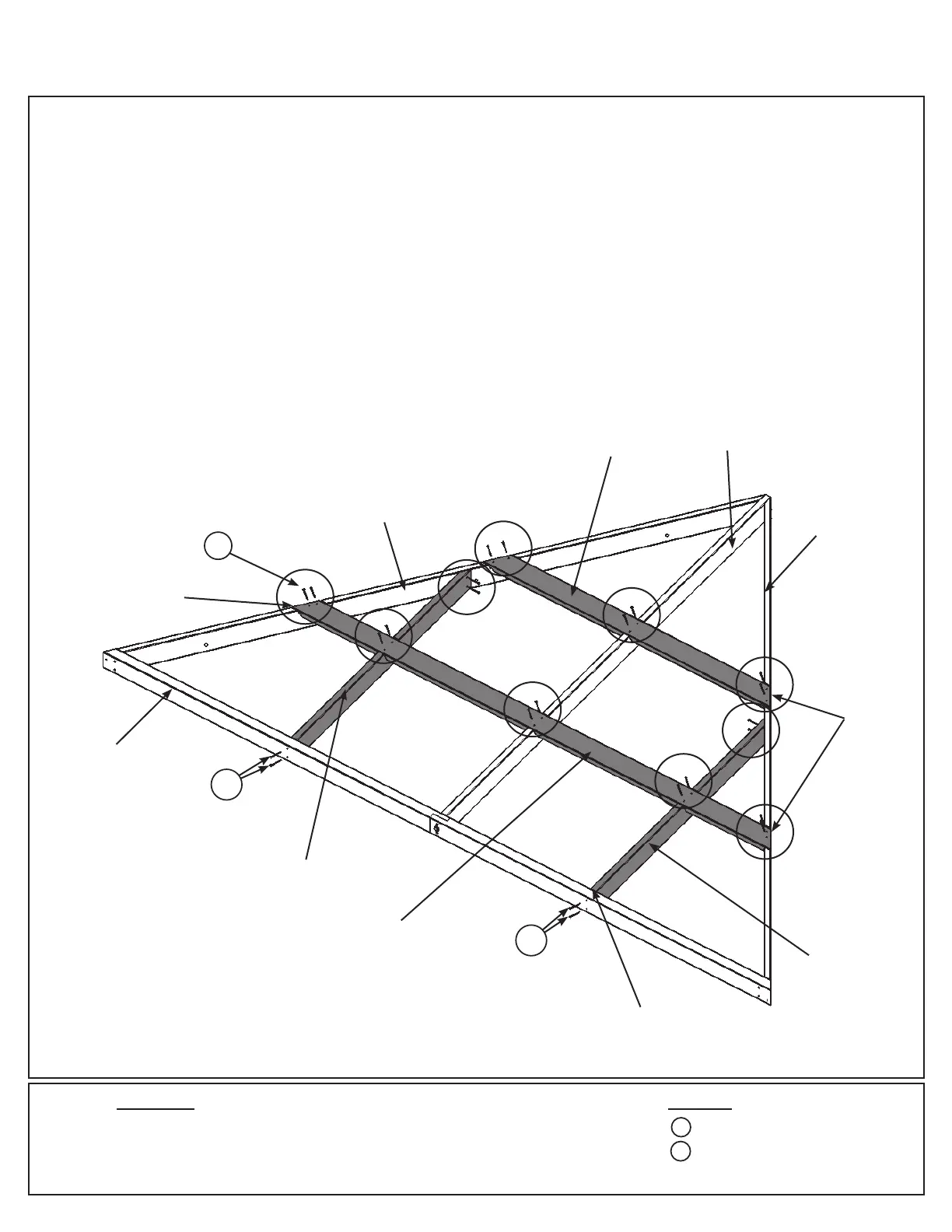

Step 8: Small Roof Rafter Assembly
Part 2
2 x (2209) Strap - Short
D: Place one (2209) in the notches of (2203), (2204) and (2206) so the ends do not overhang the outside
edges of the outside boards then attach with six S2. (F8.5)
E: Place one (2207) in the notches of (2203), (2204) and (2206) so the ends do not overhang the outside
edges of the outside boards. Do not attach yet. (F8.5)
F: Place one (2212) and one (2213) in the notches of (2207) and attach as shown in F8.5 with four S2 and two
S35 per board.
G: Attach (2207) to (2203), (2204) and (2206) with six S2. (F8.5)
H: Complete Steps D, E, F and G for both Small Roof Rafter Assemblies.
(2206)
No
Overhang
Fascia Beam
Assembly
Flush
(2203)
(2204)
Flush
(2209)
(2213)
(2207)
(2212)
2 x (2213) Rafter Short - Left
2 x (2212) Rafter Short - Right
2 x (2207) Strap
S2
S35
S35
8 x #8 x 2-1/4” Wood Screw
S35
40 x #8 x 1-1/2” Wood Screw
S2
