Hardware
Centered and ush to
bottom of rafters
Roof to Beam
Bracket
F9.1
F9.2

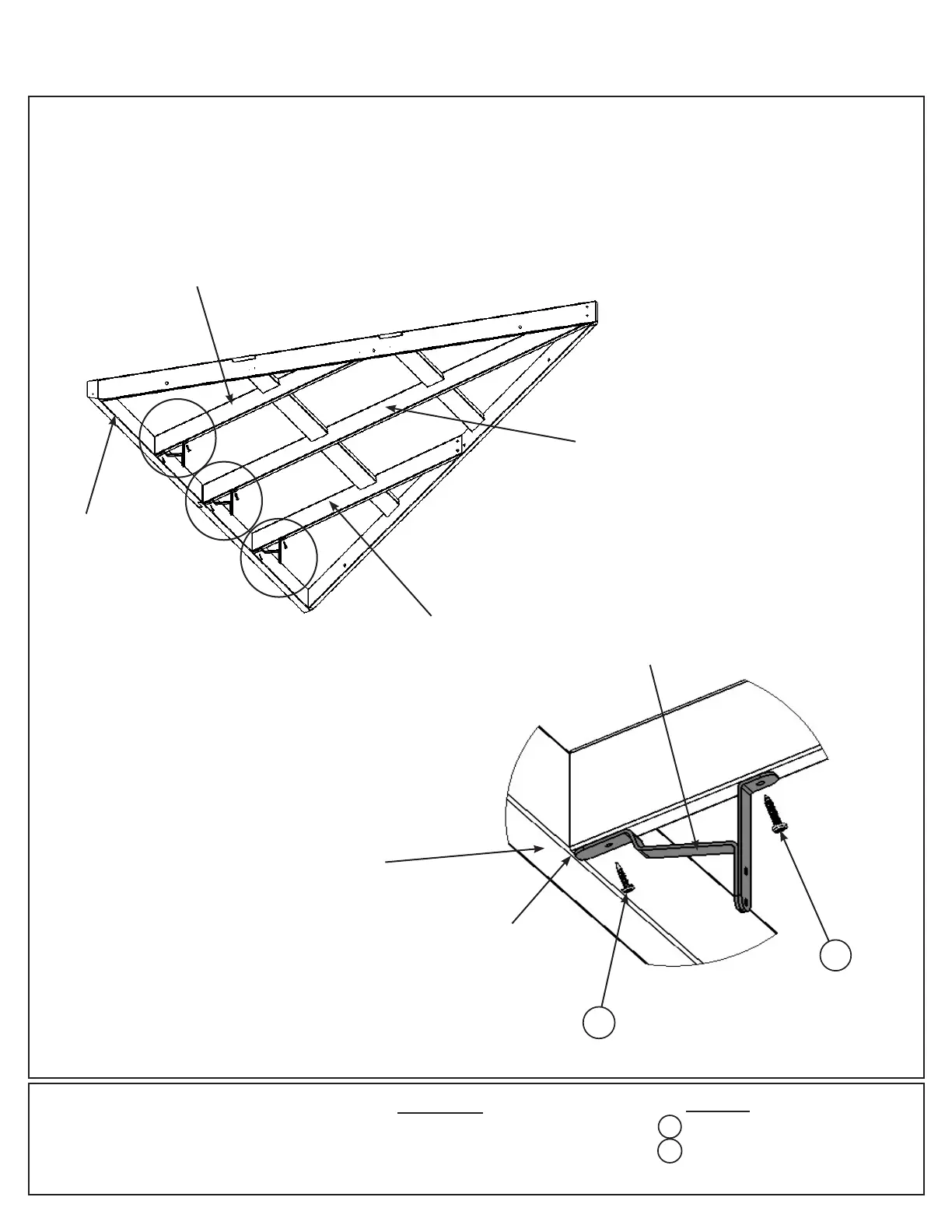

A: On the back of one Small Roof Rafter Assembly, centered and ush to the bottom of (2212), (2213) and (2206)
attach one Roof to Beam Bracket per board with one S34 in the top hole and one S10 in the bottom hole per
bracket. Make sure to only install on one Small Roof Rafter Assembly, the second will not have brackets. (F9.1
and F9.2)
Step 9: Attach Roof to Beam Brackets
Small Roof Rafter Assembly
3 x #8 x 1” Pan Screw
3 x #12 x 1-1/4” Pan Screw
Back View
(2206)
(2213)
(2212)
Fascia Beam
Assembly
Fascia Beam
Assembly
S34
S10
S10
S34
3 x Roof to Beam Bracket
Components
To Next Page
