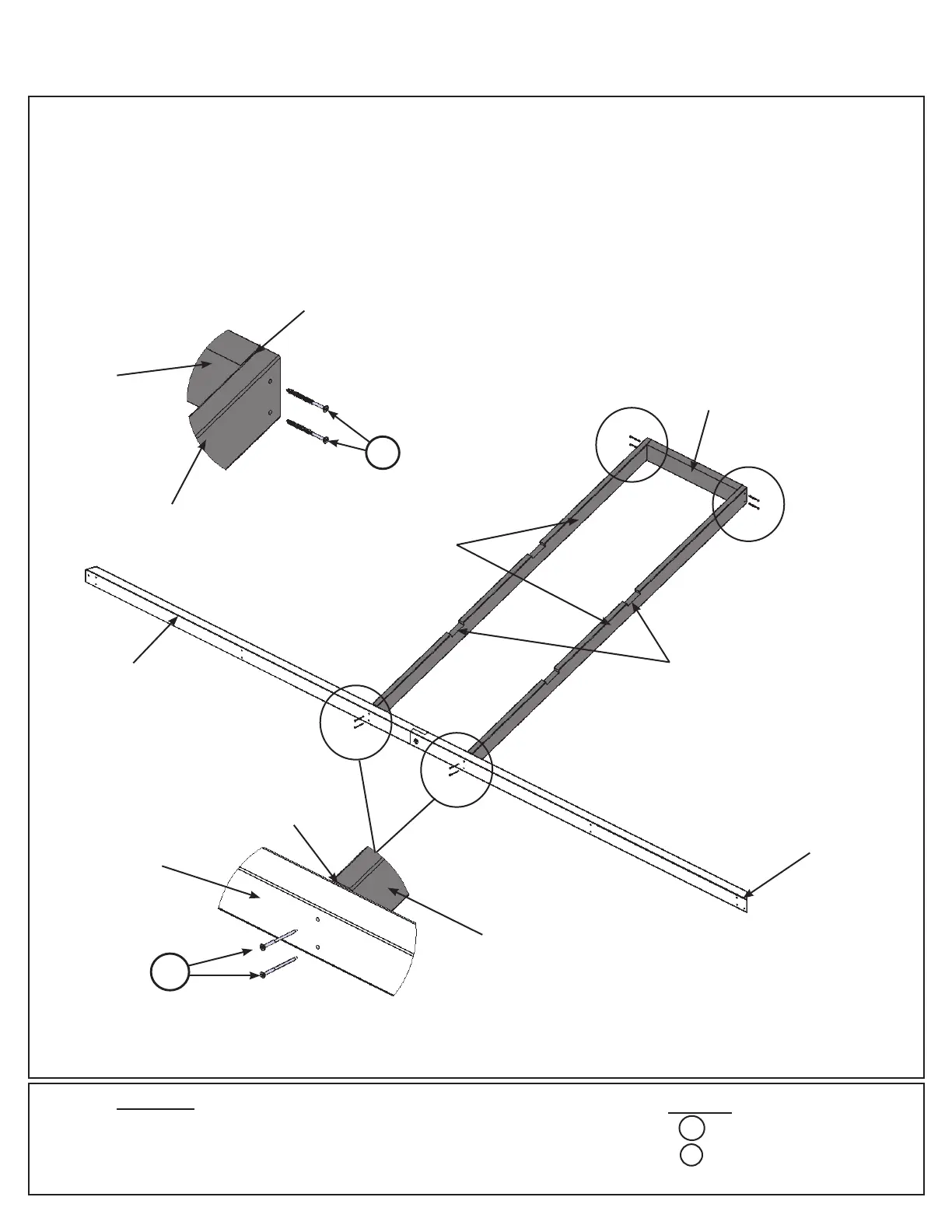

A: On each side of one (434) place one (2206) so the tops and edges are ush and notches are facing up, then
attach with two S3 per side. (F10.1 and F10.2)
B: Place Large Fascia Beam Assembly from Step 7B on the bottom of the (2206)s so the sides are ush and
holes are centered on the (2206) then attach with two S35 per (2206). (F10.1 and F10.3)
C: Repeat Steps A and B to make a second Large Roof Rafter Assembly.
Hardware
Wood Parts
(2206)
Step 10: Large Roof Rafter Assembly
Part 1
F10.1
4 x (2206) Rafter
F10.3
Note notches
facing up
Large Fascia
Beam Assembly
Large Fascia
Beam Assembly
Flush
(2206)
Flush
F10.2
Note angle
side up
(434)
(2206)
(434)
2 x (434) Top
S35
8 x #8 x 2-1/4” Wood Screw
S35
S3
8 x #8 x 2-1/2” Wood Screw
S3
