27 support@yardistrystructures.com
HardwareWood Parts
F10.5
2 x (2203) Corner Rafter - Left

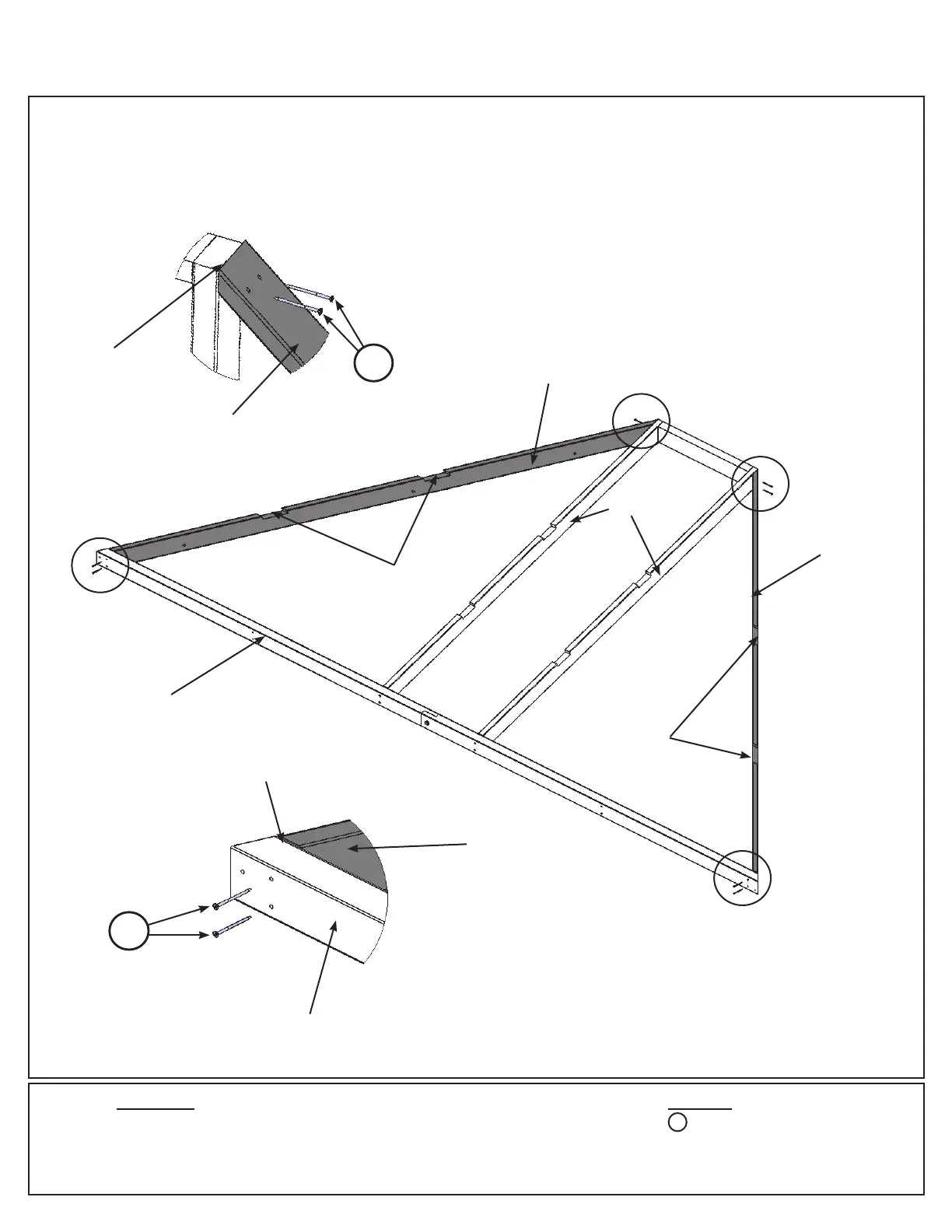

D: Beside each (2206) place one (2203) and one (2204) so the tops and edges are ush, notches are facing
up, and the bottom edges are ush to Large Fascia Beam Assembly. Attach with two S35 at the top and bottom
of the rafters per side. (F10.4, F10.5 and F10.6)
E: Repeat Step D for the second Large Roof Rafter Assembly.
(2206)
Large Fascia
Beam Assembly
Flush
(2204)
Step 10: Large Roof Rafter Assembly
Part 2
F10.4
(2203)
Large Fascia
Beam Assembly
Note notches
facing up
Note notches
facing up
Flush
F10.6
2 x (2204) Corner Rafter - Right
S35
S35
16 x #8 x 2-1/4” Wood Screw
S35
(2204)
(2203)
